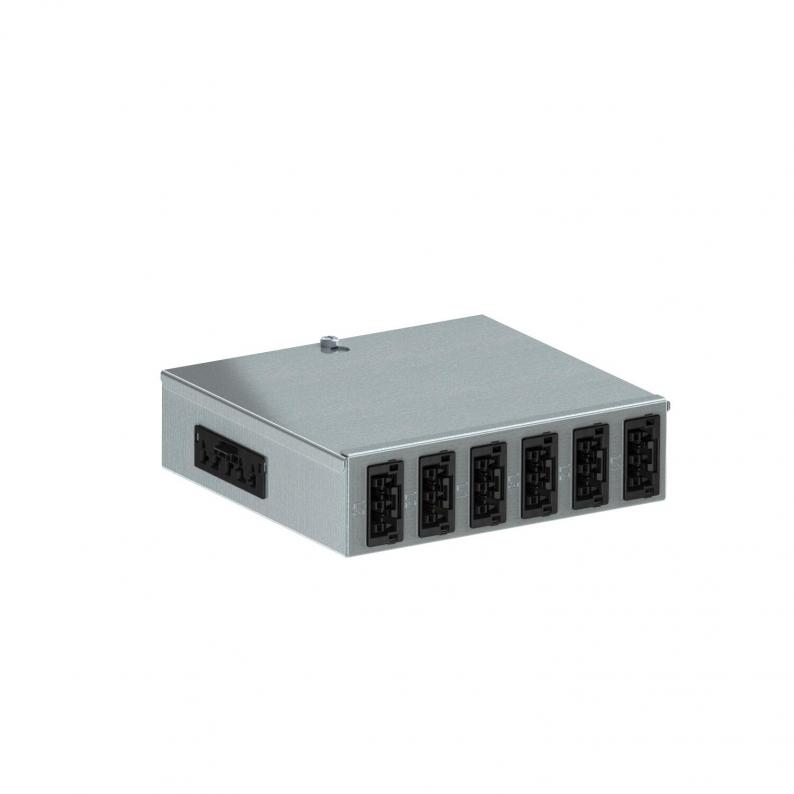

UVS energy distributor with plug connection, normal circuit

Type UVS-WIN 6S
|
Item no. 6107986
|
EAN 4012196688173
Item no. / Type
6107986 / UVS-WIN 6S

Smallest selling unit: 1 piece

piece

Description

Input: 1x three-phase circuit using a self-locking plug connector, 5-pin, type WINSTA® MIDI (connector part).

Output: 6 self-locking plug connectors, 3-pin, in black, 25 A, type WINSTA® MIDI (socket part: 2x L1, 2x L2, 2x L3).

Internal wiring: PVC non-sheathed cable H07V-U2.5.
Input: 1x three-phase circuit using a self-locking plug connector, 5-pin, type WINSTA® MIDI (connector part).

Output: 6 self-locking plug connectors, 3-pin, in black, 25 A, type WINSTA® MIDI (socket part: 2x L1, 2x L2, 2x L3).

Internal wiring: PVC non-sheathed cable H07V-U2.5.
  • Communautés Européennes, AB Yönetmelikleri uyarınca AB Uygunluk Beyanı
  • CO₂ footprint (PCF)
  • Packaging without plastic
  • Packaging made entirely from recycled cardboard

Technical data

Dimensions

Length196 mm
Width149 mm
Height46 mm

Technical data

No. of outlets6
Plug connector system, system-specificyes
Input5-pole
Connection typePlug-in system
Number of input circuits1
Colour of the plug connector systemBlack
Cross-section of the connection cable4 mm²
Boyut150x163x46
MaterialSteel

Environmental Data

Packaging made completely from recycled cardboard.yes
Packaging without plasticyes
CO2 ayak izi (GWP) beşikten kapıya2,2154 kg CO2e / 1 Piece
