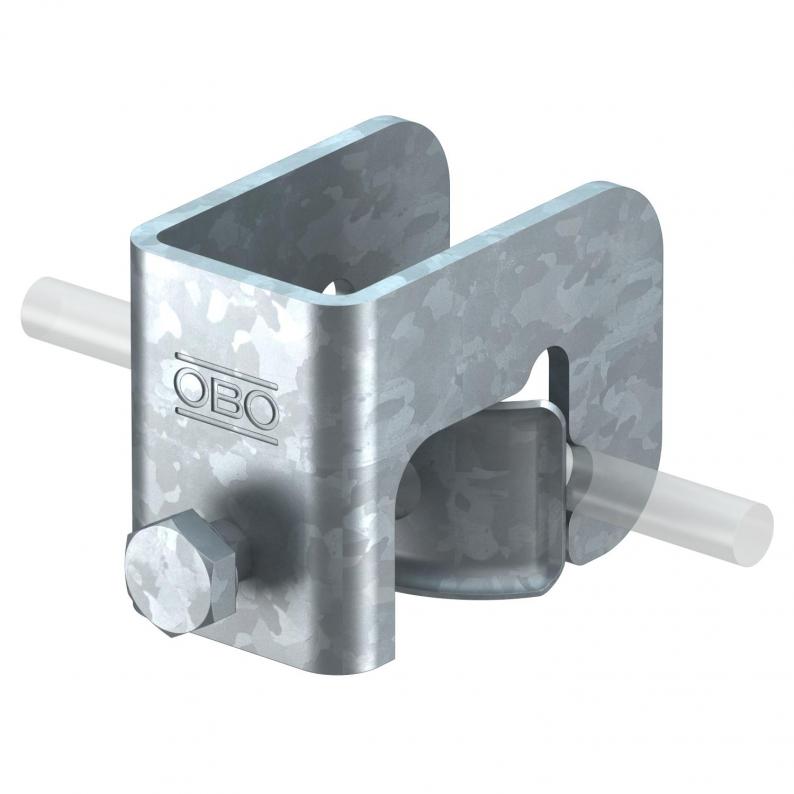

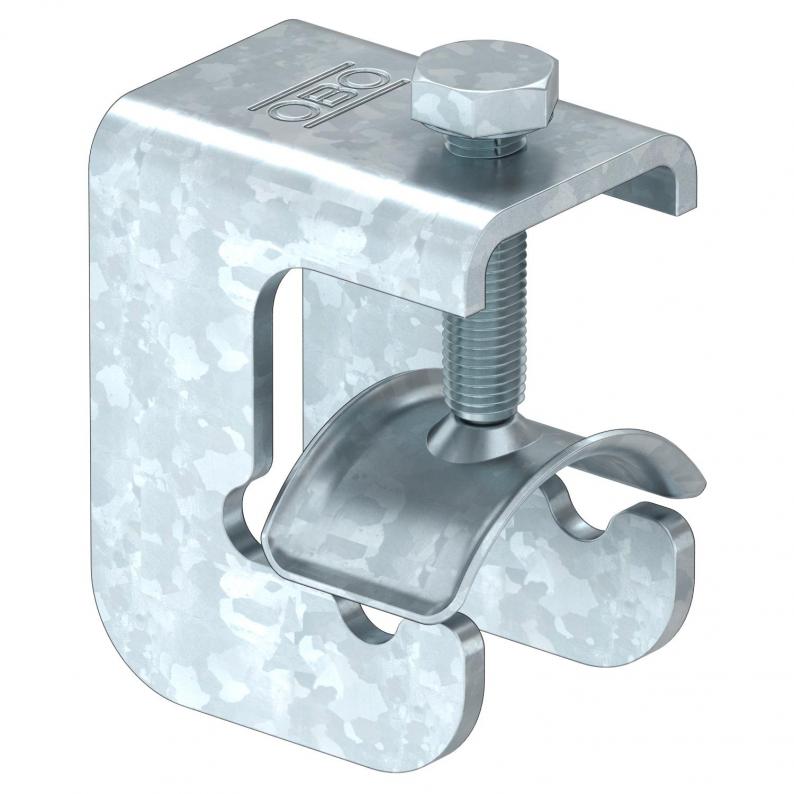

VARIO earthing terminal for large reinforced steels

VARIO earthing terminal for large reinforced steels

Type 1814 FT D37
|
Item no. 5014469
|
EAN 4012196391059
Show all variants
Item no. / Type
Uyumluluk

Smallest selling unit: 25 piece

piece

Description

1814/...: Bağlantı klemensi

• 8 - 14 mm çapındaki inşaat demirleri ve FL 30x5 için
• Uzun, açık delik sayesinde kolay montaj
• Yanlamasına asılması mümkündür
  • Yıldırım akımı test edilip onaylandı
  • CO₂ footprint (PCF)
  • Packaging without plastic
  • Packaging made entirely from recycled cardboard

Technical data

Technical data

Type of fastening screwHexagonal bolt
Type of connectorMultipurpose connection clamp
Suitable for connectionMiscellaneous
Earthing connection diameter20-30 mm
Lightning current carrying capacityH/100 kA
UyumlulukFL30x3-4mm / Rd 10 x Rd 16-37 mm

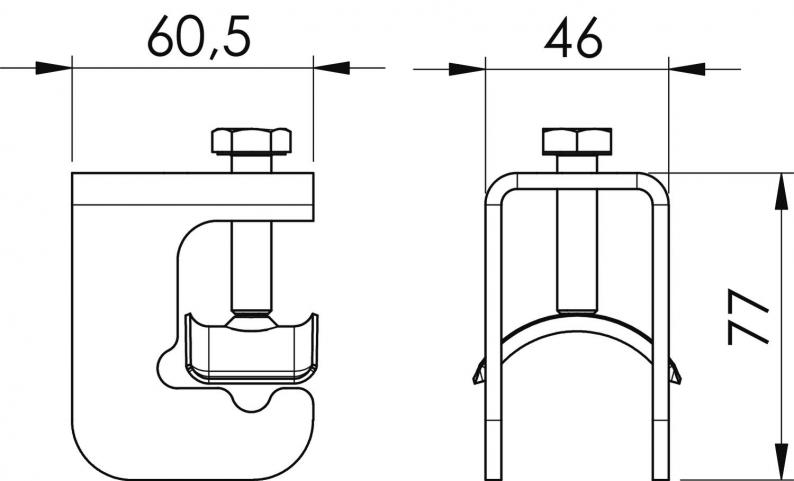

Boyut61x46x88
SurfaceHot-dip galvanised
MaterialSteel

Environmental Data

Packaging made completely from recycled cardboard.evet
Packaging without plasticevet
CO2 ayak izi (GWP) beşikten kapıya1,0841 kg CO2e / 1 Adet

Downloads

0 selected

Data sheet (1)
Catalogues & Flyers (3)
Declarations (3)
Certificates (2)
Instructions and Aid (2)
Product images (3)
3D data downloads (2)
Tender specifications (1)

Variants

1814 FT D37
Item no.
5014469
Uyumluluk
FL30x3-4mm / Rd 10 x Rd 16-37
1814 ST D37
Item no.
5014477
Uyumluluk
FL30x3-4mm / Rd 10 x Rd 16-37
