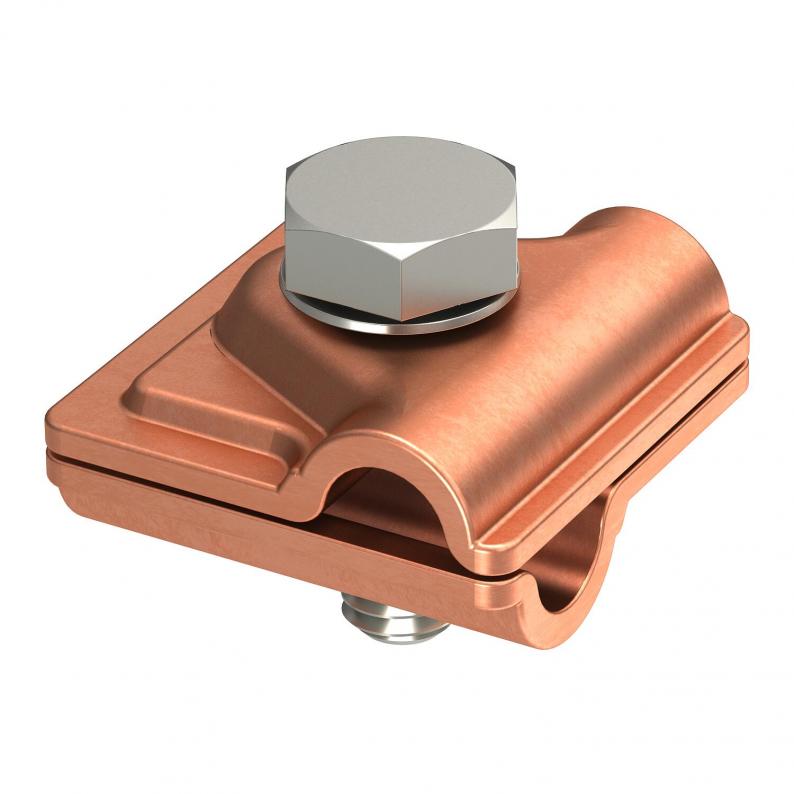

Vario quick connector Cu
Type 249 8-10 CU
|Item no. 5311527
|EAN 4012195417798
Item no. / Type
5311527 / 249 8-10 CU
Uyumluluk
Rd 8-10 mm
Smallest selling unit: 10 piece
10piece
piece
Description

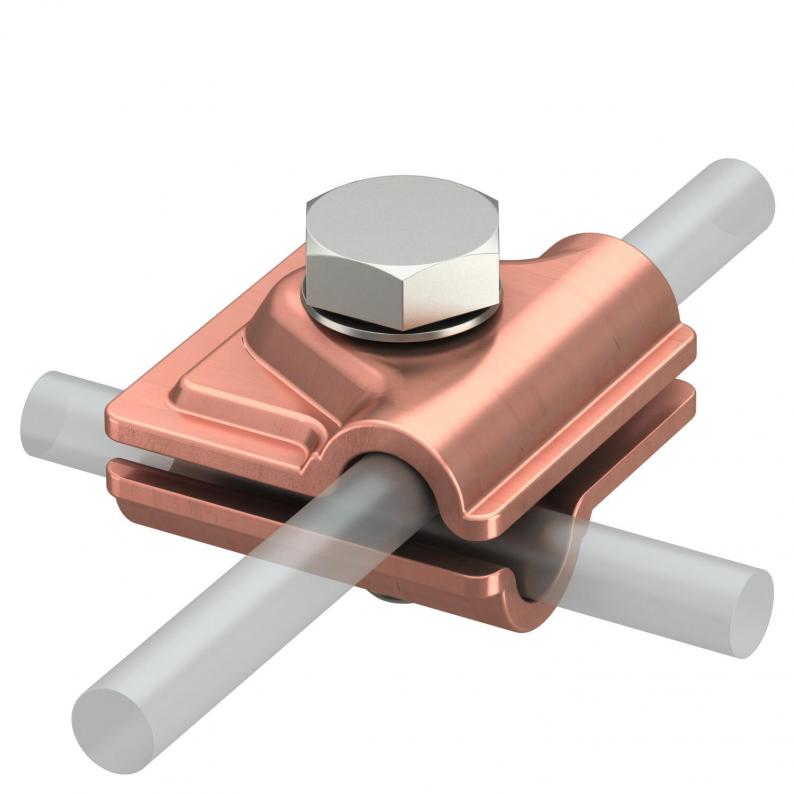

• For T, cross and parallel connectors
• Quick installation using hexagonal bolt M10 x 30, high-grade stainless steel
• Conforms to the requirements according to DIN VDE 0185-305 (IEC 62305)
• Quick installation using hexagonal bolt M10 x 30, high-grade stainless steel
• Conforms to the requirements according to DIN VDE 0185-305 (IEC 62305)
Technical data
Technical data
| Ayırma plakası | no |
|---|---|
| Type of fastening screw | Hexagonal bolt |
| Type of connector | Multipurpose connection clamp |
| Suitable for connection | Round conductor Rd 8–10 / Rd 8–10 |
| Lightning current carrying capacity | H/100 kA |
| Round conductor diameter, conductor 1, min. | 8 mm |
| Round conductor diameter, conductor 1, max. | 10 mm |
| Round conductor diameter, conductor 2, min. | 8 mm |
| Round conductor diameter, conductor 2, max. | 10 mm |
| Uyumluluk | Rd 8-10 mm |
| Boyut | 40x40mm |
| Material | Copper |
Dimensions
| Dimension A | 40 mm |
|---|
Environmental Data
| Packaging made completely from recycled cardboard. | yes |
|---|---|
| Packaging without plastic | yes |
| CO2 ayak izi (GWP) beşikten kapıya | 0,5276 kg CO2e / 1 Piece |
|---|
