Wall and support bracket MWAG 12 FS

Wall and support bracket MWAG 12 FS

Type MWAG 12 11 FS
|
Item no. 6424600
|
EAN 4012196324736
Show all variants
Item no. / Type
Width
kN de F
Colour

Smallest selling unit: 1 piece

piece

Description

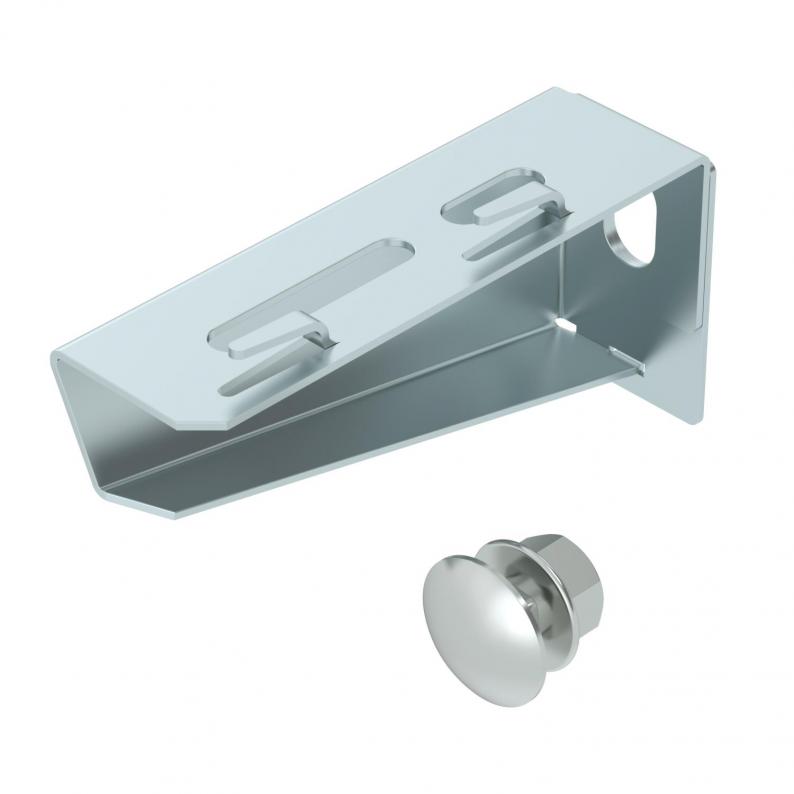

Light-duty wall and support bracket with edged design for screwless mesh cable tray fastening.

Including truss-head bolt M10 x 25 for fastening to

U supports.

  • Communautés Européennes, AB Yönetmelikleri uyarınca AB Uygunluk Beyanı
  • UKCA declaration of conformity
  • Duvar ve destek konsolu
  • U profil destek
  • U profil destek
  • U profil destek
  • Montajı kolay parça
  • Environmental Product Declaration (EPD)
  • CO₂ footprint (PCF)
  • Packaging made entirely from recycled cardboard

Technical data

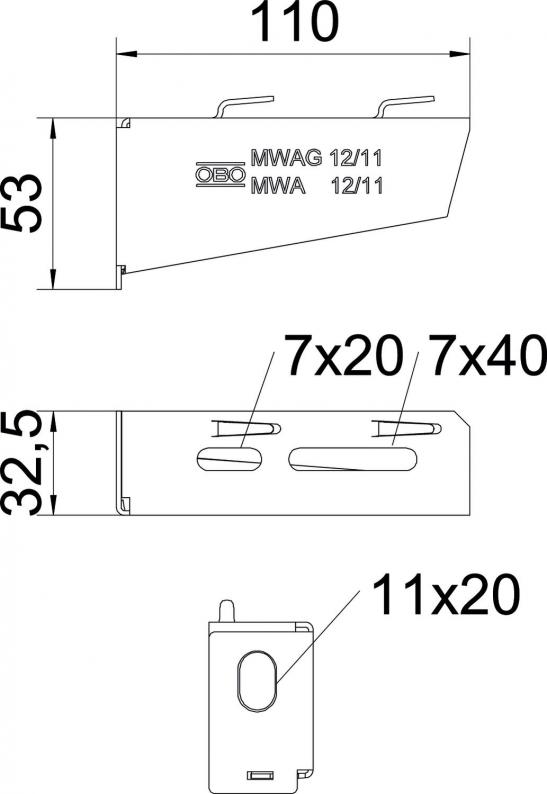

Dimensions

Length32,5 mm
Width110 mm
Height53 mm
Dimension A32,5 mm
Dimension B110 mm
Dimension H53 mm

Technical data

Maintain electrical functionsno
Paslanmaz çelik, mordanlıno
Genişlik min.100
Genişlik maks.100 mm
Açı aralığı min.90 mm
Açı aralığı maks.90 mm
Hole diameter11 mm
Version forWall and support bracket
kN de F1,2 kN
BoyutB110mm
SurfaceStrip galvanized
MaterialSteel
Colourzinc
MWAG 12 tipi konsolun yük diyagrami

Müsaade edilen konsol yükü altında konsol ucundaki eğilme

İnsan taşıma yükü hariç olmak üzere kn olarak müsaade edilen konsol yükü

mm olarak konsol uzunlukları ile yük eğrisi

Environmental Data

Packaging made completely from recycled cardboard.yes
EPD-verifiedyes
Expiry date EPD10.07.2029
Declaration number EPD EPD-KTO-17.0
Unit base EPD1 running metre + mounting system
EPD GWP (outside of the system limits)18.83 kg CO₂e
EPD GWP (disposal phase)1.97 kg CO₂e
EPD GWP (manufacturing phase)81.32 kg CO₂e
EPD standard / LCA standard (norms)DIN EN ISO 14025,EN 15804 + A2
CO2 ayak izi (GWP) beşikten kapıya0,4701 kg CO2e / 1 Piece

Accessories

Mounting accessories
Type
FRSB 6x12 F

Smallest selling unit: 100 piece

piece

Downloads

0 selected

Data sheet (1)
Catalogues & Flyers (3)
Declarations (5)
Certificates (1)
Instructions and Aid (2)
Product images (2)
3D data downloads (2)
Tender specifications (1)

Variants

Width
Colour
MWAG 12 11 FS
Item no.
6424600
Width
110
kN de F
1,2
Colour
Çinko grisi
MWAG 12 21 FS
Item no.
6424608
Width
210
kN de F
1,2
Colour
zinc
MWAG 12 31 FS
Item no.
6424616
Width
310
kN de F
1,2
Colour
Çinko grisi
MWAG 12 41 FS
Item no.
6424624
Width
410
kN de F
1,2
Colour
zinc
