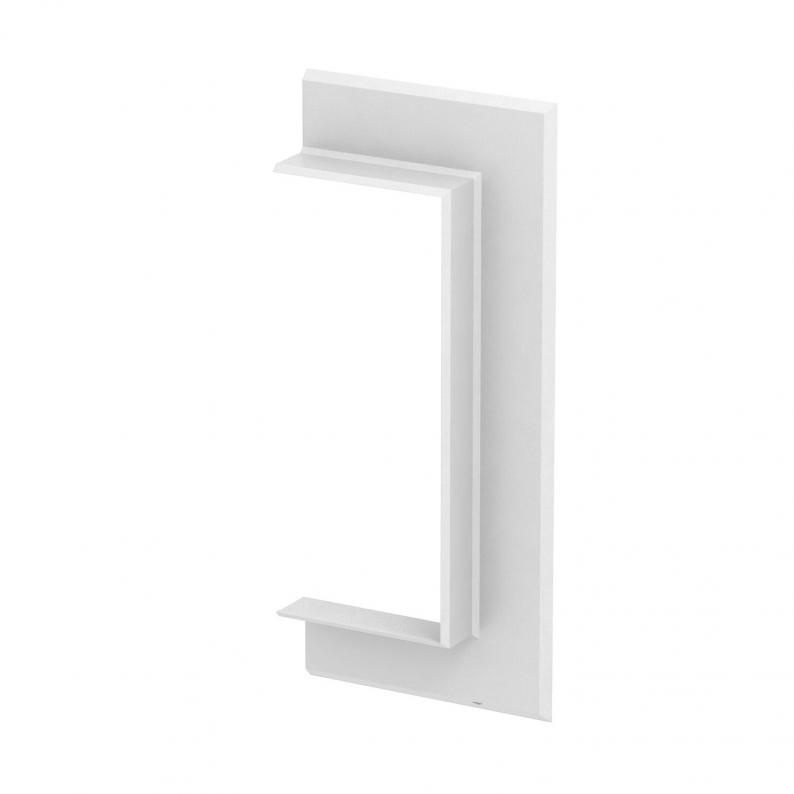

Wall end piece, open, plastic 70170

Wall end piece, open, plastic 70170

Type G-KWAO70170RW
|
Item no. 6274830
|
EAN 4012195657545
Show all variants
Item no. / Type
6274830 / G-KWAO70170RW
Width
238 mm
Height
104 mm
Colour
Pure white; RAL 9010

Smallest selling unit: 1 piece

piece

Description

Wall cover, open, to close wall penetrations during wall mounting.


  • Communautés Européennes, AB Yönetmelikleri uyarınca AB Uygunluk Beyanı
  • UKCA declaration of conformity
  • CO₂ footprint (PCF)

Technical data

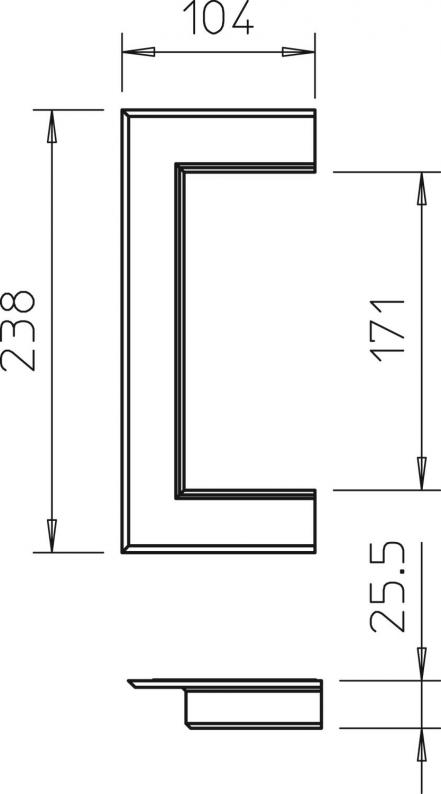

Dimensions

Length25 mm
Width238 mm
Height104 mm

Technical data

Halojen İçermezyes
Version forUniversal
Mounting type of the trunkingWall
Kanal derinliği70 mm
Boyut104x238x25
MaterialAcrylonitrile butadiene styrene
ColourPure white; RAL 9010

Environmental Data

CO2 ayak izi (GWP) beşikten kapıya0,2252 kg CO2e / 1 Piece

Downloads

0 selected

Data sheet (1)
Catalogues & Flyers (1)
Declarations (4)
Instructions and Aid (2)
Product images (2)
Tender specifications (1)

Variants

G-KWAO70170RW
Item no.
6274830
Width
238
Height
104
Colour
Pure white; RAL 9010
