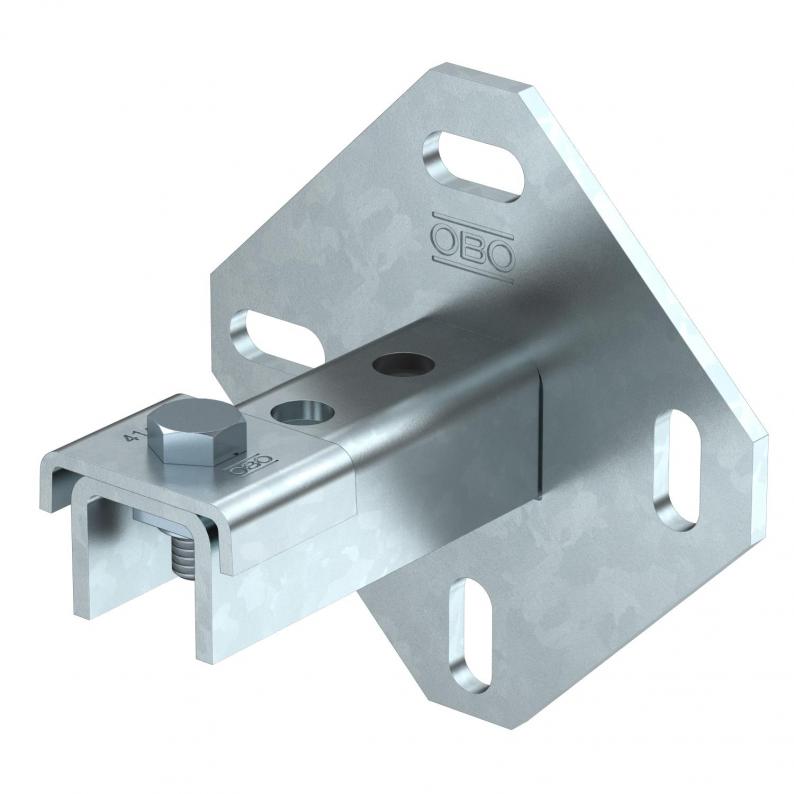

Wall, floor and ceiling bracket with 3 holes FT
Type WBDHE 41 FT
|Item no. 1123191
|EAN 4012195939276
Item no. / Type
1123191 / WBDHE 41 FT
Length
102 mm
Width
134 mm
Height
110 mm
Material thickness
5 mm
Version for
Perforated
Smallest selling unit: 10 piece
10piece
piece
Description
The wall, floor and ceiling bracket can ideally be used as a panel for wall, floor and ceiling mounting.
Also suitable for stand and frame construction in conjunction with the mounting rails MS4141.
Also suitable for stand and frame construction in conjunction with the mounting rails MS4141.
Technical data

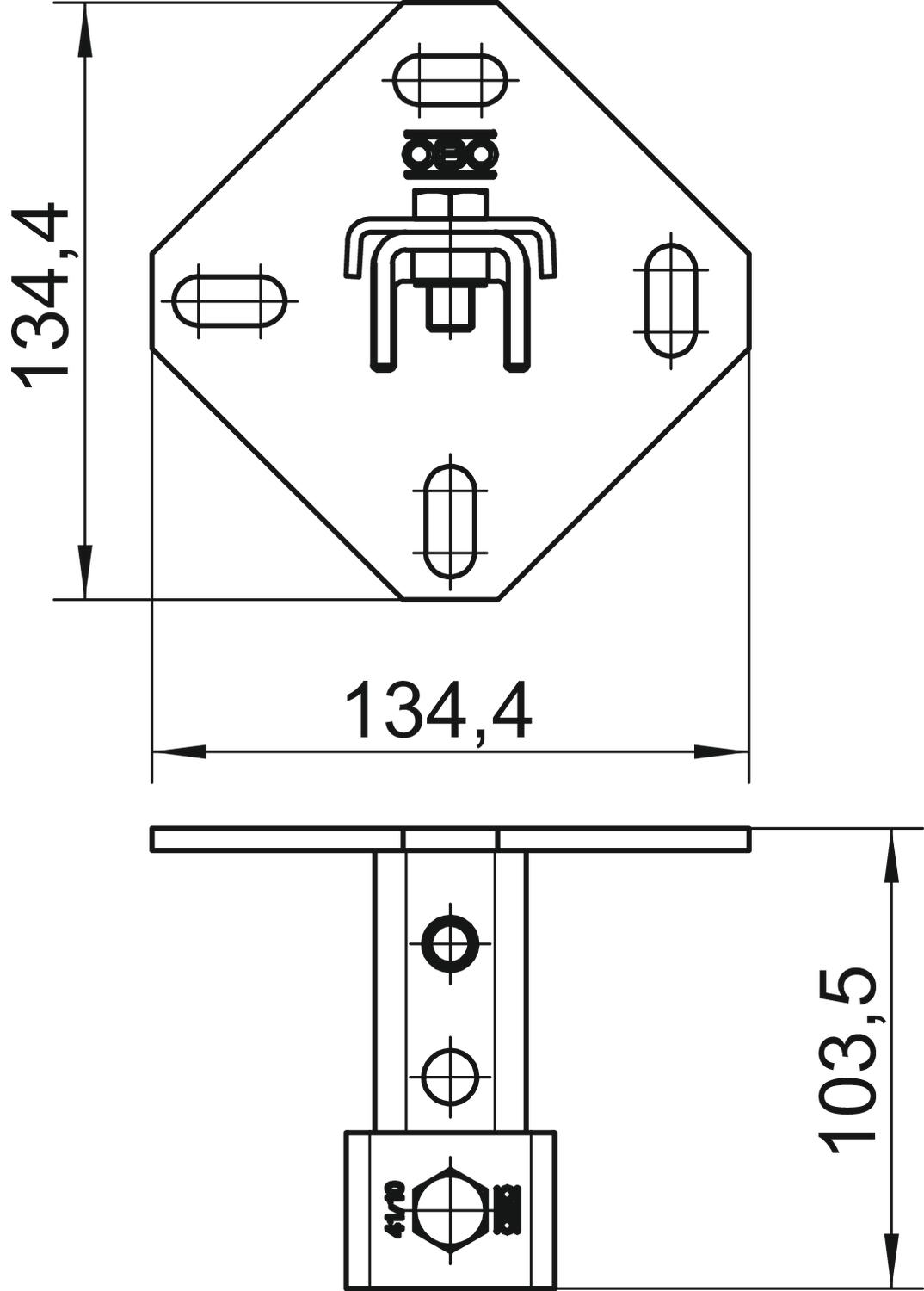

Dimensions
| Length | 102 mm |
|---|---|
| Width | 134 mm |
| Height | 110 mm |
Technical data
| Yarık uzunluğu | 22 mm |
|---|---|
| Material thickness | 5 mm |
| Statik değer A | 2,97 cm² |
| Statik değer Iy | 6,05 cm⁴ |
| Statik değer Iz | 9,01 cm⁴ |
| Statik değer Wy | 2,91 cm³ |
| Statik değer Wz | 4,4 cm³ |
| Hole size | 25 x 11 |
| Profile shape | C profil |
| Version for | Perforated |
| Boyut | 134x110x102 |
| Surface | Hot-dip galvanised |
| Material | Steel |
Environmental Data
| Packaging made completely from recycled cardboard. | evet |
|---|---|
| Packaging without plastic | evet |
| CO2 ayak izi (GWP) beşikten kapıya | 2,0185 kg CO2e / 1 Adet |
|---|
