Wide span angle connector, 110 FS
Type WRWVV 110 FS
|Item no. 6091379
|EAN 4012195437918
Item no. / Type
6091379 / WRWVV 110 FS
Height
110 mm
Plate thickness
2,5 mm
Smallest selling unit: 2 piece
2piece
piece
Description

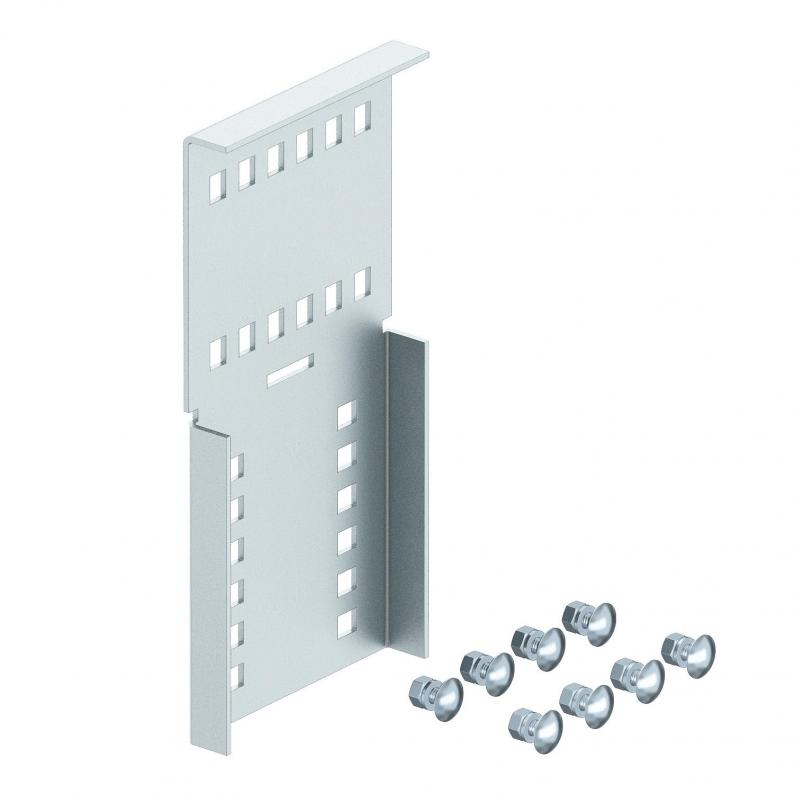

Angle connection to connect wide span cable trays and ladders running vertically and horizontally of side height 110 mm. Including fastening material.
Technical data

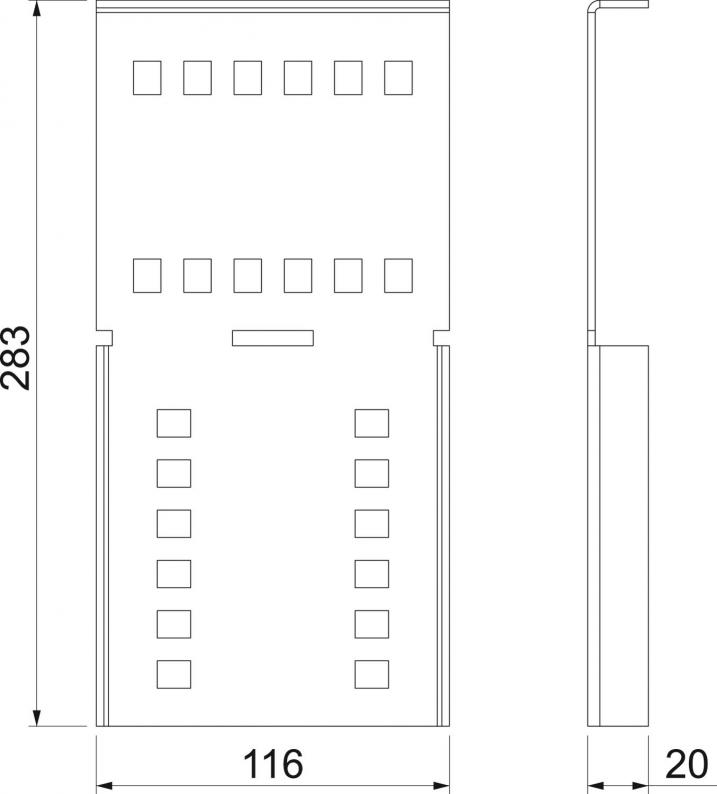

Dimensions
| Length | 283 mm |
|---|---|
| Width | 20 mm |
| Height | 110 mm |
Technical data
| Maintain electrical functions | no |
|---|---|
| Paslanmaz çelik, mordanlı | no |
| Plate thickness | 2,5 mm |
| Kafes kablo kanalı için uygun | no |
| Kablo merdiveni için uygun | yes |
| Kablo kanalı için uygun | yes |
| Adjustable connector, horizontal | no |
| Articulated connector, vertical | no |
| Suitable for cable tray system height | 110 mm |
| Version for | Angle connector |
| Connection type | Screw connector |
| Boyut | 110x250 |
| Surface | Strip galvanized |
| Material | Steel |
| Colour | zinc |
Environmental Data
| CO2 ayak izi (GWP) beşikten kapıya | 2,3809 kg CO2e / 1 Piece |
|---|
