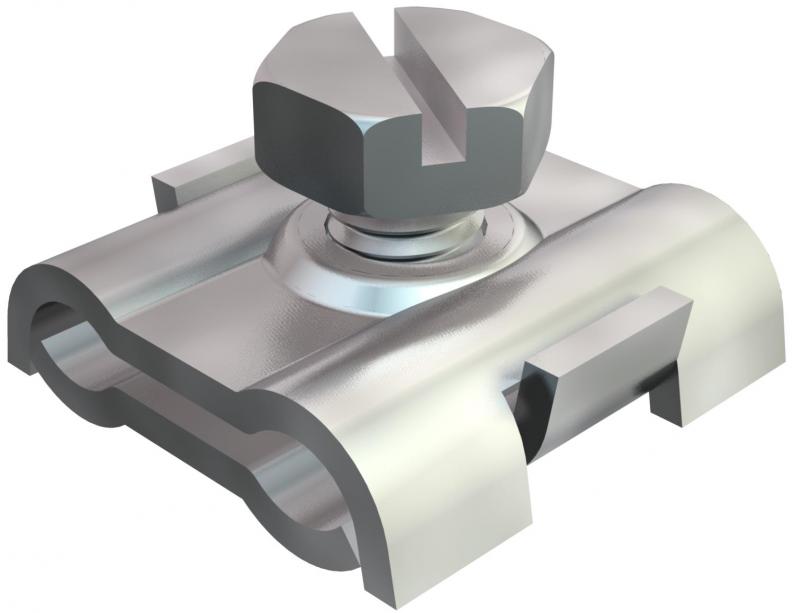

Wire cable clamp G
Type 261 3-6 G
|Item no. 5305012
|EAN 4012195417132
Item no. / Type
5305012 / 261 3-6 G
for cable diameter, min.
3 mm
for rope diameter maks.
6 mm
Smallest selling unit: 100 piece
100piece
piece
Description
Wire cable clamp for fastening steel wire tensioning ropes.
Technical data
Technical data

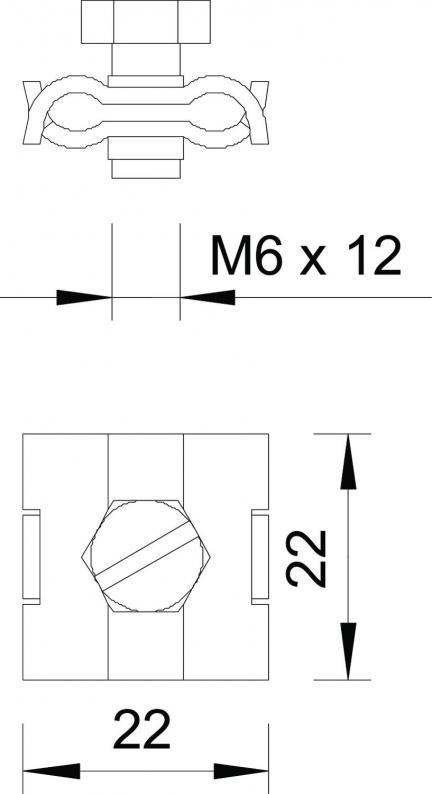

| Vida | M6x12 |
|---|---|
| for cable diameter, min. | 3 mm |
| for rope diameter maks. | 6 mm |
| Version for | Not insulated |
| Boyut | 3-6mm |
| Surface | Electrogalvanized |
| Material | Steel |
Environmental Data
| Packaging made completely from recycled cardboard. | yes |
|---|---|
| Packaging without plastic | yes |
| CO2 ayak izi (GWP) beşikten kapıya | 0,0439 kg CO2e / 1 Piece |
|---|
