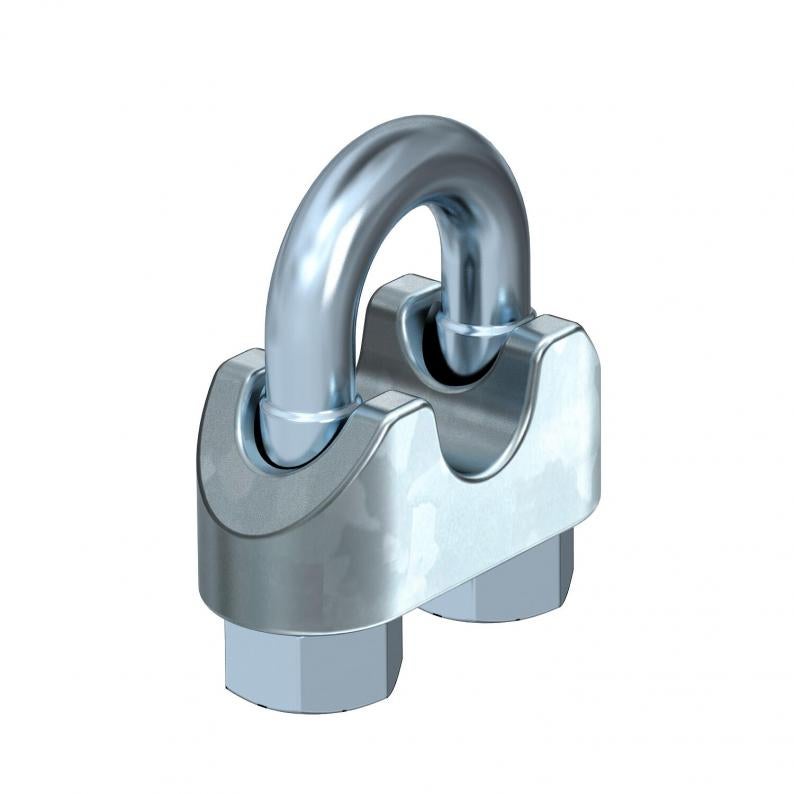

Wire cable clamp G
Type 947 5 G
|Item no. 5302056
|EAN 4012195414612
Item no. / Type
for cable diameter, min.
Smallest selling unit: 25 piece
25piece
piece
Description
Wire cable clamp, formerly DIN 741, for fastening steel wire tensioning ropes.
Technical data

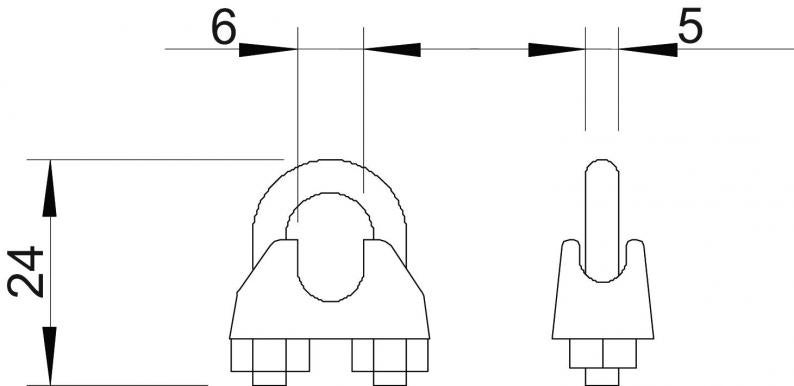

Dimensions
| Dimension A | 24 mm |
|---|---|
| Dimension B | 6 mm |
| Dimension C | 5 mm |
Technical data
| for cable diameter, min. | 5 mm |
|---|---|
| Version for | Not insulated |
| Dimension | 5mm |
| Surface | Electrogalvanised |
| Material | Steel |
Environmental Data
0,0372 kg CO2e / 1 PieceCO2 Footprint (GWP) Cradle-to-Gate
| Packaging without plastic | yes |
|---|
| CO2 Footprint (GWP) Cradle-to-Gate | 0,0372 kg CO2e / 1 Piece |
|---|---|
| CO₂ Footprint (GWP) | 0,0372 kg CO₂e |
| Determination date of CO2 value | 2025-05-14T00:00:00.000+0200 |
| Declared Unit (LCA) | Units |
| Declared Unit Quantity (LCA) | 1 |
Downloads
0 selected
Data sheet (1)
Catalogues & Flyers (1)
Declarations (4)
Product images (3)
Tender specifications (1)
Variants
Type
for cable diameter, min.
Item no.
947 3 G
3
5302021
947 5 G
5
5302056
947 6 G
6
5302064
947 8 G
8
5302080
947 10 G
10
5302102
