Wiring trunking, type LK4 15015
Type LK4 15015
|Item no. 6178001
|EAN 4012196000050
Item no. / Type
6178001 / LK4 15015
Length
2000 mm
Width
15 mm
Height
15 mm
Fastening type
Base perforation
Colour
Stone grey; RAL 7030
Smallest selling unit: 2 m
2m
m
Description

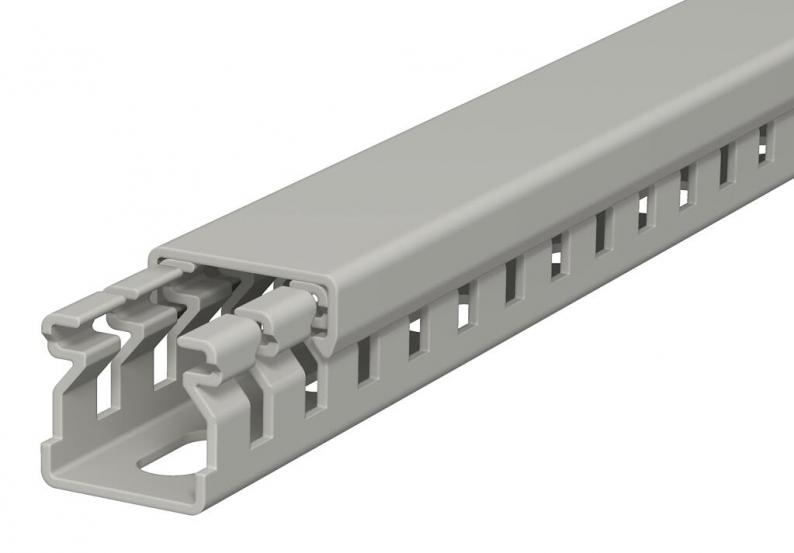

Wiring duct, incl. cover and base perforation, for horizontal and vertical routing of electrical cables in the switchgear cabinet. Designed as a metric duct. The nominal dimension of the system size corresponds to the internal dimension of the duct. Retainers are broken out without tools. The flush-floor routing of cables is possible through predetermined break points. Tested to DIN EN 50085-2-3. Special lengths on request.
Technical data

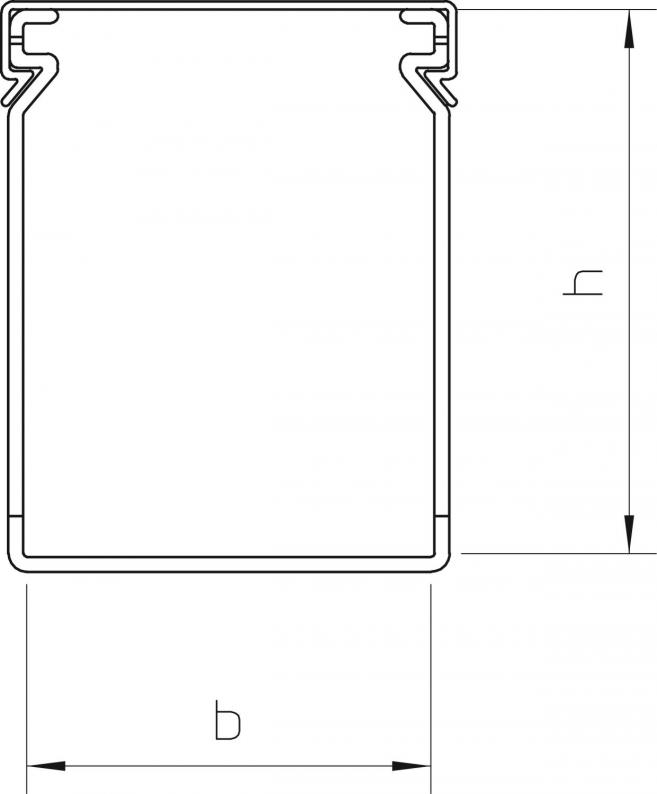

Dimensions
| Length | 2000 mm |
|---|---|
| Width | 15 mm |
| Height | 15 mm |
Technical data
| Usable cross-section | 1,9 cm² |
|---|---|
| Diameter | 0 mm |
| Halojen İçermez | no |
| kendiliğinden sönen | yes |
| Duvar tipi | Profile (open) |
| Creepage current-resistant | yes |
| Esnek | no |
| Üst parçalı | yes |
| Yarık genişliği | 10 mm |
| Yarık uzunluğu | 4 mm |
| Fastening type | Base perforation |
| Kullanılabilir sıcaklık aralığı min. | -5 °C |
| Kullanılabilir sıcaklık aralığı maks. | 60 °C |
| Boyut | 15x15x2000 |
| Material | Polyvinylchloride |
| Colour | Stone grey; RAL 7030 |
Environmental Data
| Packaging without plastic | yes |
|---|
| CO2 ayak izi (GWP) beşikten kapıya | 0,2716 kg CO2e / 1 Meter |
|---|
