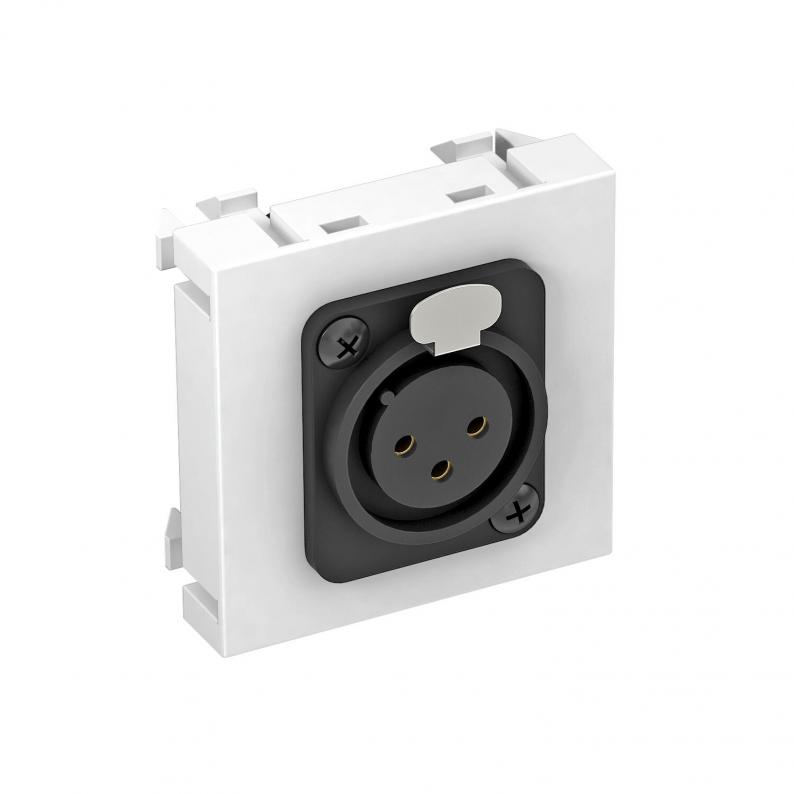

XLR connection, 1 module, straight outlet, 3-pin socket, as screw connection, pure white

XLR connection, 1 module, straight outlet, 3-pin socket, as screw connection, pure white

Type MTG-X3F S RW1
|
Item no. 6105250
|
EAN 4012196102051
Show all variants
Item no. / Type
Colour

Smallest selling unit: 1 piece

piece

Description

Multimedia support with one XLR connection socket, straight cable outlet, without labelling panel, 3-pin XLR socket with screw connection. Support plate with locking fastening, suitable for horizontal and vertical installation in the system environment.
For installation in Rapid 45 device installation ducts, Rapid 80 device installation ducts, service poles and underfloor systems.

  • CO₂ footprint (PCF)

Technical data

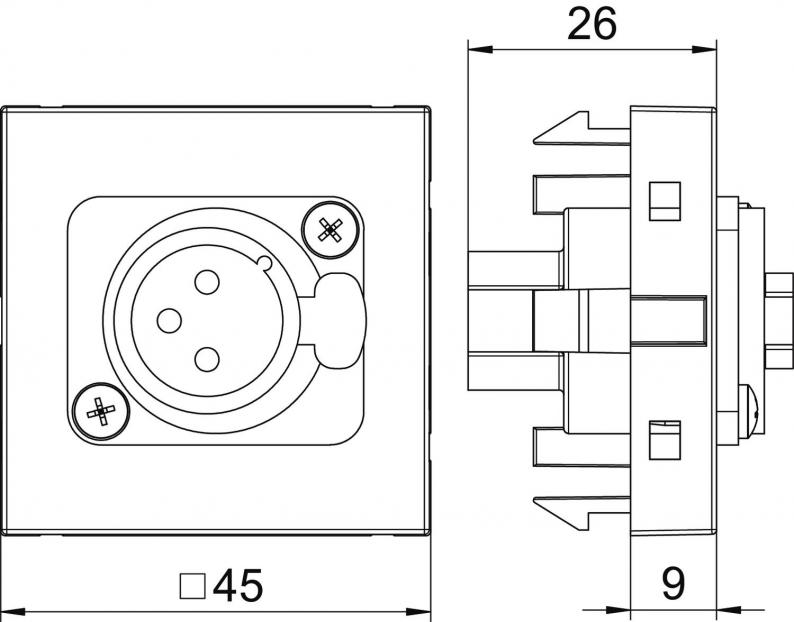

Dimensions

Width45 mm
Height45 mm

Technical data

Hinged coverno
Halogen-freeno
Number of units1
Strain relief optionno
Protection ratingIP20
Support ringyes
With dust protectionno
With printed labelno
Lamp-wire connectorno
Depth9 mm
Surface versionMatt
Transparentno
CombinationBasic element with central cover plate
UseXLR
Labelling panelWithout labelling panel
Fastening typeLock
Dimension45x45mm
MaterialPolycarbonate
ColourPure white; RAL 9010
Antibacterial treatmentno

Environmental Data

0,1505 kg CO2e / 1 PieceCO2 Footprint (GWP) Cradle-to-Gate
CO2 Footprint (GWP) Cradle-to-Gate0,1505 kg CO2e / 1 Piece

Downloads

0 selected

Data sheet (1)
Catalogues & Flyers (1)
Declarations (3)
Instructions and Aid (1)
Product images (3)
Tender specifications (1)

Variants

Colour
MTG-X3F S RW1
Item no.
6105250
Use
XLR
Colour
Pure white; RAL 9010
MTG-X3F S SWGR1
Item no.
6105252
Use
XLR
Colour
Black-grey; RAL 7021
Outlet direction
Straight
MTG-X3F S AL1
Item no.
6105254
Use
XLR
Colour
Aluminium painted
Outlet direction
Straight
