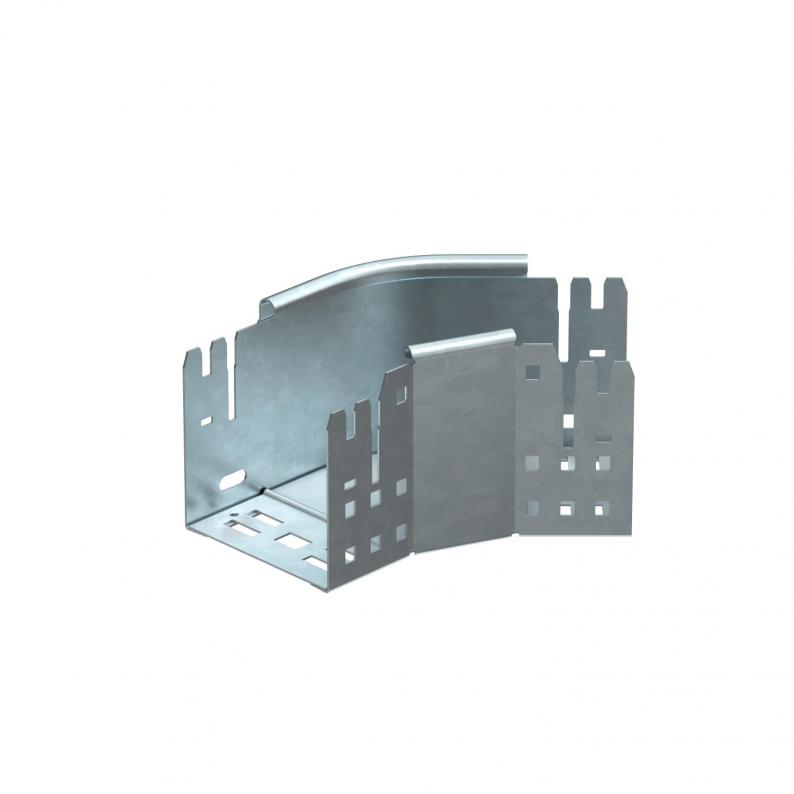

45° Magic bend 110 FT

45° Magic bend 110 FT

Type RBM 45 110 FT
|
Item no. 6041780
|
EAN 4012195880264
Show all variants
Item no. / Type
Width

This item is a discontinued product!

You can find the successor product here.

Smallest selling unit: 1 piece

piece

Description

45° bend with quick connector system. For all cable tray types of 110 mm side height.
  • Verband der Elektrotechnik, Elektronik, Informationstechnik e.V., Germany
  • Communautés Européennes, EC declaration of conformity according to EC directives
  • Cable tray, side height 110 mm
  • BET-tested to DIN EN 61537

Technical data

Dimensions

Width100 mm
Height110 mm

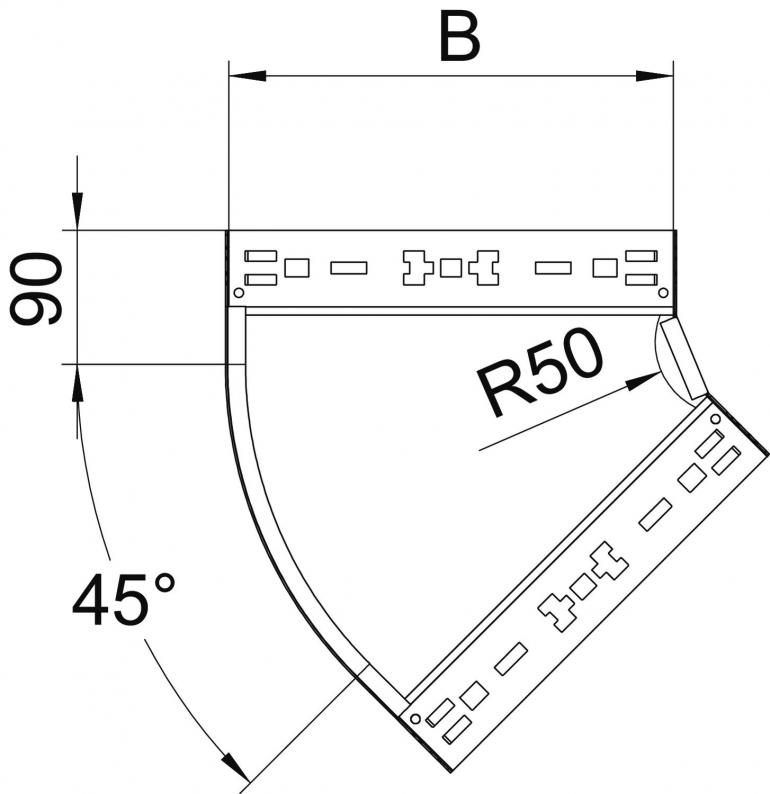

Dimension B100 mm

Technical data

Maintain electrical functionsno
Side perforationno
Connector versionIntegrated connector
Wide-span versionno
Rustproof steel, pickledno
Plate thickness1,25 mm
Mounting perforation in baseno
NATO hole patternno
Bend (angle)45°
Change of directionHorizontal
Dimension110x100
SurfaceHot-dip galvanised
MaterialSteel
Type of connector, cable support systemClick fastening

Downloads

0 selected

Data sheet (1)
Catalogues & Flyers (2)
Declarations (3)
Instructions and Aid (1)
Product images (2)
3D data downloads (2)
Tender specifications (1)

Variants

Width
RBM 45 110 FT
Item no.
6041780
Width
100
Surface
Hot-dip galvanised
Material
Steel
RBM 45 115 FT
Item no.
6041781
Width
150
Surface
Hot-dip galvanised
Material
Steel
RBM 45 140 FT
Item no.
6041786
Width
400
Surface
Hot-dip galvanised
Material
Steel
RBM 45 160 FT
Item no.
6041790
Width
600
Surface
Hot-dip galvanised
Material
Steel
