90° bend 60 A2
Type RB 90 610 A2
|Item no. 7134122
|EAN 4012196820870
Item no. / Type
7134122 / RB 90 610 A2
Width
100 mm
Surface
Bright, treated
Material
Stainless steel 1.4301
This item is a discontinued product!
You can find the successor product here.
Smallest selling unit: 1 piece
1piece
piece
Description

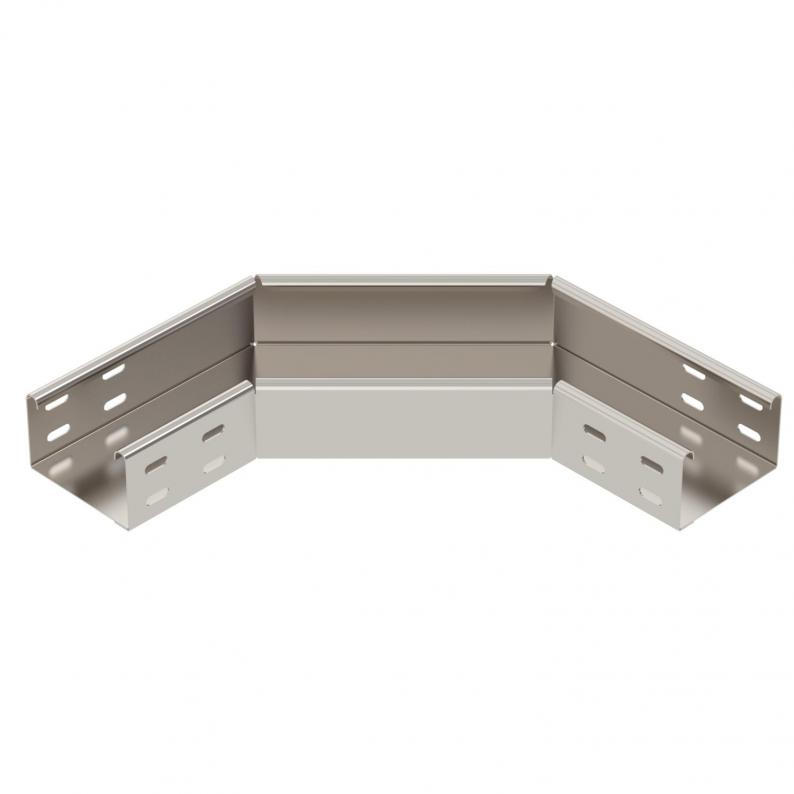

90° bend, horizontal, for all cable tray types of 60 mm side height.
The 100 mm width has a rectangular shape and does not correspond to the image.
The 100 mm width has a rectangular shape and does not correspond to the image.
The fitting is shipped in an unmounted state.
Including appropriate fastening material.
Technical data
Dimensions
| Width | 100 mm |
|---|---|
| Height | 60 mm |
| Dimension B | 100 mm |
| Dimension R | 50 mm |
Technical data
| Maintain electrical functions | no |
|---|---|
| Yan delik | no |
| Connector version | Supplied connectors |
| Wide-span version | no |
| Paslanmaz çelik, mordanlı | no |
| Plate thickness | 1 mm |
| Tabanda montaj deliği | no |
| NATO hole pattern | no |
| Dönüş elemanı (L tipi bağlantı) | 90° |
| Change of direction | Horizontal |
| Boyut | 60x100 |
| Surface | Bright, treated |
| Material | Stainless steel 1.4301 |
| Type of connector, cable support system | Screwed |
