90° bend 60 A2
Type RBU 90 660 A2
|Item no. 7134266
|EAN 4012196254835
Item no. / Type
7134266 / RBU 90 660 A2
Width
600 mm
Surface
Bright, treated
Material
Stainless steel 1.4301
This item is a discontinued product!
You can find the successor product here.
Smallest selling unit: 1 piece
1piece
piece
Description
90° bend, horizontal and unperforated, for all cable tray types of 60 mm side height.
Fitting, unperforated, in round design. The interior radius of the fitting is 150 mm. Fastening materials should be ordered separately.
Technical data

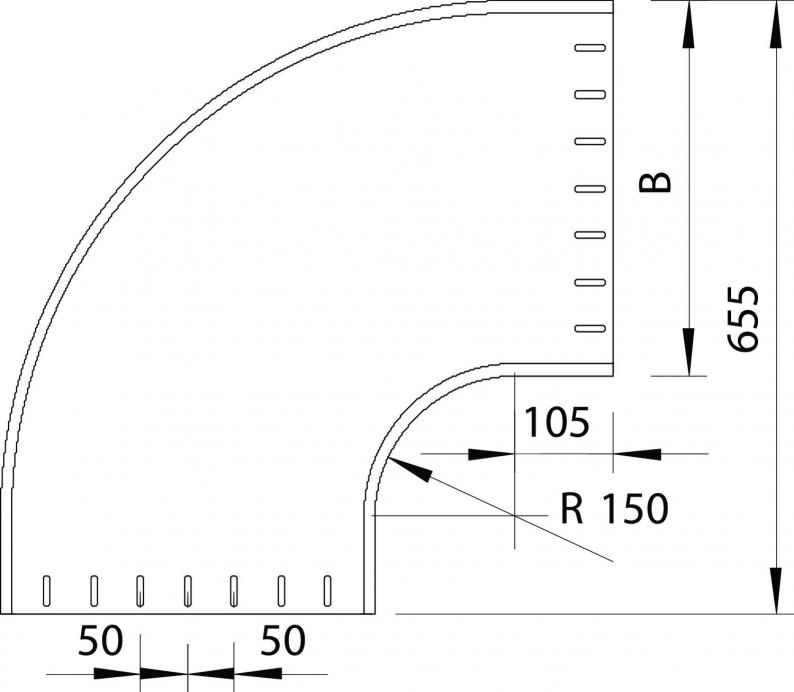

Dimensions
| Width | 600 mm |
|---|---|
| Height | 60 mm |
| Dimension B | 600 mm |
| Dimension R | 150 mm |
Technical data
| Maintain electrical functions | no |
|---|---|
| Yan delik | no |
| Connector version | Without connectors |
| Wide-span version | no |
| Paslanmaz çelik, mordanlı | no |
| Plate thickness | 1,5 mm |
| Tabanda montaj deliği | no |
| NATO hole pattern | no |
| Dönüş elemanı (L tipi bağlantı) | 90° |
| Change of direction | Horizontal |
| Boyut | 60x600 |
| Surface | Bright, treated |
| Material | Stainless steel 1.4301 |
| Type of connector, cable support system | Screwed |
