90° mesh cable tray bend FT

90° mesh cable tray bend FT

Type GRB 90 110 FT
|
Item no. 6002307
|
EAN 4012196002054
Show all variants
Item no. / Type
Width
Maintain electrical functions
Tel çapı

Smallest selling unit: 1 piece

piece

Description

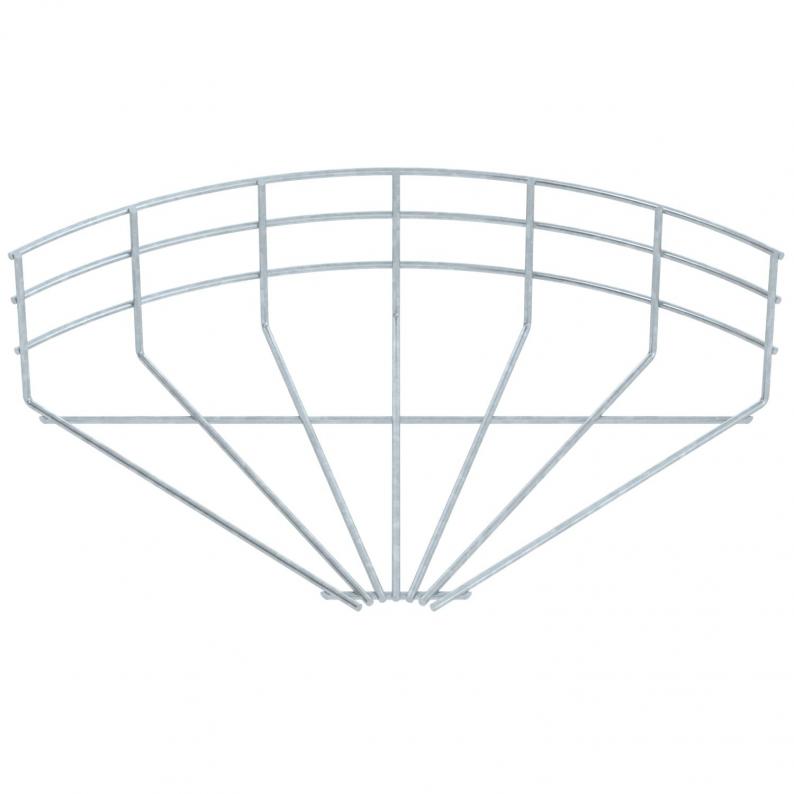

90° bend, horizontal, for all mesh cable trays of 105 mm side height.
  • Communautés Européennes, AB Yönetmelikleri uyarınca AB Uygunluk Beyanı
  • Kafes kablo kanalı, kenar yüksekliği 105 mm
  • CO₂ footprint (PCF)

Technical data

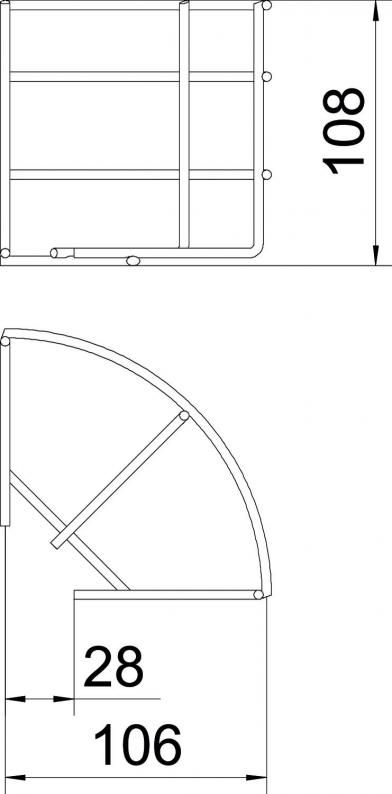

Dimensions

Width100 mm
Height105 mm
Dimension A28 mm
Dimension B106 mm
Dimension H108 mm

Technical data

Maintain electrical functionsno
Connector versionWithout connectors
Paslanmaz çelik, mordanlıno
Dönüş elemanı (L tipi bağlantı)90°
TypeHorizontal bend
Tel çapı3,9 mm
Boyut105x100
SurfaceHot-dip galvanised
MaterialSteel
Colourzinc

Environmental Data

CO2 ayak izi (GWP) beşikten kapıya0,4758 kg CO2e / 1 Piece

Accessories

Mounting accessories

Item no. 6016634

Joint connector FT
Type
GSV 34 FT

Smallest selling unit: 20 piece

piece

Downloads

0 selected

Data sheet (1)
Catalogues & Flyers (3)
Declarations (3)
Instructions and Aid (3)
Product images (2)
3D data downloads (1)
Tender specifications (1)

Variants

Width
Tel çapı
GRB 90 110 FT
Item no.
6002307
Width
100
Maintain electrical functions
hayır
Tel çapı
3,9
GRB 90 115 FT
Item no.
6002311
Width
150
Maintain electrical functions
hayır
Tel çapı
3,9
GRB 90 120 FT
Item no.
6002315
Width
200
Maintain electrical functions
hayır
Tel çapı
4,8
GRB 90 130 FT
Item no.
6002323
Width
300
Maintain electrical functions
hayır
Tel çapı
4,8
GRB 90 140 FT
Item no.
6002331
Width
400
Maintain electrical functions
hayır
Tel çapı
4,8
GRB 90 150 FT
Item no.
6002358
Width
500
Maintain electrical functions
hayır
Tel çapı
4,8
GRB 90 160 FT
Item no.
6002366
Width
600
Maintain electrical functions
hayır
Tel çapı
4,8
