90° mounting angle A2
Type MW 90 SL17 A2
|Item no. 6016278
|EAN 4012196012855
Item no. / Type
Smallest selling unit: 20 piece
20piece
piece
Description

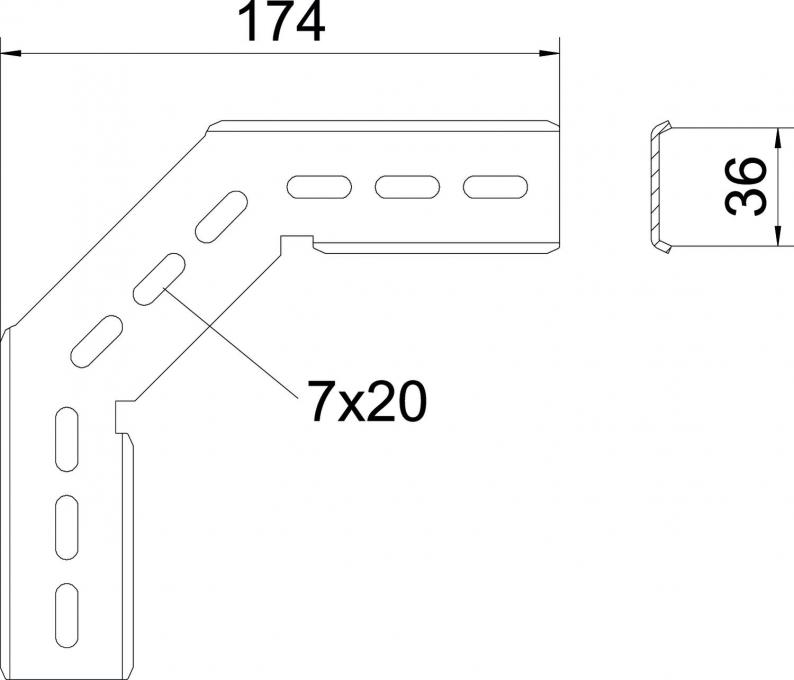

90° installation profile, vertical, for C mesh cable tray and GR-Magic® mesh cable tray with a side height of 55 mm.

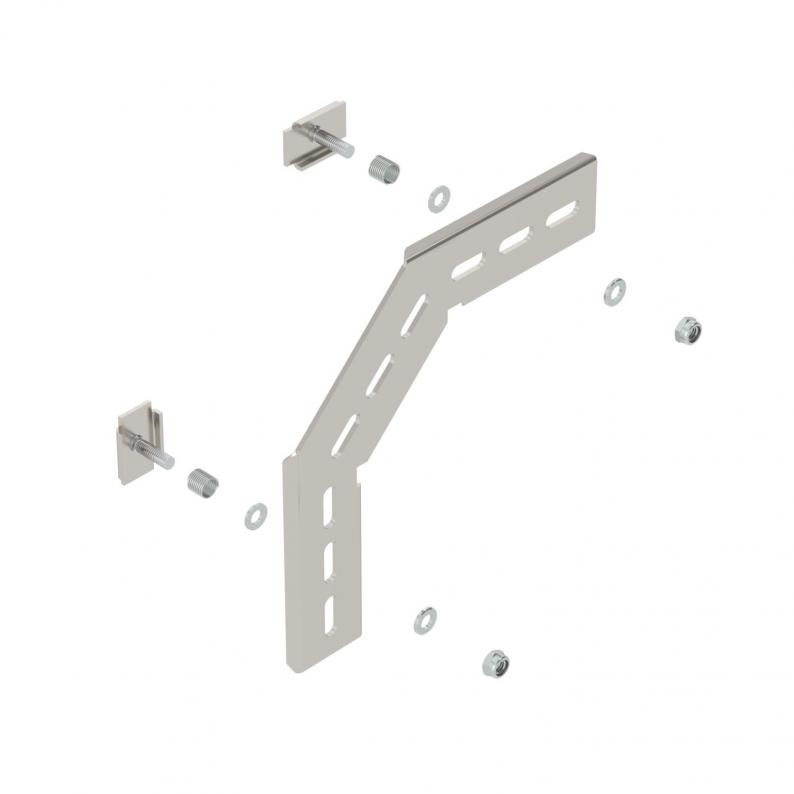

Each with two clamps of type KS 23/35.
Technical data
Technical data
| Paslanmaz çelik, mordanlı | no |
|---|---|
| Ölçü | 170 x 170 |
| Boyut | 170x170 |
| Surface | Bright, treated |
| Material | Stainless steel 1.4301 |
| Colour | stainless steel |
Environmental Data
| Packaging made completely from recycled cardboard. | yes |
|---|---|
| Packaging without plastic | yes |
| CO2 ayak izi (GWP) beşikten kapıya | 1,8551 kg CO2e / 1 Piece |
|---|
Downloads
0 selected
Data sheet (1)
Catalogues & Flyers (3)
Declarations (3)
Instructions and Aid (2)
Product images (2)
3D data downloads (1)
Tender specifications (1)
Variants
Type
Surface
Material
Item no.
MW 90 SL17 A2
Bright, treated
Stainless steel 1.4301
6016278
MW 90 SL23 A2
Bright, treated
Stainless steel 1.4301
6016308
MW 90 SL17 A2
Item no.
6016278
Surface
Bright, treated
Material
Stainless steel 1.4301
MW 90 SL23 A2
Item no.
6016308
Surface
Bright, treated
Material
Stainless steel 1.4301
