Add-on tee 110 FT

Add-on tee 110 FT

Type SLAA 1120 R3 FT
|
Item no. 6225950
|
EAN 4012196445615
Show all variants
Item no. / Type
Width

Smallest selling unit: 1 piece

piece

Description

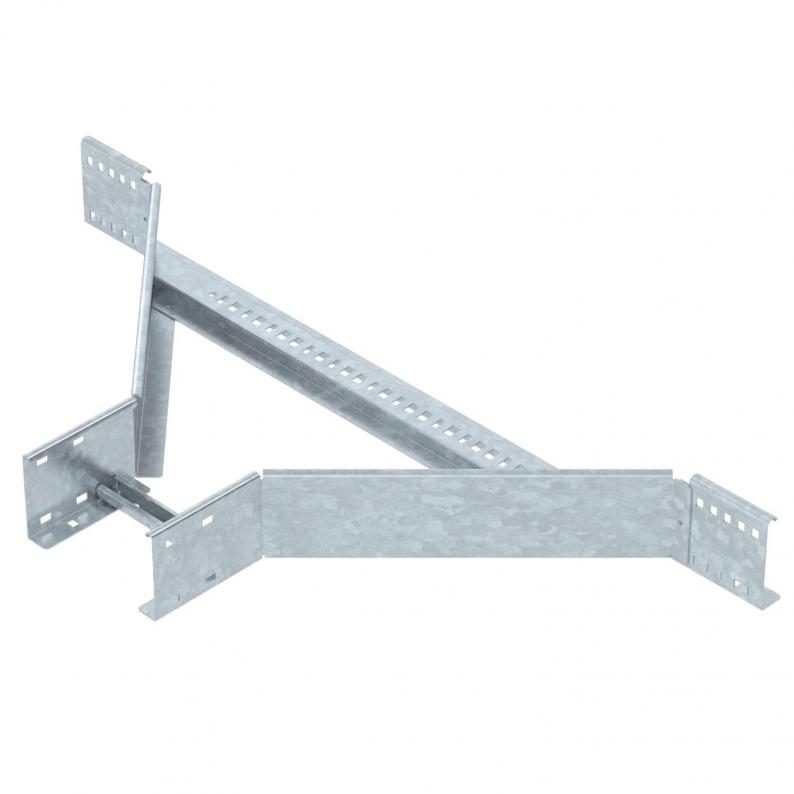

Add-on tee with welded rung for all cable ladder types of 110 mm side height.

Connectors should be ordered separately and in the appropriate quantity.

  • Communautés Européennes, AB Yönetmelikleri uyarınca AB Uygunluk Beyanı
  • UKCA declaration of conformity
  • CO₂ footprint (PCF)

Technical data

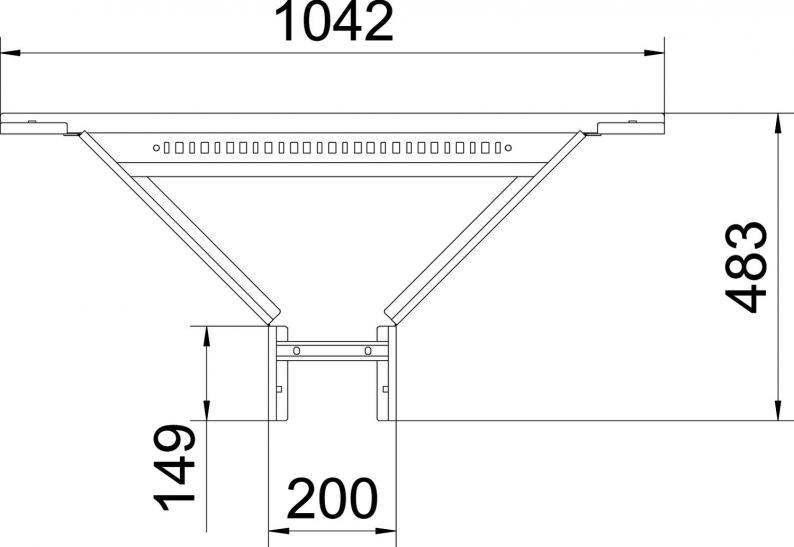

Dimensions

Width200 mm
Height110 mm
Dimension B200 mm
Dimension R300 mm

Technical data

Maintain electrical functionsno
Connector versionWithout connectors
Wide-span versionno
Paslanmaz çelik, mordanlıno
Version of the rungsProfile perforated
Side rail versionFlat profile
Yan parça kalınlığı2 mm
Boyut110x200
SurfaceHot-dip galvanised
MaterialSteel
Colourzinc

Environmental Data

CO2 ayak izi (GWP) beşikten kapıya14,7016 kg CO2e / 1 Piece

Accessories

Mounting accessories

Item no. 6216548

Straight connector FT
Type
LVG 110 FT

Smallest selling unit: 10 piece

piece

Downloads

0 selected

Data sheet (1)
Catalogues & Flyers (3)
Declarations (4)
Instructions and Aid (2)
Product images (2)
3D data downloads (1)
Tender specifications (1)

Variants

Width
SLAA 1120 R3 FT
Item no.
6225950
Width
200
SLAA 1130 R3 FT
Item no.
6225952
Width
300
SLAA 1140 R3 FT
Item no.
6225954
Width
400
SLAA 1150 R3 FT
Item no.
6225958
Width
500
SLAA 1160 R3 FT
Item no.
6225960
Width
600
