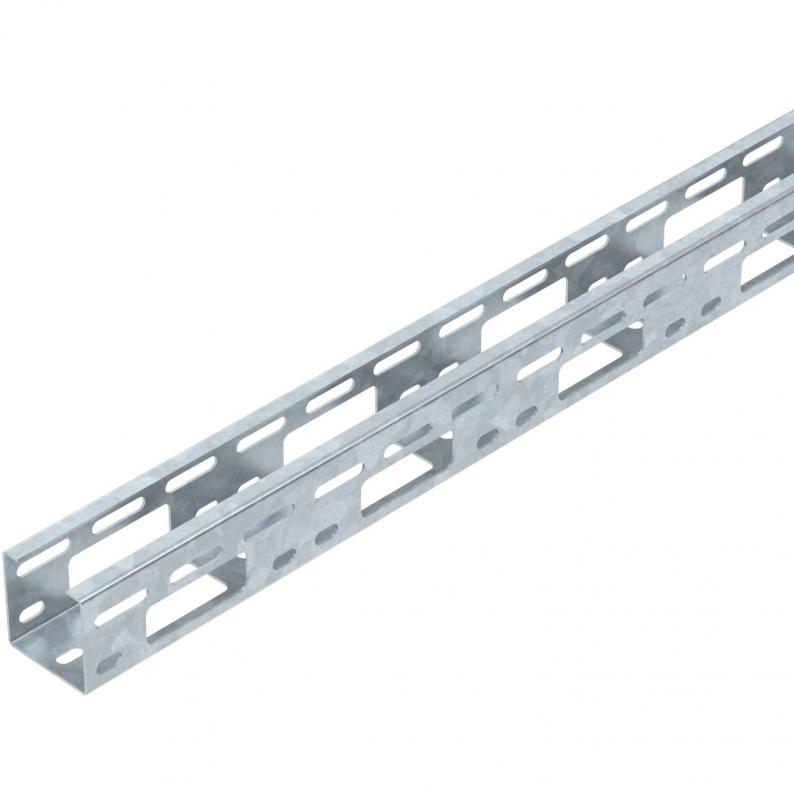

AZ small duct 50 FT

AZ small duct 50 FT

Type AZK 050 FT
|
Item no. 6075142
|
EAN 4012196069019
Show all variants
Item no. / Type
6075142 / AZK 050 FT
Length
3000 mm
Width
50 mm
Maintain electrical functions
no
Plate thickness
1,5 mm

Smallest selling unit: 3 m

m

Description

AZ channel with a side height of 50 mm.
Magnetic shield insulation without cover 20 dB, with cover 50 dB.
  • Manyetik ekranlama sönümlemesi
  • Underwriters Laboratories Inc., USA & Canada
  • Communautés Européennes, AB Yönetmelikleri uyarınca AB Uygunluk Beyanı
  • UKCA declaration of conformity
  • Environmental Product Declaration (EPD)
  • CO₂ footprint (PCF)

Technical data

Dimensions

Length3000 mm
Width50 mm
Height50 mm

Technical data

Maintain electrical functionsno
Yan delikyes
Connector versionWithout connectors
Wide-span versionno
Usable cross-section25 cm²
Paslanmaz çelik, mordanlıno
Plate thickness1,5 mm
Tabanda montaj deliğiyes
NATO hole patternno
Usable cross-section2500 mm²
Ölçü50 x 50 x 1,5
Boyut50x50x3000
SurfaceHot-dip galvanised
MaterialSteel
Colourzinc

Loads

Destek aralığı 1,0m2,5 kN/m
Destek aralığı 1,5m2 kN/m
Destek aralığı 2,0m1,2 kN/m
Destek aralığı 2,5m0,85 kN/m
Destek aralığı 3,0m0,5 kN/m
Load diagram, AZ small duct

Permitted cable tray/ladder load in kN/m without man load

Destekler arası mesafe, m

Müsaade edilen kN/m'de yan taşıyıcı profilde oluşan eğilme miktarı mm olarak

Test yönteminde yük şeması

mm olarak kablo kanalı/merdiveni genişliği ile yük eğrisi

Destek aralığına bağlı olarak yan taşıyıcı profilin eğilme miktarı eğrisi

Environmental Data

EPD-verifiedyes
Expiry date EPD10.07.2029
Declaration number EPD EPD-KTO-17.0
Unit base EPD1 running metre + mounting system
EPD GWP (outside of the system limits)18.83 kg CO₂e
EPD GWP (disposal phase)1.97 kg CO₂e
EPD GWP (manufacturing phase)81.32 kg CO₂e
EPD standard / LCA standard (norms)DIN EN ISO 14025,EN 15804 + A2
CO2 ayak izi (GWP) beşikten kapıya3,9464 kg CO2e / 1 Meter
