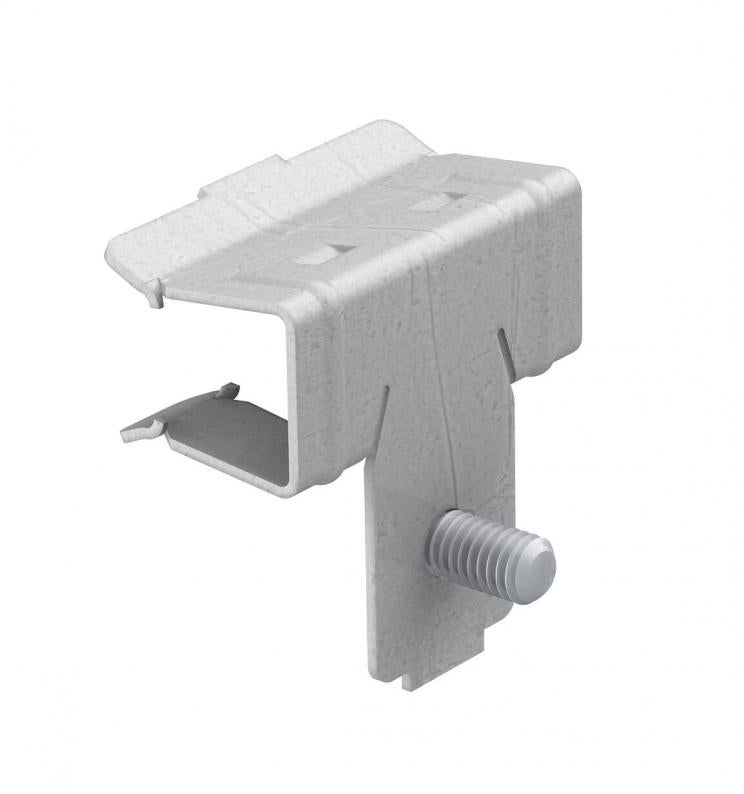

Beam clamp, with threaded bolt
Type BCVTB 8-14 M6
|Item no. 1483615
|EAN 4012196502257
Item no. / Type
1483615 / BCVTB 8-14 M6
Dimension L
41 mm
Dimension B
38 mm
Flange thickness F min.
8 mm
Flange thickness F max.
14 mm
This item is a discontinued product!
You can find the successor product here.
Smallest selling unit: 100 piece
100piece
piece
Description
Beam clamp for knocking in with threaded bolt as individual fastening solution on the beam.
Technical data

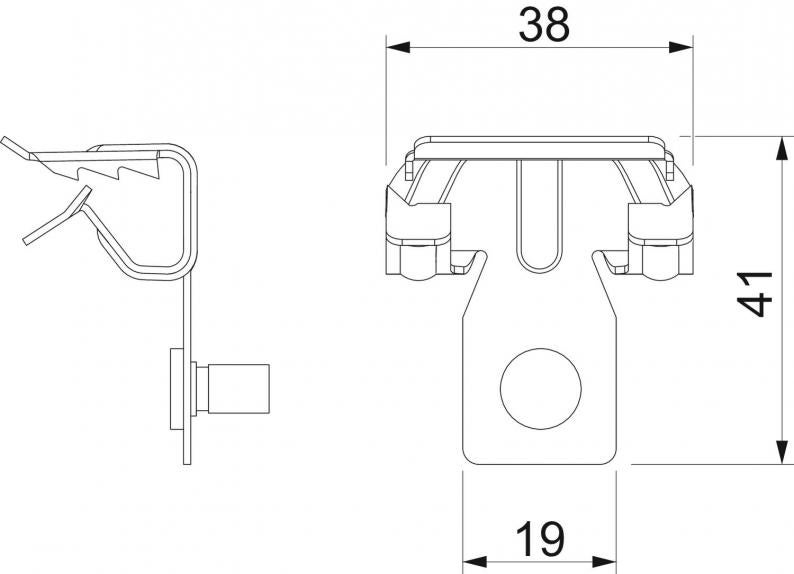

Dimensions
| Dimension L | 41 mm |
|---|---|
| Dimension B | 38 mm |
Technical data
| Thread metric | 6 |
|---|---|
| Thread | M6 x 9mm |
| Hinged | no |
| Hinge, adjustable | no |
| Breaking load | 0,45 kN |
| Fastening type | Clamp |
| Connection type/component | Thread |
| Flange thickness F min. | 8 mm |
| Flange thickness F max. | 14 mm |
| Dimension | 8-14mm |
| Surface | Zinc slat |
| Material | Steel |
