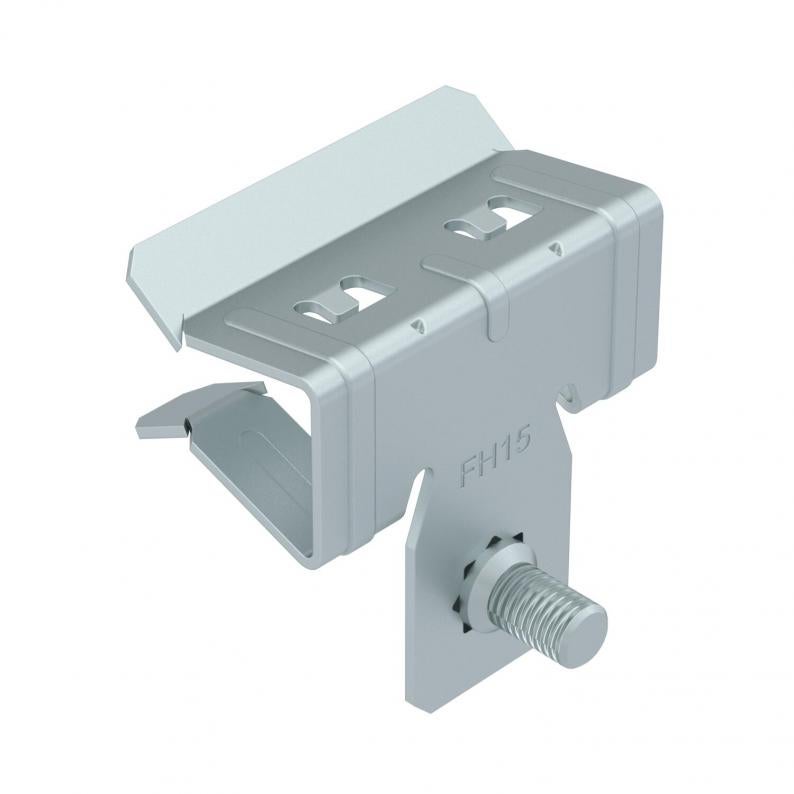

Support clamp, with threaded bolt at side
Type SCVTB 10-15 M6
|Item no. 1488275
|EAN 4012197392291
Item no. / Type
Length
Width
Height
Dimension L
Flange thickness F min.
Flange thickness F max.
Smallest selling unit: 100 piece
100piece
piece
Description
Support clamp with M6 threaded bolt at side for individual mounting solutions. Fastening through knocking onto steel girders.
Technical data

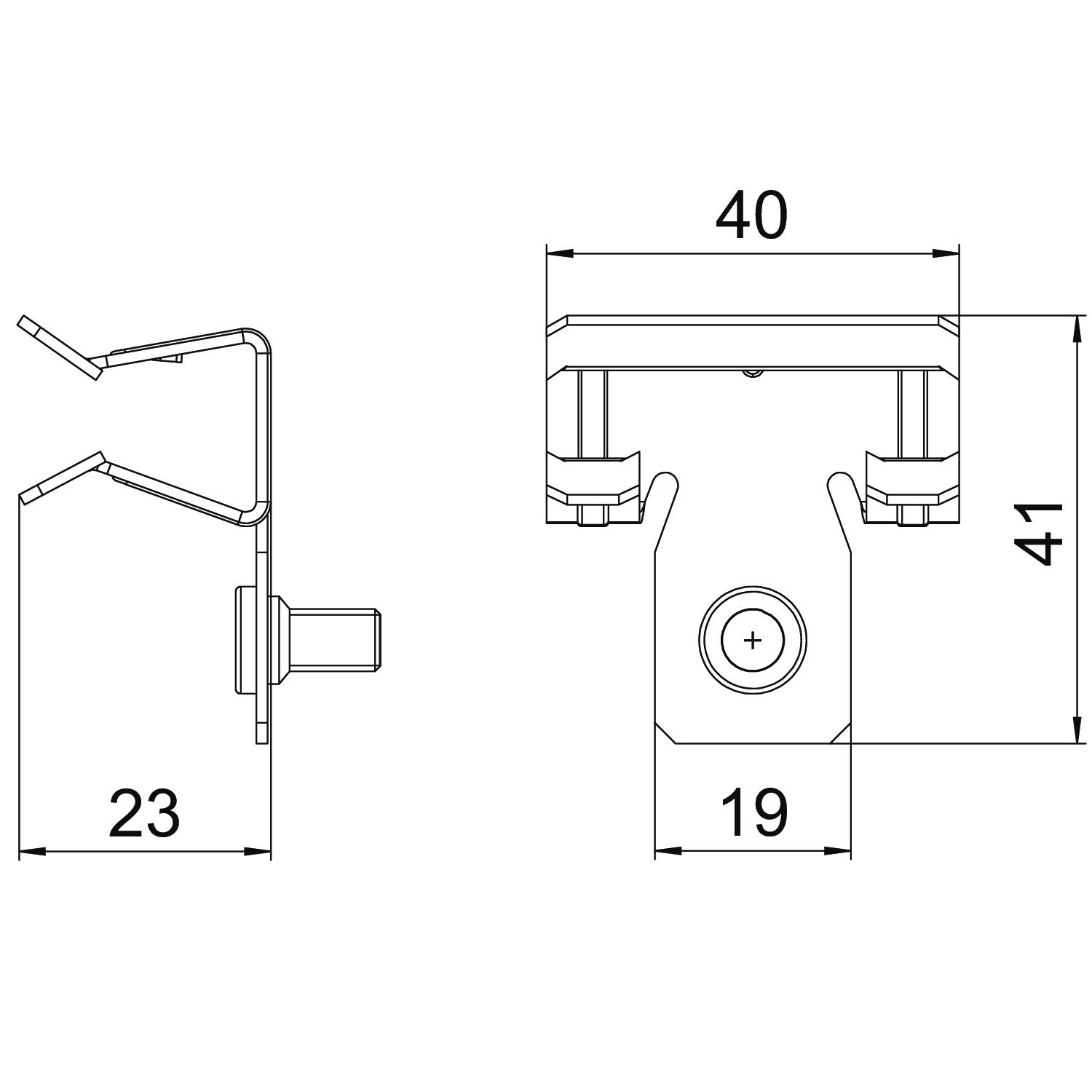

Dimensions
| Length | 35 mm |
|---|---|
| Width | 40 mm |
| Height | 42 mm |
| Dimension L | 41 mm |
Technical data
| Thread metric | 6 |
|---|---|
| Hinged | no |
| Hinge, adjustable | no |
| Breaking load | 0,45 kN |
| Fastening type | Clamp |
| Connection type/component | Thread |
| Flange thickness F min. | 10 mm |
| Flange thickness F max. | 15 mm |
| Dimension | 10-15mm |
| Surface | Zinc slat |
| Material | Steel |
| Colour | zinc |
