Cable ladder LG 110, 6 m VS A2
Type LG 113 VS6 A2
|Item no. 6216493
|EAN 4012196039425
Item no. / Type
Length
Width
Rail thickness
Smallest selling unit: 6 m
6m
m
Description

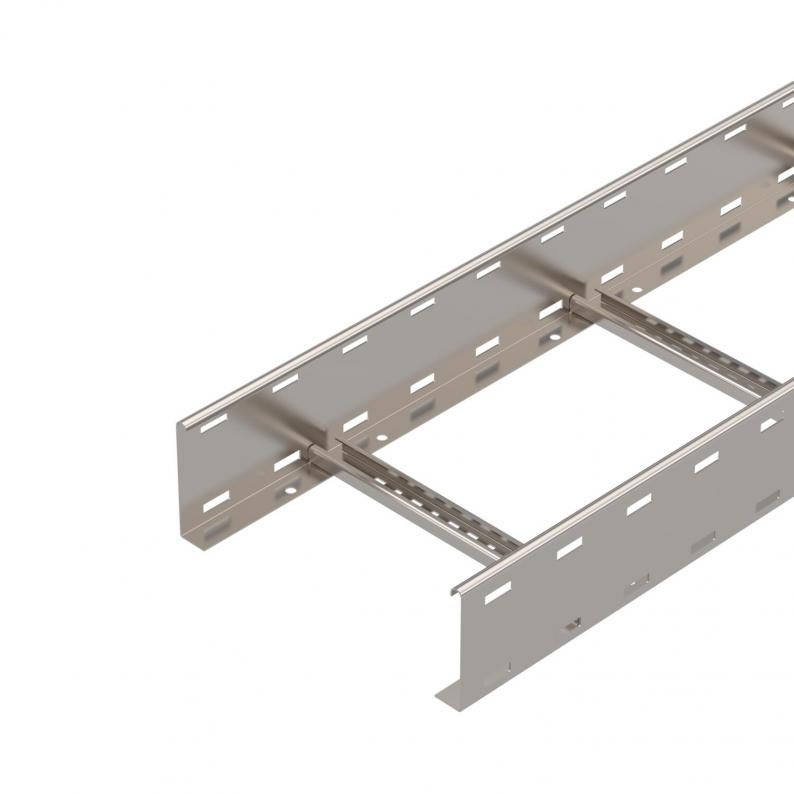

Cable ladder with perforated side rail of side height 110 mm with riveted C profile rungs, open in an upwards direction.
Magnetic shield insulation without cover 10 dB, with cover 15 dB.
Magnetic shield insulation without cover 10 dB, with cover 15 dB.
The cable ladder is shipped folded up.
You can find the appropriate U clamp of type 2056 in the vertical ladder systems chapter.
Technical data
Dimensions
| Length | 6000 mm |
|---|---|
| Width | 300 mm |
| Height | 110 mm |
| Dimension B | 300 mm |
| Rung slot dimension | 16,50 |
Technical data
| Wide-span version | no |
|---|---|
| Usable cross-section | 283 cm² |
| Usable cross-section | 28300 mm² |
| Rung distance | 300 mm |
| Fastening of rung | Blind riveted |
| Dimension | 110x300 |
| Rail thickness | 1,5 mm |
| Dimension | 110x300x6000 |
| Surface | Bright, treated |
| Material | Stainless steel 1.4301 |
| Colour | stainless steel |
Loads
| Support spacing 2.0 m | 3,1 kN/m |
|---|---|
| Support spacing 2.5 m | 2 kN/m |
| Support spacing 3.0 m | 1,3 kN/m |
| Support spacing 3.5 m | 0,9 kN/m |
| Support spacing 4.0 m | 0,6 kN/m |
| Support spacing 4.5 m | 0,5 kN/m |
| Support spacing 5.0 m | 0,45 kN/m |
| Support spacing 6.0 m | 0,15 kN/m |
Environmental Data
20,66 kg CO2e / 1 MeterCO2 Footprint (GWP) Cradle-to-Gate
| CO2 Footprint (GWP) Cradle-to-Gate | 20,66 kg CO2e / 1 Meter |
|---|---|
| CO₂ Footprint (GWP) | 20,66 kg CO₂e |
| Determination date of CO2 value | 2025-05-21T00:00:00.000+0200 |
| Declared Unit (LCA) | Metres |
| Declared Unit Quantity (LCA) | 1 |
| EPD-verified | yes |
|---|---|
| Expiry date EPD | 10.07.2029 |
| Declaration number EPD | EPD-KTO-17.0 |
| EPD standard / LCA standard (norms) | DIN EN ISO 14025,EN 15804 + A2 |
Accessories
System accessories
Article
Type
Item no.
Amount
Item no. 6216590
Straight and angle connector A2Type
LWVG 110 A2
Smallest selling unit: 10 piece
10piece
piece
Downloads
0 selected
Data sheet (1)
Catalogues & Flyers (4)
Declarations (5)
Instructions and Aid (2)
Product images (3)
3D data downloads (1)
Tender specifications (1)
Variants
Type
Length
Width
Rail thickness
Surface
Material
Item no.
LG 112 VS6 A2
6000
200
1,5
Bright, treated
Stainless steel 1.4301
6216492
LG 113 VS6 A2
6000
300
1,5
Bright, treated
Stainless steel 1.4301
6216493
LG 114 VS6 A2
6000
400
1,5
Bright, treated
Stainless steel 1.4301
6216495
LG 115 VS6 A2
6000
500
1,5
Bright, treated
Stainless steel 1.4301
6216497
LG 116 VS6 A2
6000
600
1,5
Bright, treated
Stainless steel 1.4301
6216499
