Cable tray MKS-Magic® 85 FT

Cable tray MKS-Magic® 85 FT

Type MKSM 810 FT
|
Item no. 6059097
|
EAN 4012195830412
Show all variants
Item no. / Type
Length
Width
Height
Maintain electrical functions
Plate thickness
Colour

Smallest selling unit: 3 m

m

Description

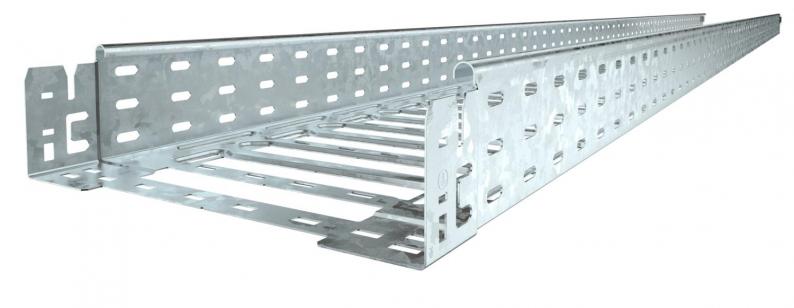

Cable tray with integrated quick fastening system. The usable length of the cable tray is 3,000 mm.

The cable tray has continuous side perforations of 7 x 20 mm for the installation of additional connection and mounting components.

From a cable tray width of 200 mm with 30% hole surface, suitable for use under sprinkler systems according to VdS guideline 2092.



Continuous equipotential bonding is guaranteed without additional components.

  • Alman Elektrik, Elektronik ve Bilgi Teknolojileri Birliği
  • Communautés Européennes, AB Yönetmelikleri uyarınca AB Uygunluk Beyanı
  • UKCA declaration of conformity
  • Environmental Product Declaration (EPD)
  • CO₂ footprint (PCF)

Technical data

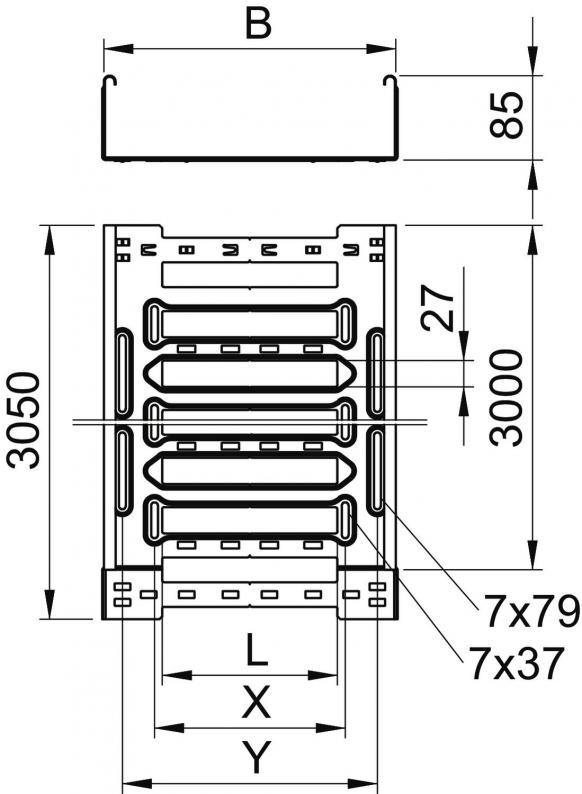

Dimensions

Length3050 mm
Width100 mm
Height85 mm
Dimension y62 mm
Dimension L30 mm
Dimension B100 mm

Technical data

Maintain electrical functionsno
Yan delikyes
Connector versionIntegrated connector
Wide-span versionno
Usable cross-section83 cm²
Paslanmaz çelik, mordanlıno
Plate thickness1 mm
Tabanda montaj deliğiyes
NATO hole patternno
Usable cross-section8300 mm²
Üst parçalıno
Boyut85x100x3050
SurfaceHot-dip galvanised
MaterialSteel
Colourzinc
Magnetic shield insulation with cover50 dB
Magnetic shield insulation without cover20 dB
Load test type according to IEC 61537Type II
Usable length3000 mm
Type of connector, cable support systemClick fastening

Loads

Destek aralığı 1,5m1,7 kN/m
Destek aralığı 2,0m1,35 kN/m
Destek aralığı 2,5m1 kN/m
MKSM 85 típusú kábelcsatorna terhelési diagramja

Permitted cable tray/ladder load in kN/m without man load

Destekler arası mesafe, m

Müsaade edilen kN/m'de yan taşıyıcı profilde oluşan eğilme miktarı mm olarak

Test yönteminde yük şeması

mm olarak kablo kanalı/merdiveni genişliği ile yük eğrisi

Destek aralığına bağlı olarak yan taşıyıcı profilin eğilme miktarı eğrisi

Environmental Data

EPD-verifiedyes
Expiry date EPD10.07.2029
Declaration number EPD EPD-KTO-17.0
Unit base EPD1 running metre + mounting system
EPD GWP (outside of the system limits)18.83 kg CO₂e
EPD GWP (disposal phase)1.97 kg CO₂e
EPD GWP (manufacturing phase)81.32 kg CO₂e
EPD standard / LCA standard (norms)DIN EN ISO 14025,EN 15804 + A2
CO2 ayak izi (GWP) beşikten kapıya5,3897 kg CO2e / 1 Meter
