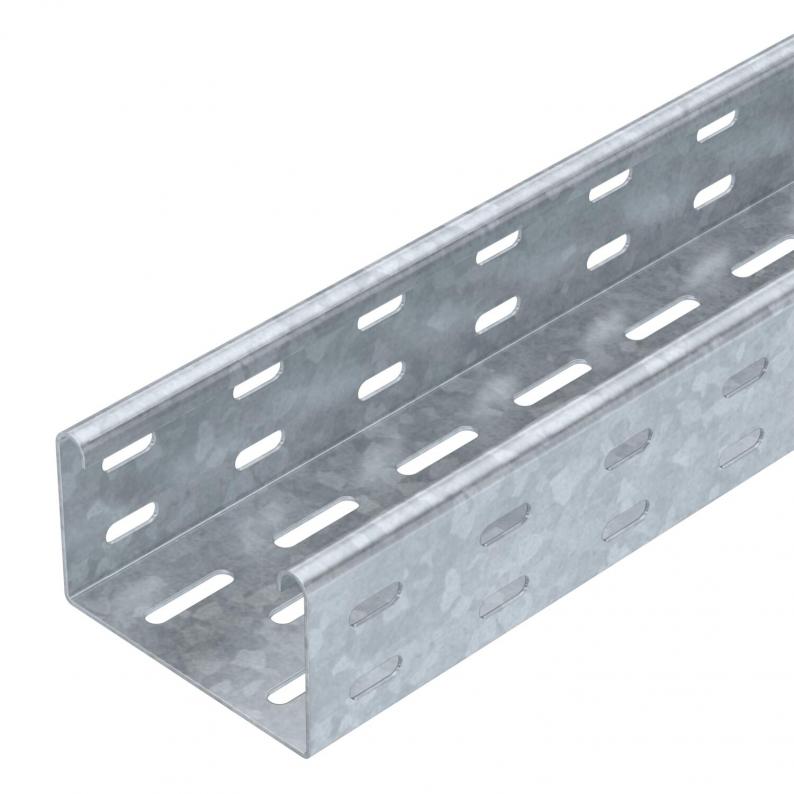

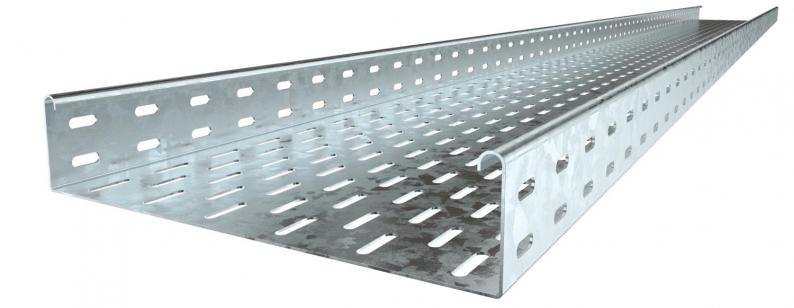

Cable tray SKS 60 FT

Cable tray SKS 60 FT

Type SKS 610 FT
|
Item no. 6056636
|
EAN 4012196389957
Show all variants
Item no. / Type
Length
Width
Maintain electrical functions
Plate thickness

Smallest selling unit: 3 m

m

Description

SKS 60 = Heavy-duty cable tray system with 60 mm side height.
Magnetic shield insulation without cover 20 dB, with cover 50 dB.

The cable tray, type SKS, should also be used for the maintenance of electrical function. For additional data, please refer to BSS fire protection systems.

  • Underwriters Laboratories Inc., USA & Canada
  • Communautés Européennes, AB Yönetmelikleri uyarınca AB Uygunluk Beyanı
  • UKCA declaration of conformity
  • Fonksiyon koruma sınıfı E30
  • Function maintenance class E60
  • Fonksiyon koruma sınıfı E90
  • Environmental Product Declaration (EPD)
  • CO₂ footprint (PCF)

Technical data

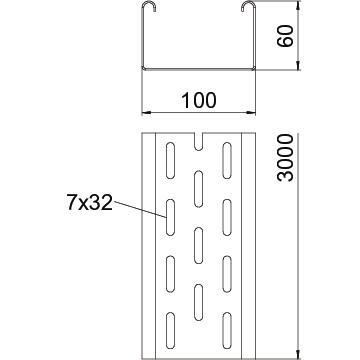

Dimensions

Length3000 mm
Width100 mm
Height60 mm
Dimension B100 mm
Dimension W100 mm

Technical data

Maintain electrical functionsyes
Yan delikyes
Connector versionWithout connectors
Wide-span versionno
Usable cross-section58 cm²
Paslanmaz çelik, mordanlıno
Plate thickness1,5 mm
Tabanda montaj deliğiyes
NATO hole patternno
Usable cross-section5800 mm²
Üst parçalıno
Ölçü60 x 100
Boyut60x100x3000
SurfaceHot-dip galvanised
MaterialSteel
Colourzinc
Fire protectionMaintenance of electrical function of standard support structure
Load test type according to IEC 61537Type II
Type of connector, cable support systemScrewed

Loads

Destek aralığı 1,5m2,65 kN/m
Destek aralığı 2,0m1,8 kN/m
Destek aralığı 2,5m1,15 kN/m
Destek aralığı 3,0m0,5 kN/m
SKS 60 típusú kábeltálca terhelési diagramja

Permitted cable tray/ladder load in kN/m without man load

Destekler arası mesafe, m

Müsaade edilen kN/m'de yan taşıyıcı profilde oluşan eğilme miktarı mm olarak

Test yönteminde yük şeması

mm olarak kablo kanalı/merdiveni genişliği ile yük eğrisi

Destek aralığına bağlı olarak yan taşıyıcı profilin eğilme miktarı eğrisi

Environmental Data

EPD-verifiedyes
Expiry date EPD10.07.2029
Declaration number EPD EPD-KTO-17.0
Unit base EPD1 running metre + mounting system
EPD GWP (outside of the system limits)18.83 kg CO₂e
EPD GWP (disposal phase)1.97 kg CO₂e
EPD GWP (manufacturing phase)81.32 kg CO₂e
EPD standard / LCA standard (norms)DIN EN ISO 14025,EN 15804 + A2
CO2 ayak izi (GWP) beşikten kapıya6,2499 kg CO2e / 1 Meter

Accessories

System accessories

Item no. 6067603

Straight connector FT
Type
RLVK 60 FT

Smallest selling unit: 10 piece

piece

Item no. 7070306

Joint plate DD
Type
SSLB 100 DD

Smallest selling unit: 20 piece

piece

Type
DRL 100 FT

Smallest selling unit: 3 m

m

Downloads

0 selected

Data sheet (1)
Catalogues & Flyers (4)
Declarations (5)
Certificates (2)
Instructions and Aid (4)
Product images (3)
3D data downloads (2)
Tender specifications (1)

Variants

Width
Maintain electrical functions
SKS 610 FT
Item no.
6056636
Length
3000
Width
100
Maintain electrical functions
evet
Plate thickness
1,5
Surface
Hot-dip galvanised
Material
Steel
SKS 615 FT
Item no.
6056644
Length
3000
Width
150
Maintain electrical functions
yes
Plate thickness
1,5
Surface
Hot-dip galvanised
Material
Steel
SKS 620 FT
Item no.
6056652
Length
3000
Width
200
Maintain electrical functions
evet
Plate thickness
1,5
Surface
Hot-dip galvanised
Material
Steel
SKS 630 FT
Item no.
6056679
Length
3000
Width
300
Maintain electrical functions
yes
Plate thickness
1,5
Surface
Hot-dip galvanised
Material
Steel
SKS 640 FT
Item no.
6056695
Length
3000
Width
400
Maintain electrical functions
hayır
Plate thickness
1,5
Surface
Hot-dip galvanised
Material
Steel
SKS 650 FT
Item no.
6056717
Length
3000
Width
500
Maintain electrical functions
no
Plate thickness
1,5
Surface
Hot-dip galvanised
Material
Steel
SKS 660 FT
Item no.
6056733
Length
3000
Width
600
Maintain electrical functions
no
Plate thickness
1,5
Surface
Hot-dip galvanised
Material
Steel
