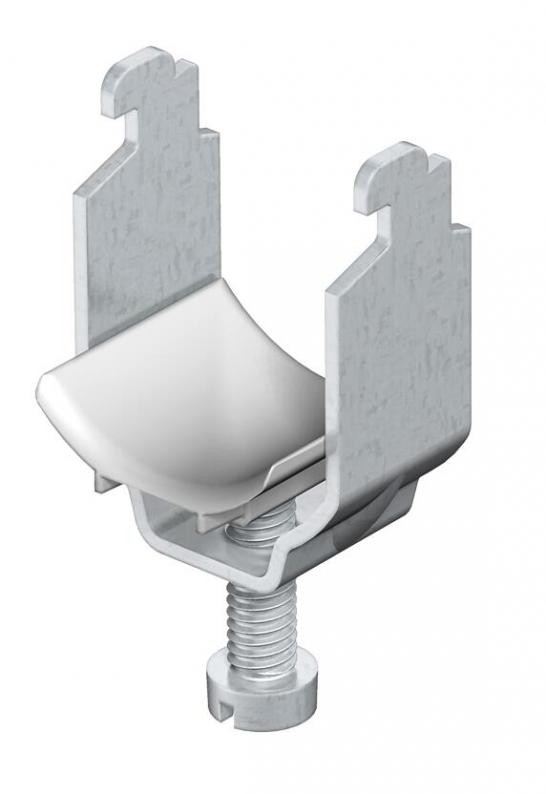

Clamp clip, single, plastic pressure trough, ALU

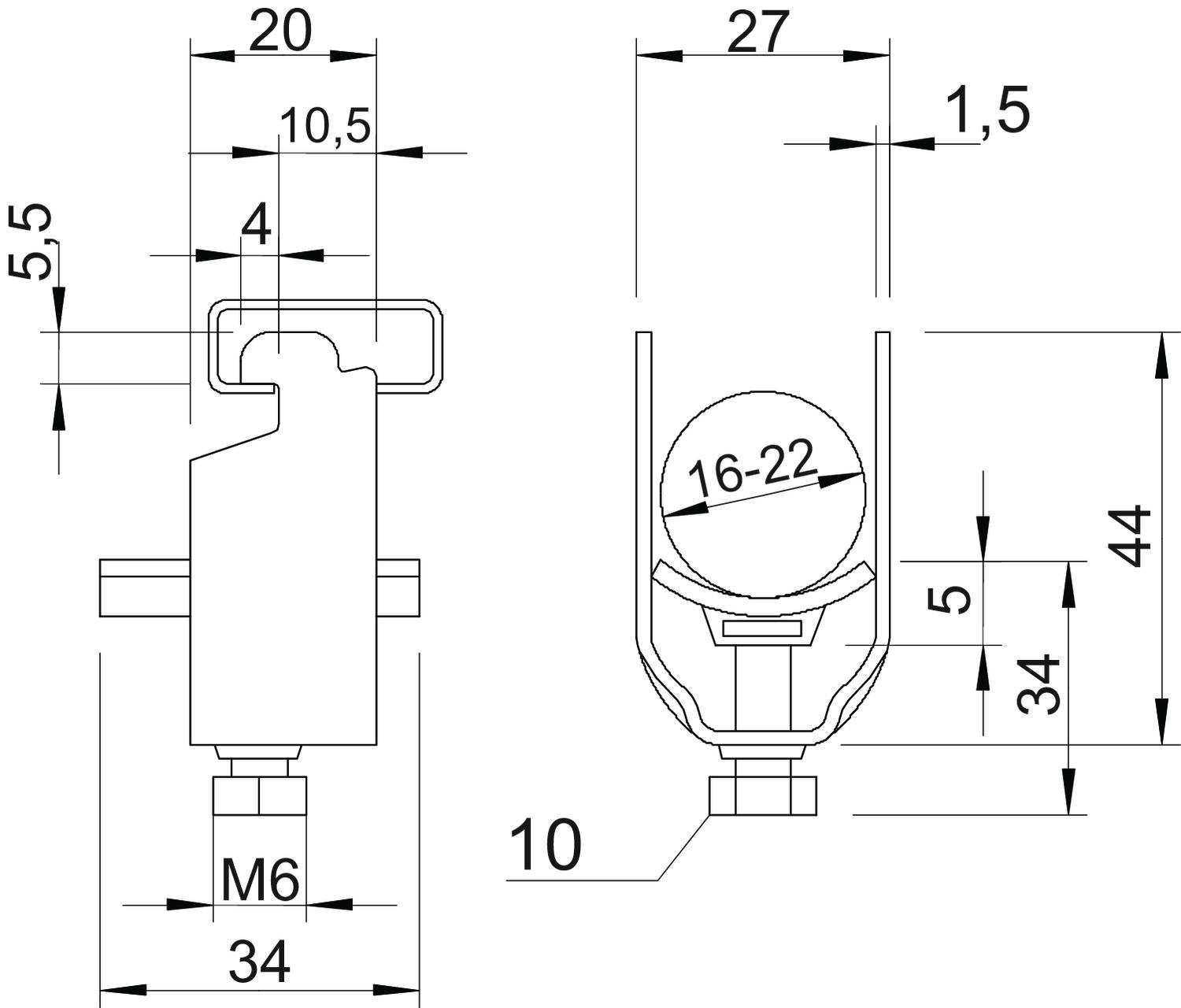

Suitable for all profile rails with slot width 11–12 mm; at least 6.5 mm clear internal height and at least 18.5 mm clear internal width; aluminium ALMg3 clip and bolt, polypropylene pressure trough, halogen-free, light grey RAL 7035.
(Metal pressure troughs on request).

The clamp clips 2056/N ALU for one cable according to VDE 0298-1 is suitable for individual routing of single-wire cables in rotary current networks, as there is no closed galvanic circuit. However, the lower mechanical resistance of the aluminium clips must be taken into account for short circuits, i.e. keep the distance between the clips as short as possible in a longitudinal direction and ensure sufficient side spacing between the cables.
