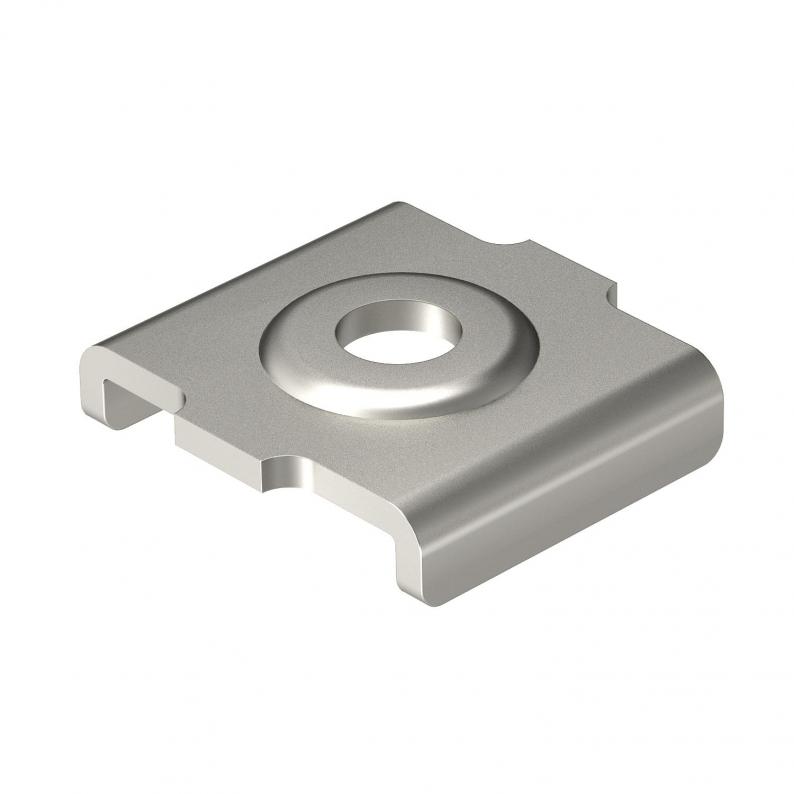

Clamping piece G
Type GKB 34 G
|Item no. 6016674
|EAN 4012195694052
Item no. / Type
6016674 / GKB 34 G
Smallest selling unit: 20 piece
20piece
piece
Description
Clamp for fastening mesh cable trays of width 50 mm to the floor.
Technical data

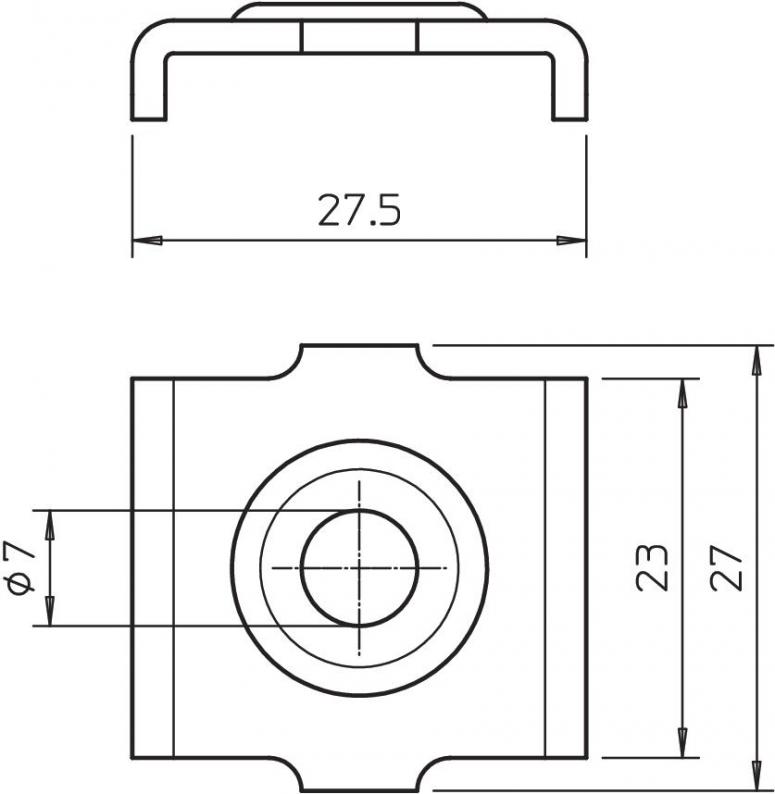

Dimensions
| Length | 27,5 mm |
|---|---|
| Width | 27 mm |
Technical data
| Paslanmaz çelik, mordanlı | no |
|---|---|
| Kafes kablo kanalı için uygun | yes |
| Kablo merdiveni için uygun | no |
| Kablo kanalı için uygun | no |
| Surface | Electrogalvanized |
| Material | Steel |
| Colour | zinc |
Environmental Data
| CO2 ayak izi (GWP) beşikten kapıya | 0,0345 kg CO2e / 1 Piece |
|---|
