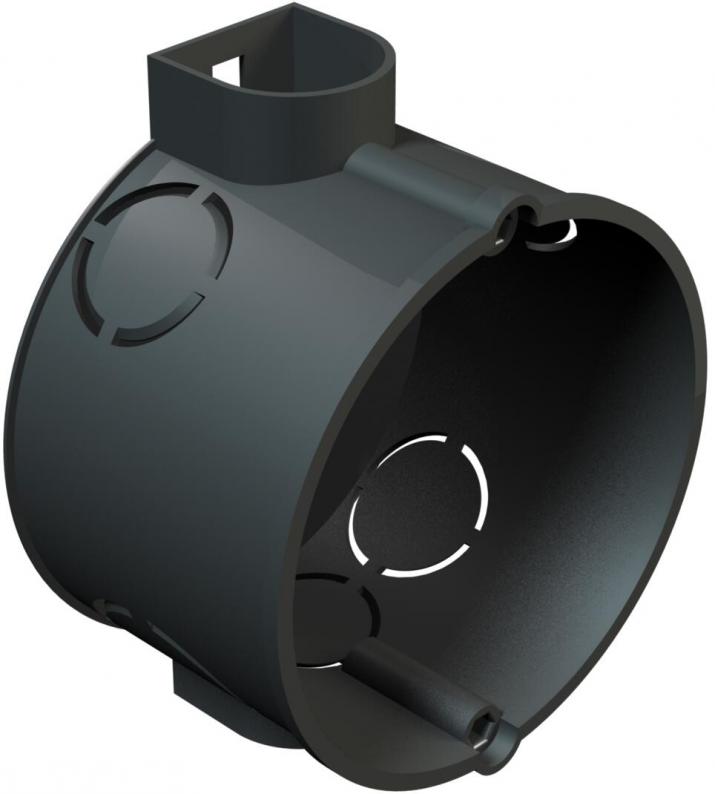

Concealed accessory box
Type UG 60 D
|Item no. 2003015
|EAN 4012195000204
Item no. / Type
2003015 / UG 60 D
Height
40 mm
Diameter
60 mm
No. of entries
7
for pipe diameter
20/25 mm
This item is a discontinued product!
Smallest selling unit: 25 piece
25piece
piece
Description
Device socket with torsion-resistant guaranteed standard combination spacing of 71 mm (to DIN 49 073-1) through Snap–lock coupling. 7 break-out openings for cables and pipes Ø 20 mm and Ø 25 mm. Combinable for spreading and screw fastening, low-lying plaster brackets, device bolt spacing 60 mm, for screw fastening with 3.2 mm self-tapping screws, with 2 screw bosses without screws, protection rating IP20.
Technical data
Dimensions
| Height | 40 mm |
|---|
Technical data
| Type of entry | break-out openings for cables and pipes Ø 20 mm and Ø 25 mm |
|---|---|
| Impact-resistant | yes |
| Floor height, min. | 42 mm |
| Number of switch boxes | 1 |
| Accessory screw clearance | 60 mm |
| Diameter | 60 mm |
| Halogen-free | yes |
| No. of entries | 7 |
| Device fixing | Screw or spread |
| Entry from rear | no |
| Protection rating | IP20 |
| Sealable | no |
| Maintain electrical functions | Without |
| Type of housing penetration | Pre-marking |
| With screening | no |
| for pipe diameter | 20/25 mm |
| With bolts | no |
| Airtight | no |
| With nail strap | no |
| Support | Tunnel support |
| Nominal cross-section, min. | 1,5 mm² |
| Nominal cross-section, max. | 2,5 mm² |
| Diameter, interior | 60 mm |
| Shape | Round |
| Equipment | Without |
| Cover | Without |
| Cover fastening | Not applicable |
| Flame-resistant | acc. to VDE 0471/DIN 695 Part 2-1, test temperature 650°C |

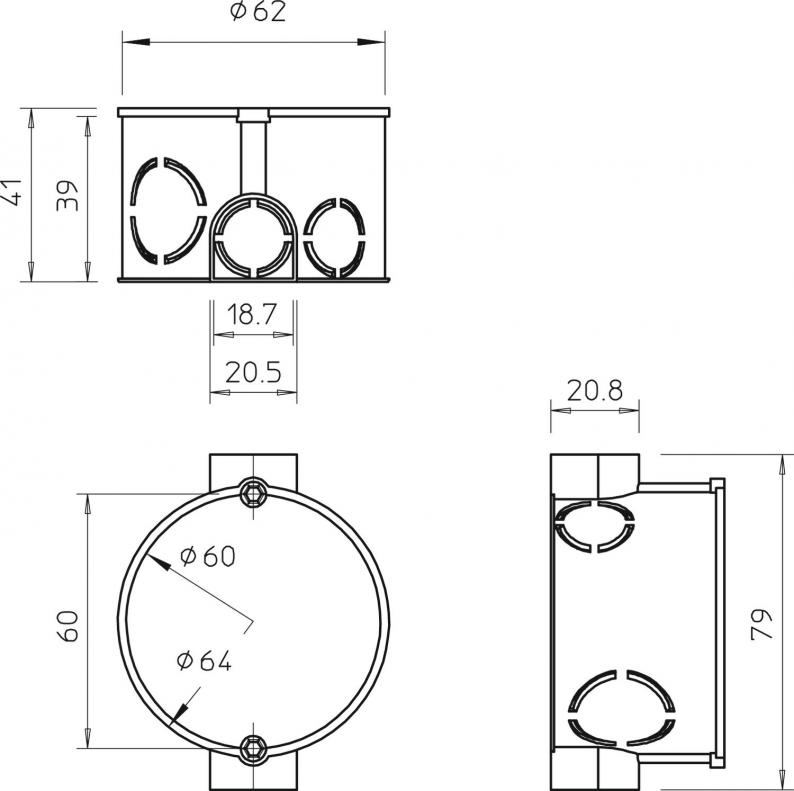

| Dimension | Ø60mm, H40mm |
| Material | Polystyrene |
| Colour | Black |
| Rated voltage | 400 V |
Environmental Data
0,0433 kg CO₂e / 1 PieceCO2 Footprint (GWP) Cradle-to-Gate
| CO2 Footprint (GWP) Cradle-to-Gate | 0,0433 kg CO₂e / 1 Piece |
|---|
