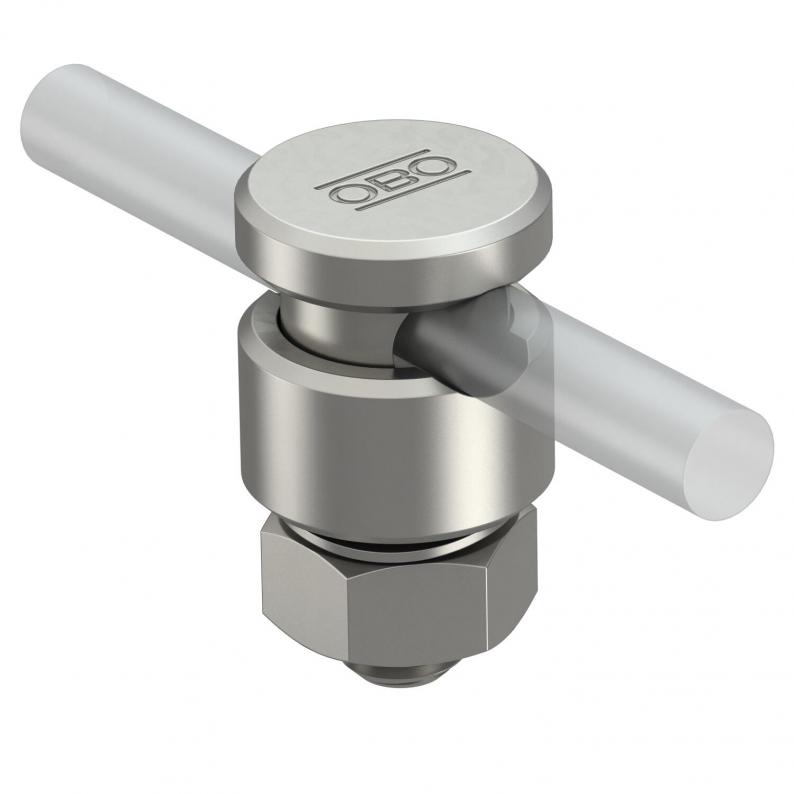

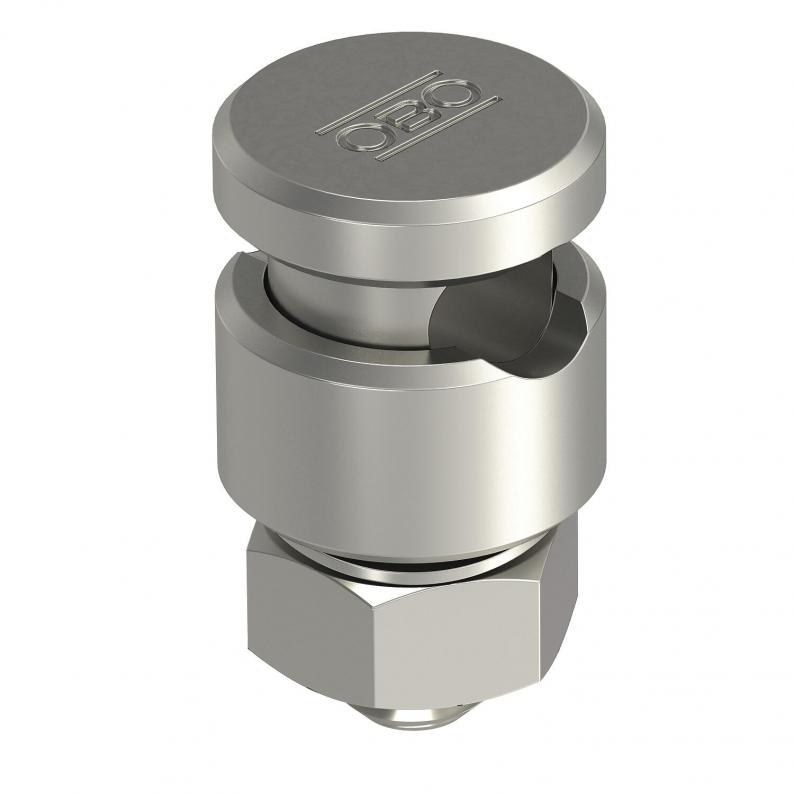

Connector, Rd 8−10 mm with pressure trough
Type 5001 N-VA
|Item no. 5304176
|EAN 4012195892809
Item no. / Type
5304176 / 5001 N-VA
Uyumluluk
Rd 8-10 mm
Smallest selling unit: 10 piece
10piece
piece
Description
• With 1 fix contact clamping screw, nut and serrated washer
• Including pre-mounted pressure sump, steel
• Conforms to the requirements according to DIN VDE 0185-305 (IEC 62305)
• Including pre-mounted pressure sump, steel
• Conforms to the requirements according to DIN VDE 0185-305 (IEC 62305)
Technical data
Technical data
| Ayırma plakası | no |
|---|---|
| Type of fastening screw | Clamping screw |
| Type of connector | Connectors |
| Suitable for connection | Round conductor Rd 8–10 / Rd 8–10 |
| Lightning current carrying capacity | N/50 kA |
| Uyumluluk | Rd 8-10 mm |
| Boyut | 8-10mm |
| Material | Stainless steel 1.4301 |
Environmental Data
| Packaging without plastic | yes |
|---|
| CO2 ayak izi (GWP) beşikten kapıya | 0,3383 kg CO2e / 1 Piece |
|---|
