Corner connector G
Type GEV 36 G
|Item no. 6016715
|EAN 4012196307876
Item no. / Type
6016715 / GEV 36 G
Width
23 mm
Smallest selling unit: 20 piece
20piece
piece
Description

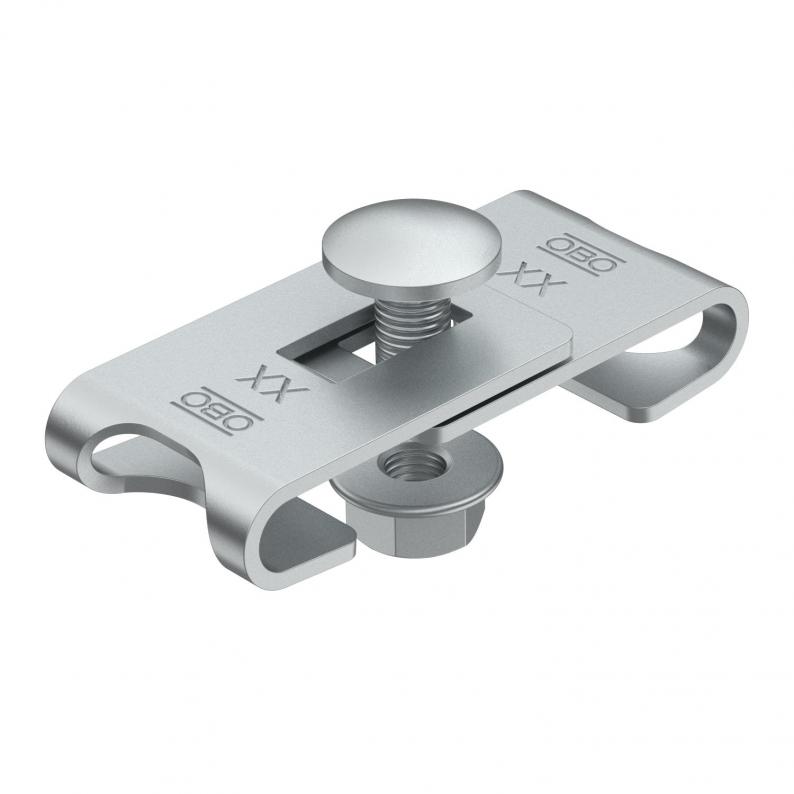

Corner connector for the creation of mesh cable tray bend elements.
Including FRS M6 x 12 bolt with flange nut.
Technical data

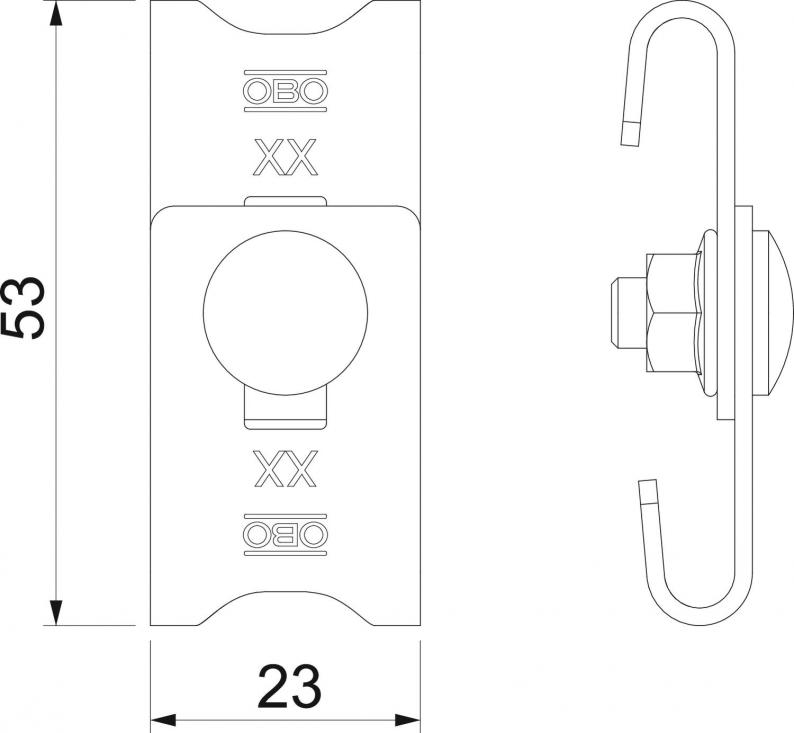

Dimensions
| Length | 56 mm |
|---|---|
| Width | 23 mm |
| Height | 16 mm |
Technical data
| Maintain electrical functions | no |
|---|---|
| Paslanmaz çelik, mordanlı | no |
| Kafes kablo kanalı için uygun | yes |
| Kablo merdiveni için uygun | no |
| Kablo kanalı için uygun | no |
| Ölçü | 42-54 x 23 |
| Suitable for mesh cable tray wire, min. | 3,9 mm |
| Suitable for mesh cable tray wire, max. | 4,9 mm |
| Version for | Corner connector |
| Connection type | Screw connector |
| Surface | Electrogalvanized |
| Material | Steel |
| Colour | zinc |
Environmental Data
| CO2 ayak izi (GWP) beşikten kapıya | 0,0733 kg CO2e / 1 Piece |
|---|
