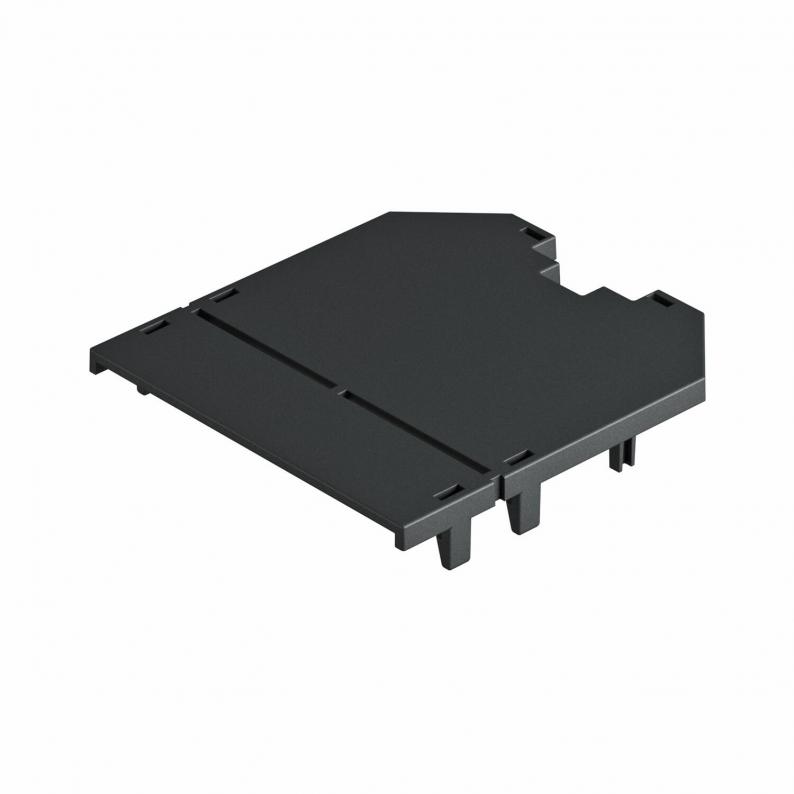

Cover plate for universal support UT3, blank
Type UT3 P0
|Item no. 7408743
|EAN 4012196435296
Item no. / Type
7408743 / UT3 P0
Smallest selling unit: 10 piece
10piece
piece
Description
Cover plate, blank, for closing off unused installation space of the UT3 universal support.
Plate can be reduced to 61 mm as required.
Plate can be reduced to 61 mm as required.
Technical data

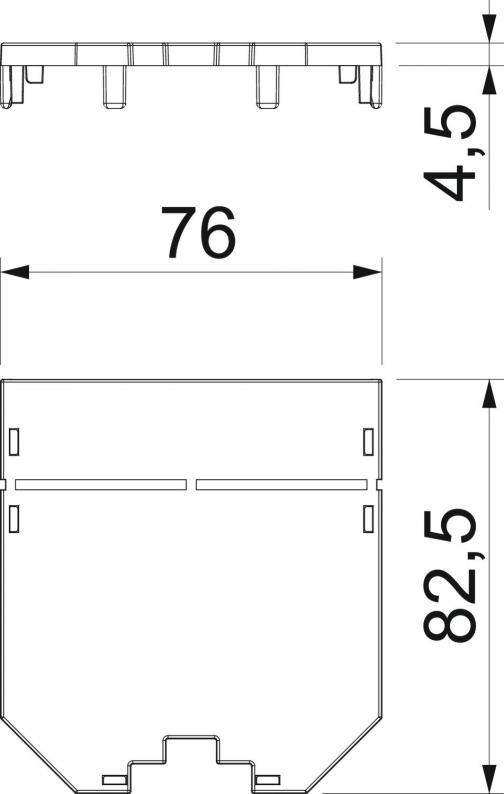

Dimensions
| Length | 82,5 mm |
|---|
Technical data
| Etiket alanı | no |
|---|---|
| Application | Mounting box |
| Blanking lid | yes |
| Installation technology | Grid M45 |
| Number of single openings | 0 |
| Number of double openings | 0 |
| Number of triple openings | 0 |
| Number of CEE/Perilex openings | 0 |
| Number of square openings | 0 |
| Number of round openings | 0 |
| Number of oval openings | 0 |
| Suitable for labelling panel | no |
| Division in UT3 | 1/2 |
| Fastening type | Lockable |
| Boyut | 82,5x76x2 |
| Material | Polyamide |
| Colour | Graphite black; RAL 9011 |
Environmental Data
| CO2 ayak izi (GWP) beşikten kapıya | 0,0714 kg CO2e / 1 Piece |
|---|
