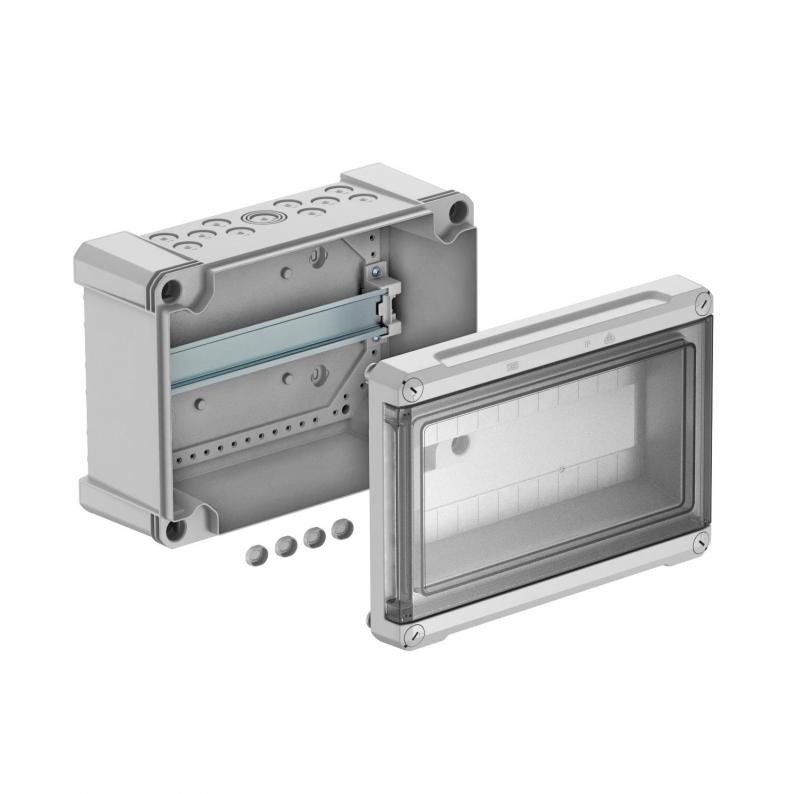

Distribution box, 12 division units, empty, polycarbonate

Small distributor for surface mounting, for the current sub-distribution in interior and exterior areas, according to IEC 439-3. With pre-mounted 35 mm hat profile rail. IP66 protection type and IK08 protection rating. Transparent cover to screw on, with cut-out. Including 4 screw cover caps.

- Protection-insulated for a maximum of 12 division units

- 11 break-out openings each of Ø 20 mm at the top and bottom

- 1 combination break-out opening each of Ø 20/25/32 mm at the top and bottom

- 4 screw cover caps
Nominal current 63 A
Power loss at 40 K 25.1 W
