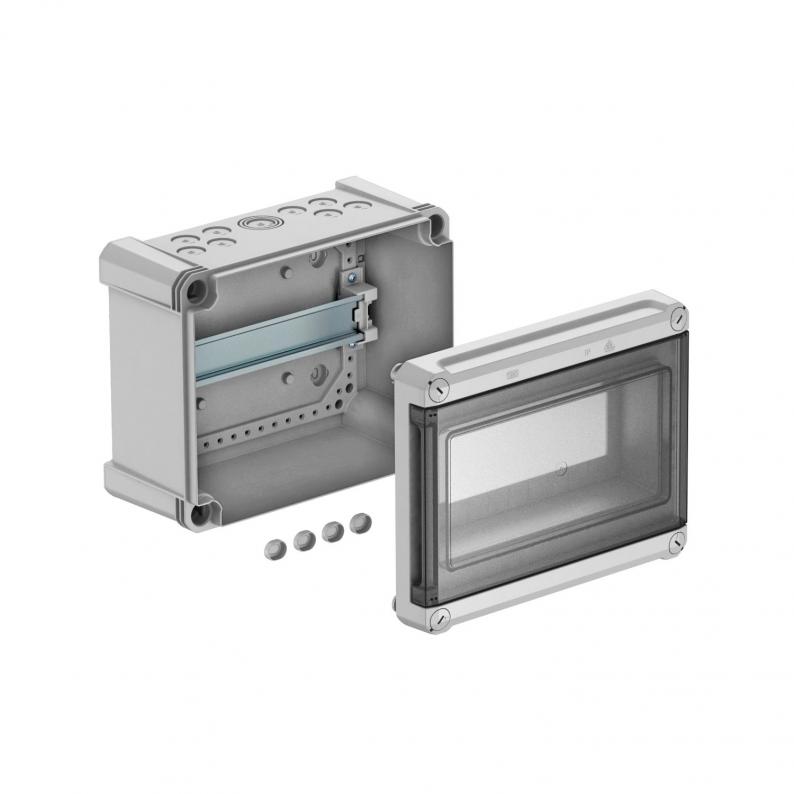

Distribution box, 9 division units, empty, polycarbonate
Type SDB 09L PC
|Item no. 2008868
|EAN 4012196465804
Item no. / Type
2008868 / SDB 09L PC
Length
241 mm
Width
191 mm
Height
126 mm
Smallest selling unit: 1 piece
1piece
piece
Description
Small distributor for surface mounting, for the current sub-distribution in interior and exterior areas, according to IEC 439-3. With pre-mounted 35 mm hat profile rail. IP66 protection type and IK08 protection rating. Transparent cover to screw on, with cut-out. Including 4 screw cover caps.
- Protection-insulated for a maximum of 9 division units
- 8 break-out openings each of Ø 20 mm at the top and bottom
- 1 combination break-out opening each of Ø 20/25/32 mm at the top and bottom
- 4 screw cover caps
Nominal current 63 A
Power loss at 40 K 20.7 W
- Protection-insulated for a maximum of 9 division units
- 8 break-out openings each of Ø 20 mm at the top and bottom
- 1 combination break-out opening each of Ø 20/25/32 mm at the top and bottom
- 4 screw cover caps
Nominal current 63 A
Power loss at 40 K 20.7 W
Technical data
Dimensions
| Length | 241 mm |
|---|---|
| Width | 191 mm |
| Height | 126 mm |
Technical data
| Sıra sayısı | 1 |
|---|---|
| Şeffaf kapak | evet |
| DIN Rayı | evet |
| With mounting plate | hayır |
| Bölümlendirme ünitelerinin genişliği | 9 |
| Koruma sınıfı | IP66 |
| Nominal current | 63 A |
| Anma gerilimi | 400 V |
| Extension option | evet |
| EMC version | hayır |
| Protection rating IK code | IK08 |
| With lock | hayır |
| Mounting type, consumer units | Yapı |
| Cover type | Cover |
| Version, small distributor cover | With cut-out |
| Boyut | 240x191x125 |
| Material | Polycarbonate |
| Colour | Light grey; RAL 7035 |
Environmental Data
| Packaging made completely from recycled cardboard. | evet |
|---|---|
| Packaging without plastic | evet |
| CO2 ayak izi (GWP) beşikten kapıya | 3,8822 kg CO2e / 1 Adet |
|---|
