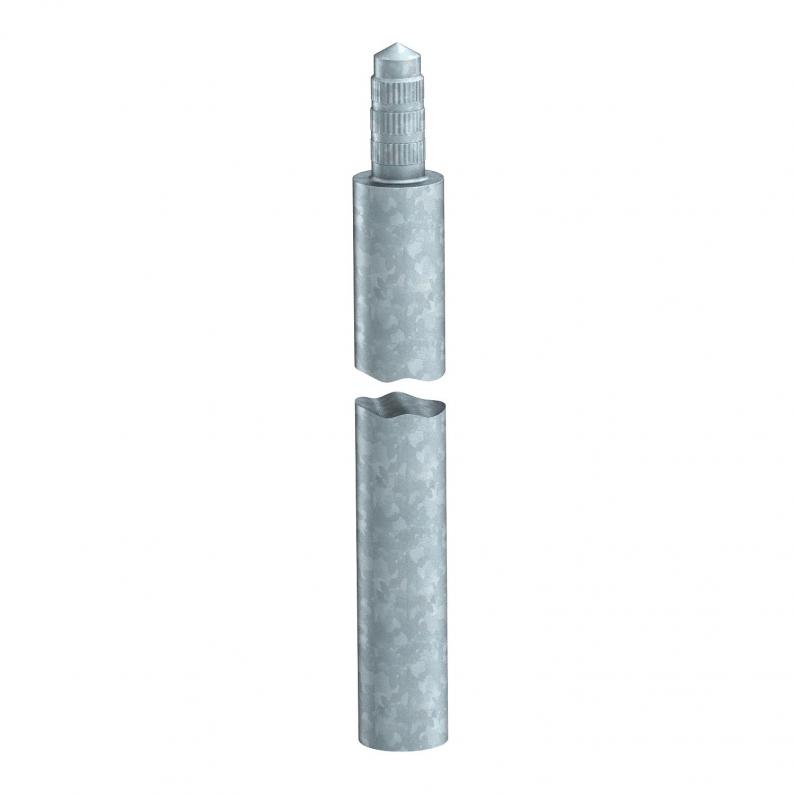

Earth rod for standard applications, hot galvanised, 25 mm
Type 219 25 ST FT
|Item no. 5000769
|EAN 4012195111047
Item no. / Type
5000769 / 219 25 ST FT
Length
1500 mm
External diameter
25 mm
Material
Steel
Smallest selling unit: 5 piece
5piece
piece
Description
219/.. ST: Standart uygulamalar için çubuk topraklayıcı:
• Korozyona karşı yüksek dayanım
• 70 µm çinko kaplama
• Tespit etmek için saplamalı ve delikli
• İki kabartılı alana sahip yuvarlak saplama
• VDE 0185-305'e (IEC 62305) uygundur
• Korozyona karşı yüksek dayanım
• 70 µm çinko kaplama
• Tespit etmek için saplamalı ve delikli
• İki kabartılı alana sahip yuvarlak saplama
• VDE 0185-305'e (IEC 62305) uygundur
Technical data

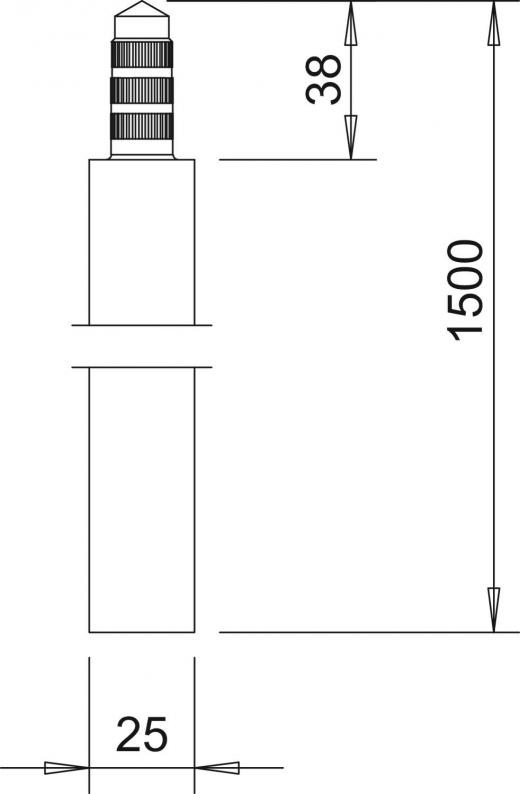

Dimensions
| Length | 1500 mm |
|---|
Technical data
| Profile type | Round D=25 mm |
|---|---|
| External diameter | 25 mm |
| Short-circuit current (50 HZ)(1 s;≤300°C) | 12,3 kA |
| Lightning current carrying capacity | H/100 kA |
| Boyut | 1,5m |
| Surface | Hot-dip galvanised |
| Material | Steel |
Environmental Data
| CO2 ayak izi (GWP) beşikten kapıya | 15,7568 kg CO2e / 1 Adet |
|---|
Accessories
Mounting accessories
Article
Type
Item no.
Amount
2710 25 FT
5001226
Smallest selling unit: 5 piece
5piece
piece
2730 25 FT
5001412
Smallest selling unit: 5 piece
5piece
piece
2760 25 FT
5001668
Smallest selling unit: 5 piece
5piece
piece
Item no. 3041956
Driving spike for ST and BP earth rodType
1819 25BP
Smallest selling unit: 5 piece
5piece
piece
Item no. 3042251
Driving head for ST, BP and OMEX earth rodsType
1820 25
Smallest selling unit: 1 piece
1piece
piece
Item no. 5001226
Connection clip for earthing rod to round cables Rd 8−10Type
2710 25 FT
Smallest selling unit: 5 piece
5piece
piece
