Earth rod OMEX, hot galvanised, 25 mm

Earth rod OMEX, hot galvanised, 25 mm

Type 219 25 OMEX FT
|
Item no. 5000025
|
EAN 4012195371359
Show all variants
Item no. / Type
5000025 / 219 25 OMEX FT
Length
1500 mm
External diameter
25 mm
Material
Steel

Smallest selling unit: 5 piece

piece

Description

219/..: Çok dayanıklı tipte çubuk topraklayıcı

• DIN 48852'ye uygun, Form Z, "OMEX" sistemi
• Tespit etmek için saplamalı ve delikli
• Sertleştirilmiş çelik pimli
• FT versiyonu, min. 60 µm çinko kaplamadır
• VDE 0185-305'e (IEC 62305) uygundur
  • Yıldırım akımı test edilip onaylandı
  • CO₂ footprint (PCF)

Technical data

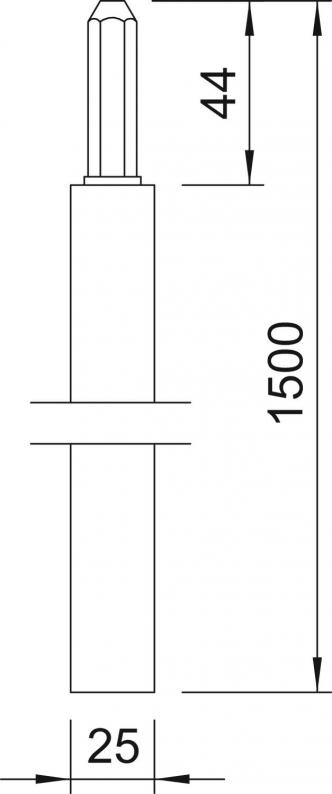

Dimensions

Length1500 mm
Dimension D25 mm

Technical data

Profile typeRound D=25 mm
External diameter25 mm
Short-circuit current (50 HZ)(1 s;≤300°C)12,3 kA
Lightning current carrying capacityH/100 kA
Boyut1,5m
SurfaceHot-dip galvanised
MaterialSteel

Environmental Data

CO2 ayak izi (GWP) beşikten kapıya15,9491 kg CO2e / 1 Adet

Accessories

Mounting accessories
Type
1819 25

Smallest selling unit: 5 piece

piece

Type
1820 25

Smallest selling unit: 1 piece

piece

Type
2710 25 FT

Smallest selling unit: 5 piece

piece
