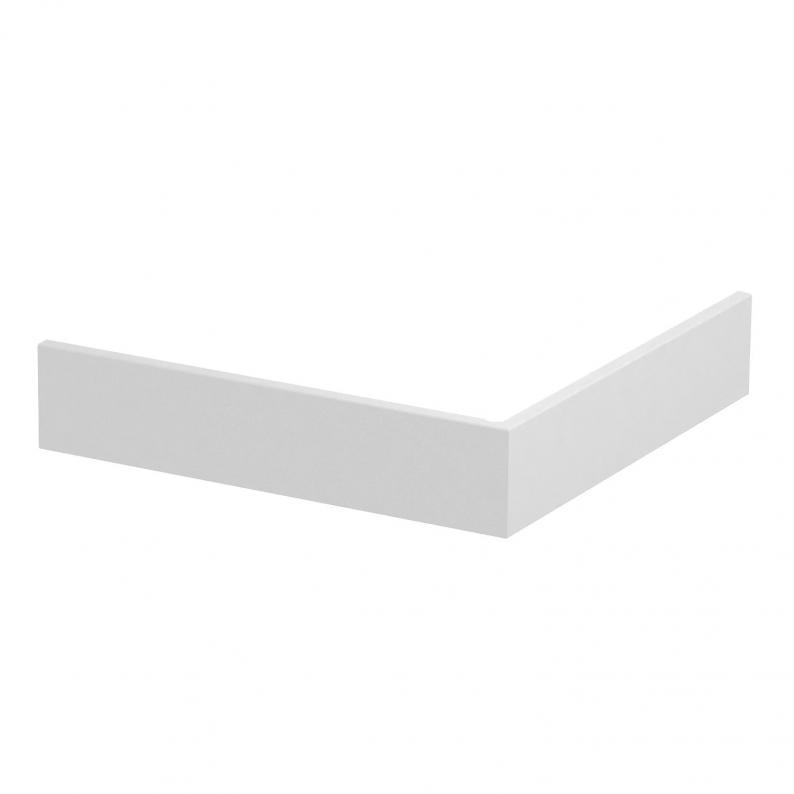

External corner cover, smooth

Type GKH-OTGARW
|
Item no. 6114230
|
EAN 4012196450893
Item no. / Type
6114230 / GKH-OTGARW
Width
76,5 mm
Colour
Pure white; RAL 9010

Smallest selling unit: 1 piece

piece

Description

PC/ABS external corner cover, smooth surface.

  • Alman Elektrik, Elektronik ve Bilgi Teknolojileri Birliği
  • Halojen içermez; Klor, flüor ve brom içermez
  • Communautés Européennes, AB Yönetmelikleri uyarınca AB Uygunluk Beyanı
  • UKCA declaration of conformity
  • CO₂ footprint (PCF)

Technical data

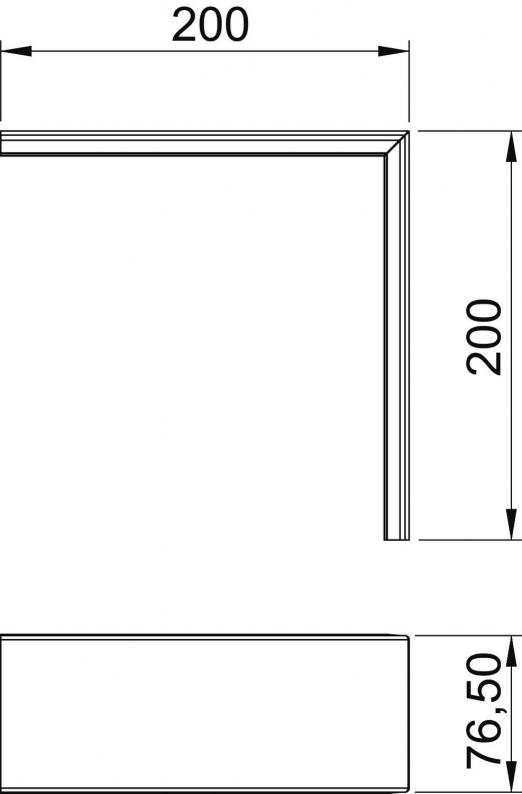

Dimensions

Length200 mm
Width76,5 mm
Height12 mm

Technical data

Halojen İçermezyes
Koruyucu folyoyes
Koruma sınıfıIP30
Üst parçaların montaj şekliInternal
Protection rating IK codeIK08
Kullanılabilir sıcaklık aralığı min.-15 °C
Kullanılabilir sıcaklık aralığı maks.90 °C
MaterialPolycarbonate/Acrylnitrile-butadiene-styrene
ColourPure white; RAL 9010

Environmental Data

CO2 ayak izi (GWP) beşikten kapıya0,8003 kg CO2e / 1 Piece

Downloads

0 selected

Data sheet (1)
Catalogues & Flyers (2)
Declarations (4)
Certificates (1)
Instructions and Aid (2)
Product images (2)
3D data downloads (1)
Tender specifications (1)

Variants

GKH-OTGARW
Item no.
6114230
Width
76,5
Colour
Pure white; RAL 9010
