External fastening or connection
Type AV-S
|Item no. 2007990
|EAN 4012196478095
Item no. / Type
2007990 / AV-S
Width
23 mm
Height
3,8 mm
Smallest selling unit: 20 piece
20piece
piece
Description

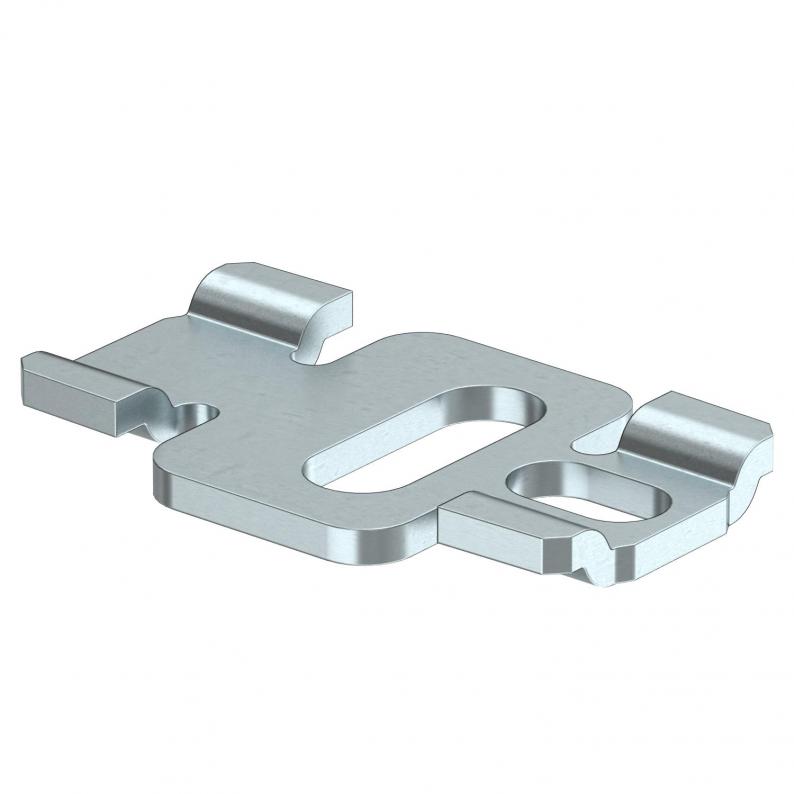

The convenient external fastening/connection means the cable boxes and small distributors of the S and SDB series can be fastened easily to a wall. Because they fasten outside the cable box, the possibility of voltage carry over is ruled out.
The external fastening/connection can also be used for connecting several boxes with one another. Time savings thanks to smaller number of fastening drill holes required.
The junction box fulfils the protection type test requirements to IP 67 according to DIN EN 60529, VDE0470-1:2014 (EN 60529/AC:2016)
The external fastening/connection can also be used for connecting several boxes with one another. Time savings thanks to smaller number of fastening drill holes required.
The junction box fulfils the protection type test requirements to IP 67 according to DIN EN 60529, VDE0470-1:2014 (EN 60529/AC:2016)
The junction box is tested according to DIN EN 60670-1, VDE 0606-1:2014 (EN 60670-1:2005 + Cor.:2007 + Cor.:2010 + A1:2013) and DIN EN 60670-22, VDE 0606-22:2007 (EN 60670-22:2006)
Technical data

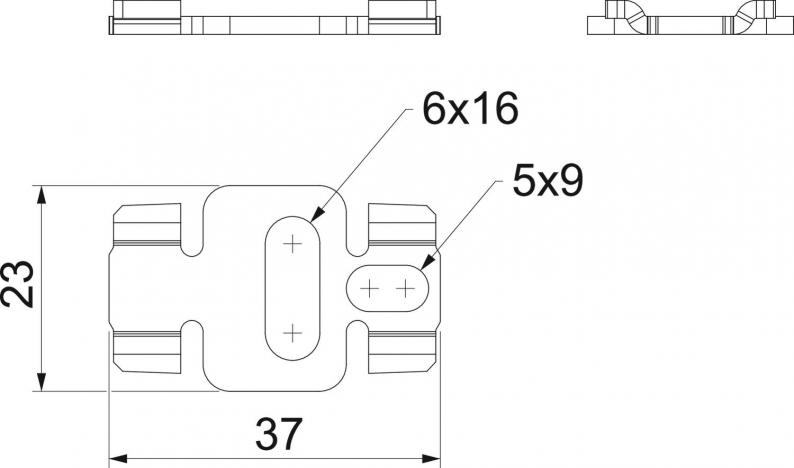

Dimensions
| Length | 37 mm |
|---|---|
| Width | 23 mm |
| Height | 3,8 mm |
Technical data
| Boyut | 6mm |
|---|---|
| Surface | Bright, treated |
| Material | Stainless steel |
Environmental Data
| Packaging made completely from recycled cardboard. | evet |
|---|---|
| Packaging without plastic | evet |
| CO2 ayak izi (GWP) beşikten kapıya | 0,2749 kg CO2e / 1 Adet |
|---|
Downloads
0 selected
Data sheet (1)
Catalogues & Flyers (4)
Declarations (4)
Certificates (1)
Instructions and Aid (1)
Product images (2)
Tender specifications (1)
