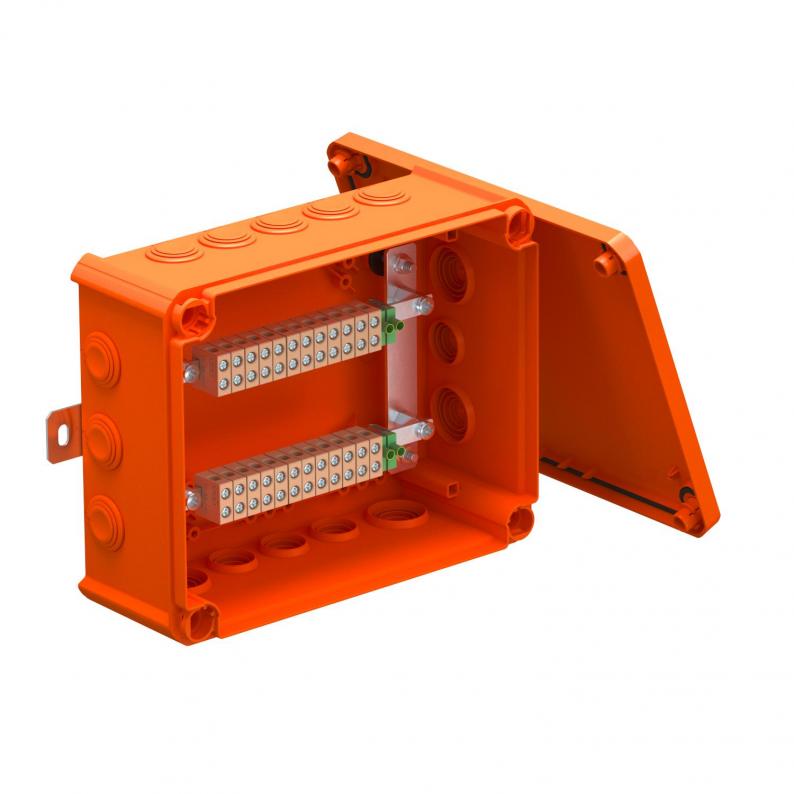

FireBox T250, with plug-in seals, for data technology, 4x24
Type T250ED 4x24AD
|Item no. 7205770
|EAN 4012196812196
Item no. / Type
Clear internal dimensions
Smallest selling unit: 1 piece
1piece
piece
Description
Connection box for data technology with soft plug-in seals. Pairs of high-temperature-resistant ceramic terminals, suitable for data cables. Green-yellow labelled protective conductor/shield terminal. Fastening on easily accessible external flaps. Approved for cable systems that maintain the electrical function according to DIN 4102 Part 12 with the classes E30, E60 and E90. Ceramic clamps have been tested according to DIN EN 60998-2-1:2004.
Including 2x MMSplus P 6x35 screw ties.
Including 2x MMSplus P 6x35 screw ties.
Technical data

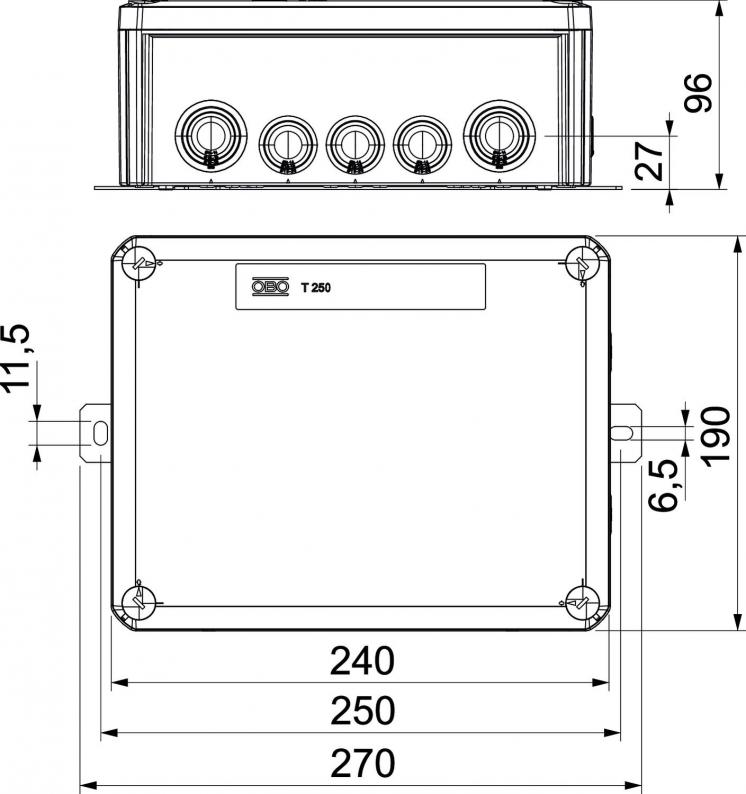

Dimensions
| Length | 240 mm |
|---|---|
| Width | 190 mm |
| Height | 95 mm |
| Clear internal dimensions | 225x173x86 mm |
| Dimension L | 240 mm |
| Dimension B | 190 mm |
| Dimension H | 95 mm |
| Dimension L1 | 250 mm |
| Dimension L2 | 270 mm |
Technical data
| Darbeye dayanıklı | no |
|---|---|
| Halojen İçermez | yes |
| Giriş sayısı | 10 |
| Number of terminals | 28 |
| Arkadan giriş | no |
| Şeffaf kapak | no |
| Koruma sınıfı | IP66 |
| Anma gerilimi | 660 V |
| Expandable | no |
| Kapaklı | yes |
| Sealable | no |
| For Ex zone | Without |
| Maintain electrical functions | E 90 |
| Explosion-tested version | no |
| Type of housing penetration | Cuttable stepped membrane |
| Ekranlamalı | no |
| Weatherproof | no |
| For Ex zone gas | Without |
| For Ex zone dust | Without |
| Anma kesiti min. | 0,5 mm² |
| Anma kesiti maks. | 4 mm² |
| Shape | Rectangular |
| Equipment | Terminal |
| Cover | Not transparent |
| Cover fastening | Screwed |
| Boyut | 240x190x95 |
| Material | Polypropylene |
| Colour | Pastel orange; RAL 2003 |
| Single terminals | 24 |
| Protective terminal | 4 |
Environmental Data
| Packaging made completely from recycled cardboard. | yes |
|---|
| CO2 ayak izi (GWP) beşikten kapıya | 3,588 kg CO2e / 1 Piece |
|---|
