GAD design device installation trunking

Type GAD UEL
|
Item no. 6115775
|
EAN 4012195914075
Item no. / Type
6115775 / GAD UEL
Length
2000 mm

Smallest selling unit: 2 m

m

Description

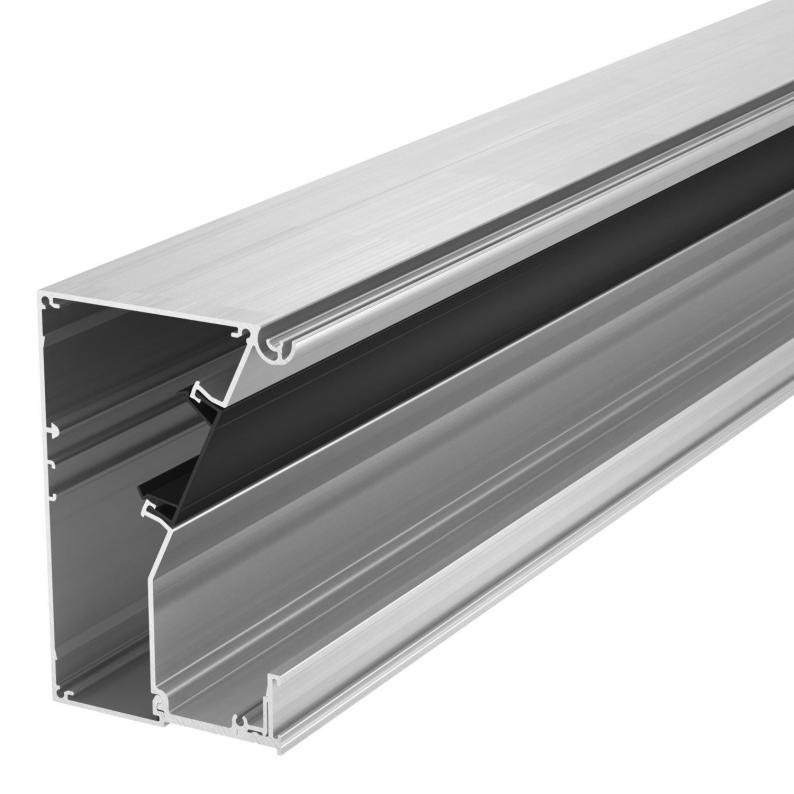

Base to create design device installation trunking of the GAD series. 45 mm system opening for acceptance of Modul 45 switch and connection devices and appropriate PVC and aluminium covers of the Rapid 45 series. The trunking base can be completed with trunking covers in the "Swing", "Soft" or "Style" design. The GAD OTA cover adapters are essential and must be planned on the trunking section with a max. spacing of 50 cm. A GAD OTD spacer must be placed between the trunking covers. In the as-delivered state, the 45 mm system is closed off with a black trunking cover.

  • Communautés Européennes, AB Yönetmelikleri uyarınca AB Uygunluk Beyanı
  • UKCA declaration of conformity
  • CO₂ footprint (PCF)

Technical data

Dimensions

Length2000 mm
Width140 mm
Height114 mm

Technical data

Tabanda montaj deliğino
Usable cross-section5880 mm²
Halojen İçermezyes
Geçmeli seperatör sayısı1
Kablo tutucu mandalno
Koruyucu folyoyes
Kanal bağlantı elemanıno
Simetrikno
Rectangular shapeyes
Üst parça sayısı1
Rear panel version (inner side)Continuous C profile
Üst parçaların montaj şekliInternal
Cover suppliedyes
Kanal genişliği45 mm
Boyut114x140x2000
SurfaceAnodised
MaterialAluminium
Colouraluminium
Antibacterial treatmentno

Environmental Data

CO2 ayak izi (GWP) beşikten kapıya38,4047 kg CO2e / 1 Meter

Accessories

System accessories
Type
2371 40

Smallest selling unit: 2 m

m

Type
OT GAD Swing EL

Smallest selling unit: 1 piece

piece

Type
OT GAD Soft EL

Smallest selling unit: 1 piece

piece
