Heavy mesh cable tray SGR 155 G
Type SGR 155 300 G
|Item no. 6003681
|EAN 4012195380153
Item no. / Type
Length
Width
Height
Maintain electrical functions
Usable cross-section
Tel çapı
Smallest selling unit: 3 m
3m
m
Description

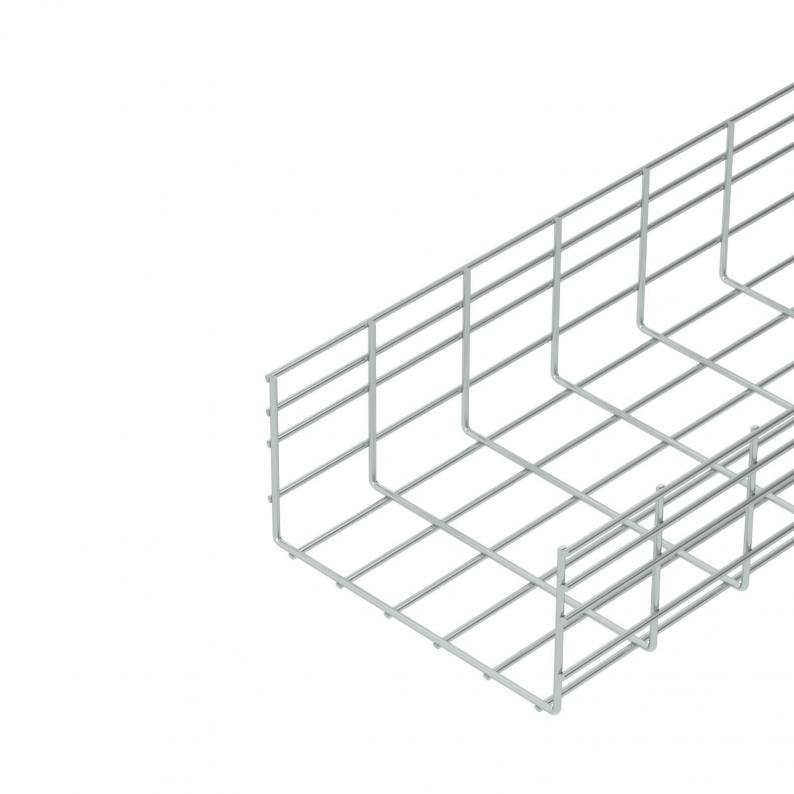

Mesh cable tray made of spot-welded steel wire of side height 155 mm.
Magnetic shield insulation without cover 15 dB, with cover 25 dB.
Magnetic shield insulation without cover 15 dB, with cover 25 dB.

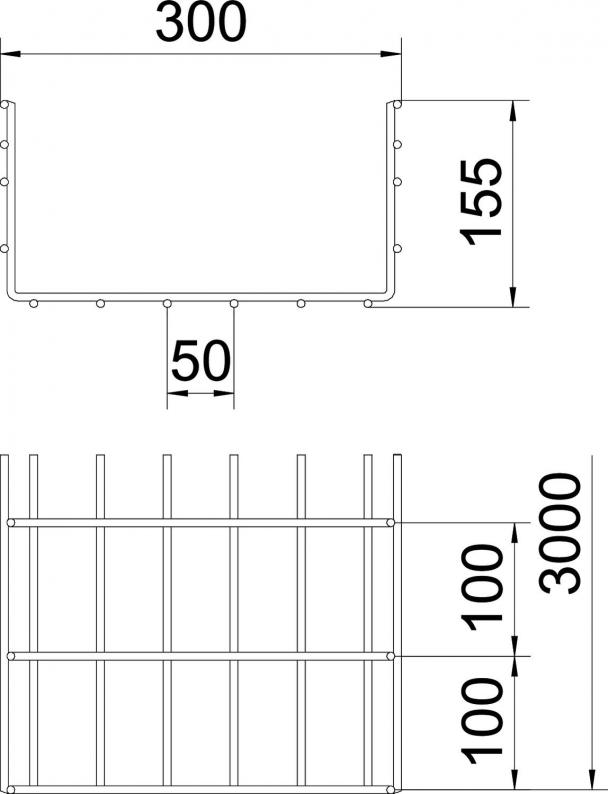

The grid width is 50 x 100 mm.
Technical data
Dimensions
| Length | 3000 mm |
|---|---|
| Width | 300 mm |
| Height | 155 mm |
| Dimension B | 300 mm |
Technical data
| Maintain electrical functions | no |
|---|---|
| Connector version | Without connectors |
| Wide-span version | no |
| Usable cross-section | 438 cm² |
| Paslanmaz çelik, mordanlı | no |
| Usable cross-section | 43800 mm² |
| Integrated partition | Without |
| Screwless connector | no |
| Profile shape | U-shaped |
| Tel çapı | 6 mm |
| Boyut | 155x300x3000 |
| Surface | Electrogalvanized |
| Material | Steel |
| Colour | zinc |
| Load test type according to IEC 61537 | Type II |
| Type of connector, cable support system | Screwed |
Loads
| Destek aralığı 1,0m | 4,1 kN/m |
|---|---|
| Destek aralığı 1,5m | 2,4 kN/m |
| Destek aralığı 2,0m | 1,55 kN/m |
| Destek aralığı 2,5m | 1,13 kN/m |
| Destek aralığı 3,0m | 0,95 kN/m |
| Destek aralığı 3,5m | 0,84 kN/m |
| Destek aralığı 4,0m | 0,6 kN/m |
Permitted cable tray/ladder load in kN/m without man load
Destekler arası mesafe, m
Müsaade edilen kN/m'de yan taşıyıcı profilde oluşan eğilme miktarı mm olarak
Test yönteminde yük şeması
mm olarak kablo kanalı/merdiveni genişliği ile yük eğrisi
Destek aralığına bağlı olarak yan taşıyıcı profilin eğilme miktarı eğrisi
Environmental Data
| EPD-verified | yes |
|---|---|
| Expiry date EPD | 10.07.2029 |
| Declaration number EPD | EPD-KTO-17.0 |
| Unit base EPD | 1 running metre + mounting system |
| EPD GWP (outside of the system limits) | 18.83 kg CO₂e |
| EPD GWP (disposal phase) | 1.97 kg CO₂e |
| EPD GWP (manufacturing phase) | 81.32 kg CO₂e |
| EPD standard / LCA standard (norms) | DIN EN ISO 14025,EN 15804 + A2 |
| CO2 ayak izi (GWP) beşikten kapıya | 8,1721 kg CO2e / 1 Meter |
|---|
Accessories
Mounting accessories
System accessories
Article
Type
Item no.
Amount
Downloads
0 selected
Data sheet (1)
Catalogues & Flyers (4)
Declarations (4)
Certificates (1)
Instructions and Aid (2)
Product images (3)
3D data downloads (1)
Tender specifications (1)
Variants
Type
Length
Width
Height
Maintain electrical functions
Usable cross-section
Tel çapı
Item no.
SGR 155 300 G
3000
300
155
hayır
438
6
6003681
SGR 155 450 G
3000
450
155
no
663
6
6003684
SGR 155 500 G
3000
500
155
hayır
738
6
6003685
SGR 155 600 G
3000
600
155
no
888
6
6003687
