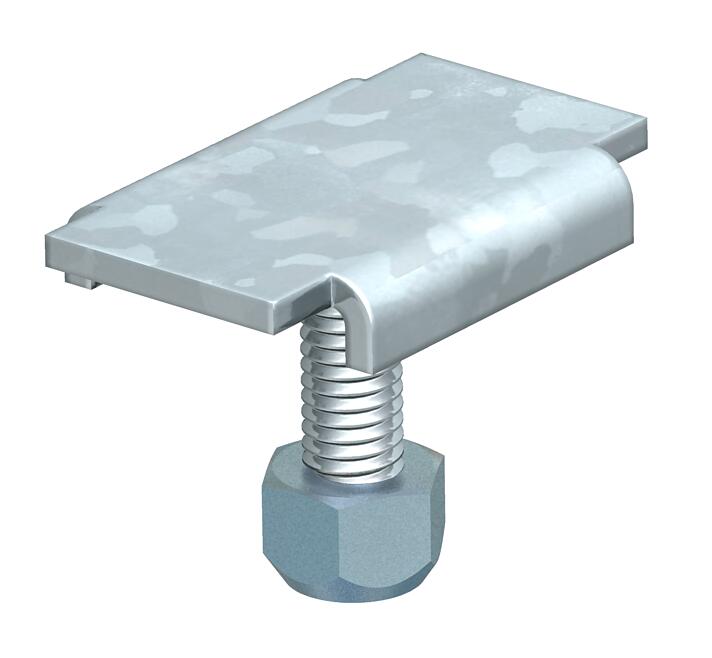

Hold-down clamp FT
Type KS 23 35 FT
|Item no. 6015174
|EAN 4012196012312
Item no. / Type
6015174 / KS 23 35 FT
Surface
Hot-dip galvanised
Material
Steel
Smallest selling unit: 100 piece
100piece
piece
Description
Clamp for fixing the mounting bracket, type MW 45 and MW 90, to the mesh cable tray, type CGR.
Including self-locking M6 nut.
Technical data
Technical data
| Paslanmaz çelik, mordanlı | no |
|---|---|
| Kafes kablo kanalı için uygun | yes |
| Kablo merdiveni için uygun | no |
| Kablo kanalı için uygun | no |
| Hole diameter | 6 mm |
| Boyut | M6x20 |
| Surface | Hot-dip galvanised |
| Material | Steel |
| Colour | zinc |
Environmental Data
| Packaging made completely from recycled cardboard. | yes |
|---|
| CO2 ayak izi (GWP) beşikten kapıya | 0,0427 kg CO2e / 1 Piece |
|---|
Downloads
0 selected
Data sheet (1)
Catalogues & Flyers (2)
Declarations (3)
Instructions and Aid (2)
Product images (2)
Tender specifications (1)
Variants
Type
Surface
Material
Item no.
KS 23 35 FT
Hot-dip galvanised
Steel
6015174
KS 23 35 FT
Item no.
6015174
Surface
Hot-dip galvanised
Material
Steel
