Hold-down clip
Type BC SGR A2
|Item no. 6016668
|EAN 4012196434152
Item no. / Type
6016668 / BC SGR A2
Smallest selling unit: 20 piece
20piece
piece
Description

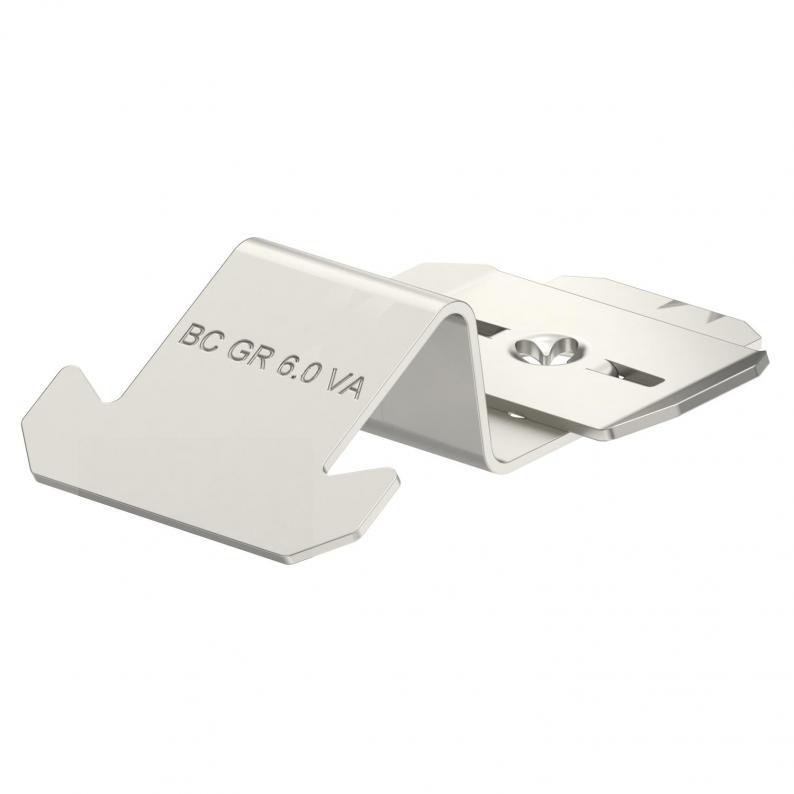

Hold-down clip for the screwless mounting of mesh cable trays onto MS profile rails with a slot width of 22 mm.
Technical data
Technical data
| Rustproof steel, pickled | no |
|---|---|
| With screw accessories | no |
| Version for | For wire Ø 6.0 mm |
| Suitable for profile shapes | C profile |
| Dimension | 82x33x17 |
| Surface | Bright, treated |
| Material | Stainless steel 1.4310 |
| Colour | stainless steel |

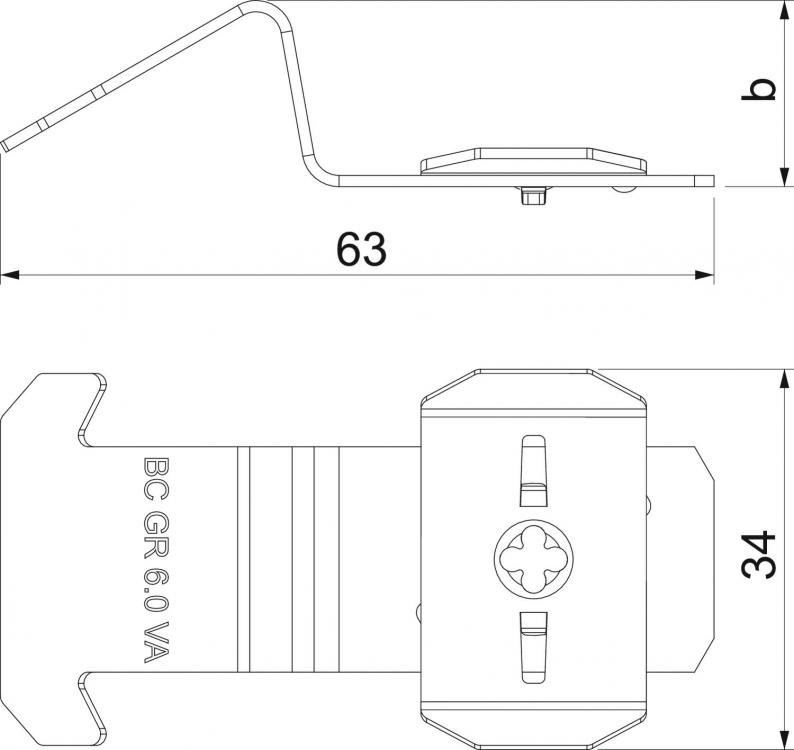

Dimensions
| Dimension b | 19 mm |
|---|
Environmental Data
0,1674 kg CO2e / 1 PieceCO2 Footprint (GWP) Cradle-to-Gate
| CO2 Footprint (GWP) Cradle-to-Gate | 0,1674 kg CO2e / 1 Piece |
|---|---|
| CO₂ Footprint (GWP) | 0,1674 kg CO₂e |
| Determination date of CO2 value | 2025-05-21T00:00:00.000+0200 |
| Declared Unit (LCA) | Units |
| Declared Unit Quantity (LCA) | 1 |
| Packaging without plastic | yes |
|---|
