isCon® conductor, Premium black
Type isCon PR 90 SW
|Item no. 5408018
|EAN 4012196591657
Item no. / Type
5408018 / isCon PR 90 SW
Diameter
23 mm
Equivalent separating distance s(e)/m (in air)
0,9
Kesit
35 mm²
Normal halka (m)
100
Smallest selling unit: 100 m
100m
m
Description
Please refer to the mounting instructions for information on routing the OBO isCon® Premium conductor.
• Highly voltage-resistant, insulated conductor
• Floating discharge-free
• Tested according to IEC/EN 62561-1 (VDE 0185-561-1) with H2/200 kA
• Equivalent separation distance se ≤ 0.90 m (air) and se ≤ 1.8 m (solid material)
• Tested according to IEC TS 62561-8 (VDE V 0185-561-8)
• Halogen-free
• Fire load 4.2 kWh/m
• Highly voltage-resistant, insulated conductor
• Floating discharge-free
• Tested according to IEC/EN 62561-1 (VDE 0185-561-1) with H2/200 kA
• Equivalent separation distance se ≤ 0.90 m (air) and se ≤ 1.8 m (solid material)
• Tested according to IEC TS 62561-8 (VDE V 0185-561-8)
• Halogen-free
• Fire load 4.2 kWh/m
Technical data
Technical data

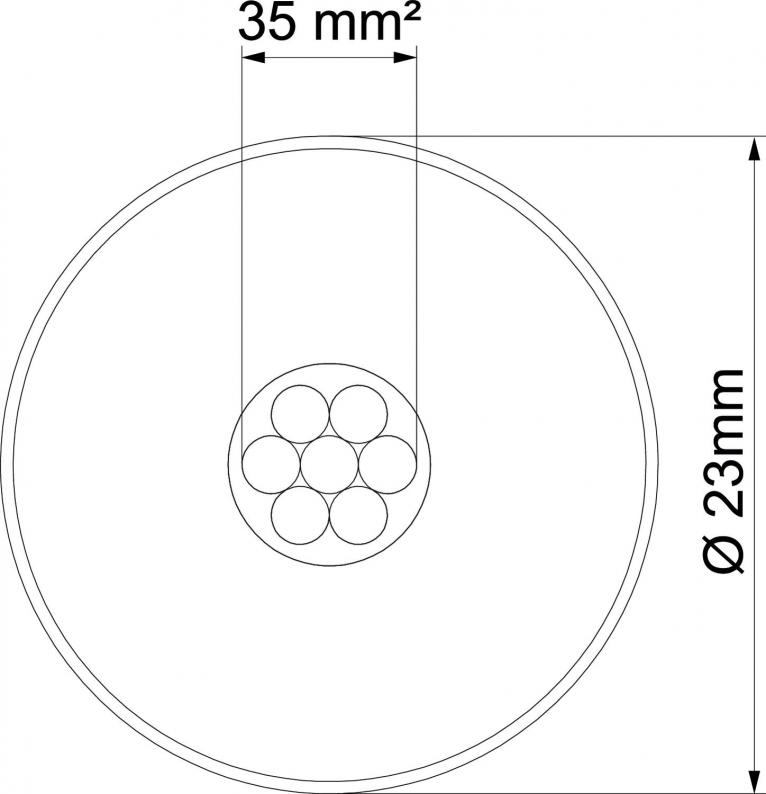

| Diameter | 23 mm |
|---|---|
| High voltage-resistant, insulated version | yes |
| Number of individual wires | 7 |
| Material property | Miscellaneous |
| Material jacket | EVA |
| Equivalent separating distance s(e)/m (in air) | 0,9 |
| Kesit | 35 mm² |
| Normal halka (m) | 100 |
| Boyut | Ø23mm |
| Colour | Black |
| Length tolerance ± | 5 % |
