Joint connector FT
Type GUV 6 FT
|Item no. 6016573
|EAN 4012196593873
Item no. / Type
6016573 / GUV 6 FT
Width
28 mm
Height
30 mm
Boyut
24x28x30
Surface
Hot-dip galvanised
Material
Steel
Smallest selling unit: 20 piece
20piece
piece
Description
Joint connector for mesh cable tray, type SGR.
Figure: Positioning and quantity of mesh cable tray connectors.
50–150 mm = 2 units
200–300 mm = 3 units
400–450 mm = 4 units
500–600 mm = 5 units
Figure: Positioning and quantity of mesh cable tray connectors.
50–150 mm = 2 units
200–300 mm = 3 units
400–450 mm = 4 units
500–600 mm = 5 units

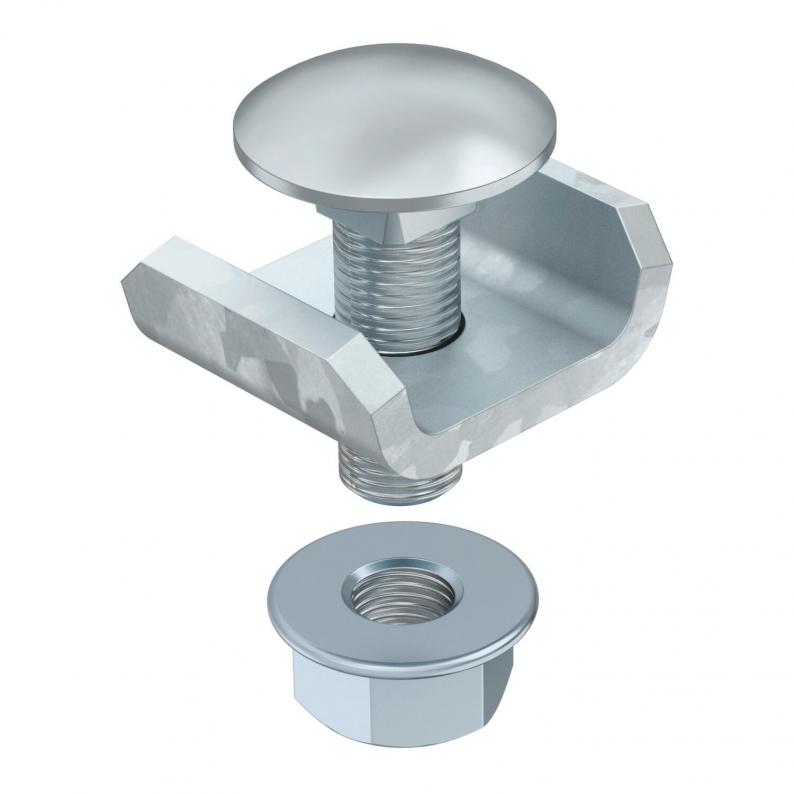

Including FRS M8 x 25 bolt with flange nut.

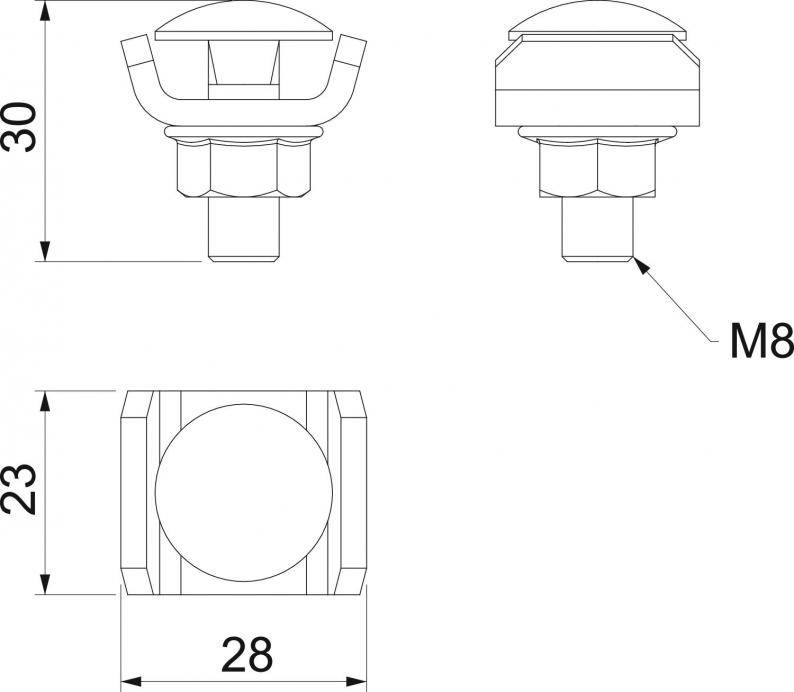

Technical data
Dimensions
| Length | 24 mm |
|---|---|
| Width | 28 mm |
| Height | 30 mm |
Technical data
| Maintain electrical functions | no |
|---|---|
| Paslanmaz çelik, mordanlı | yes |
| Kafes kablo kanalı için uygun | yes |
| Kablo merdiveni için uygun | no |
| Kablo kanalı için uygun | no |
| Adjustable connector, horizontal | no |
| Articulated connector, vertical | no |
| Ölçü | 24 x 28 |
| Suitable for mesh cable tray wire, min. | 6 mm |
| Connection type | Screw connector |
| Boyut | 24x28x30 |
| Surface | Hot-dip galvanised |
| Material | Steel |
| Colour | zinc |
Environmental Data
| Packaging made completely from recycled cardboard. | yes |
|---|
| CO2 ayak izi (GWP) beşikten kapıya | 0,1111 kg CO2e / 1 Piece |
|---|
