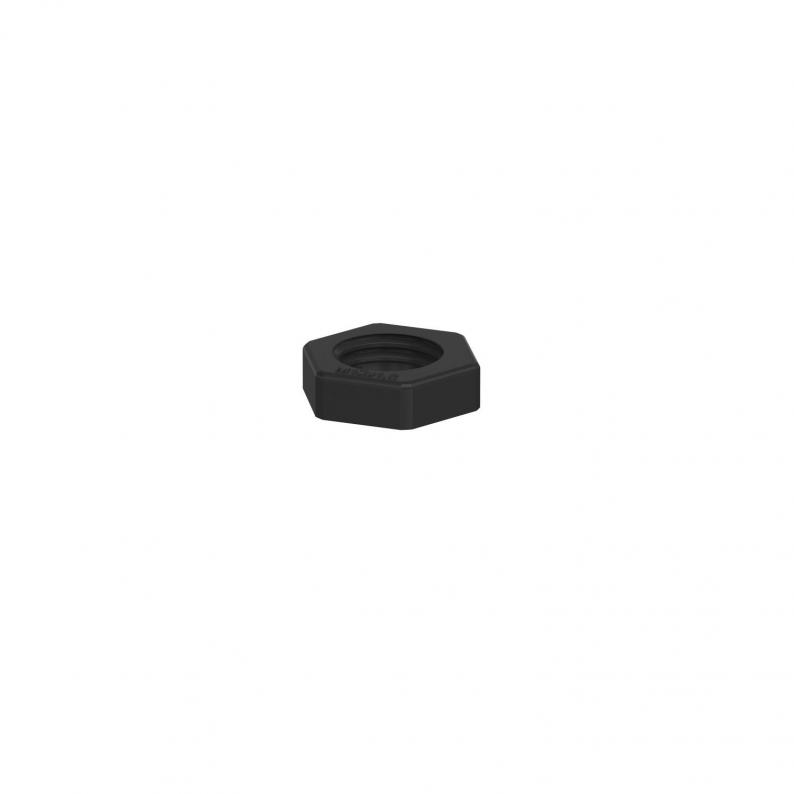

Locknut, metric thread, black

Locknut, metric thread, black

Type 116 M12 SW PA
|
Item no. 2049066
|
EAN 4012195089179
Show all variants
Item no. / Type
Thread
WAF

Smallest selling unit: 100 piece

piece

Description

Locknut DIN 46319, with metric thread IEC 423.
  • Halogen-free; without chlorine, fluorine and bromine
  • Communautés Européennes, EC declaration of conformity according to EC directives
  • UKCA declaration of conformity
  • Thread metric
  • CO₂ footprint (PCF)
  • Packaging without plastic
  • Packaging made entirely from recycled cardboard

Technical data

Technical data

Impact-resistantno
Halogen-freeyes
Fibre-glass reinforcedno
ThreadM12 x 1,5
Thread typeMetric
WAF17
Nominal thread size metric/PG12
DimensionM12
MaterialPolyamide
ColourBlack

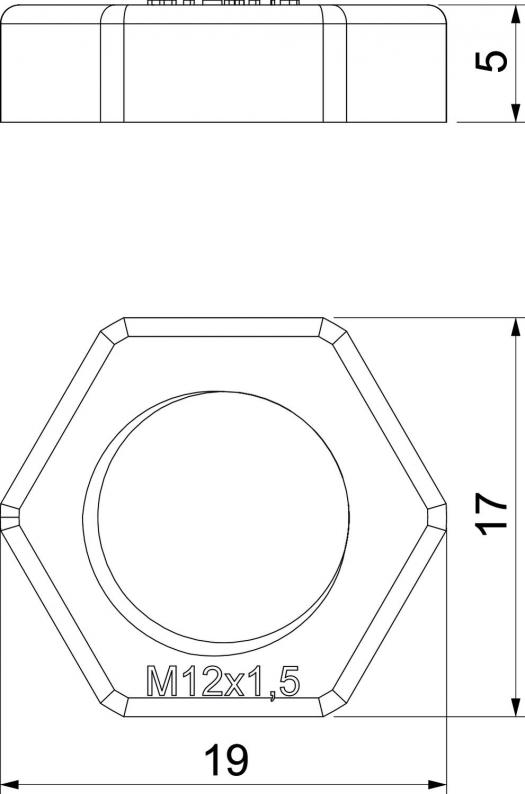

Dimensions

Dimension L5 mm
Dimension E19 mm

Environmental Data

0,0054 kg CO2e / 1 PieceCO2 Footprint (GWP) Cradle-to-Gate
Packaging made completely from recycled cardboard.yes
Packaging without plasticyes
CO2 Footprint (GWP) Cradle-to-Gate0,0054 kg CO2e / 1 Piece

Downloads

0 selected

Data sheet (1)
Catalogues & Flyers (3)
Declarations (4)
Instructions and Aid (1)
Product images (2)
3D data downloads (1)
Tender specifications (1)

Variants

Thread
WAF
116 M12 SW PA
Item no.
2049066
Thread
M12 x 1,5
WAF
17
116 M16 SW PA
Item no.
2049074
Thread
M16 x 1,5
WAF
22
116 M20 SW PA
Item no.
2049082
Thread
M20 x 1,5
WAF
26
116 M25 SW PA
Item no.
2049090
Thread
M25 x 1,5
WAF
32
116 M32 SW PA
Item no.
2049104
Thread
M32 x 1,5
WAF
41
116 M40 SW PA
Item no.
2049112
Thread
M40 x 1,5
WAF
50
