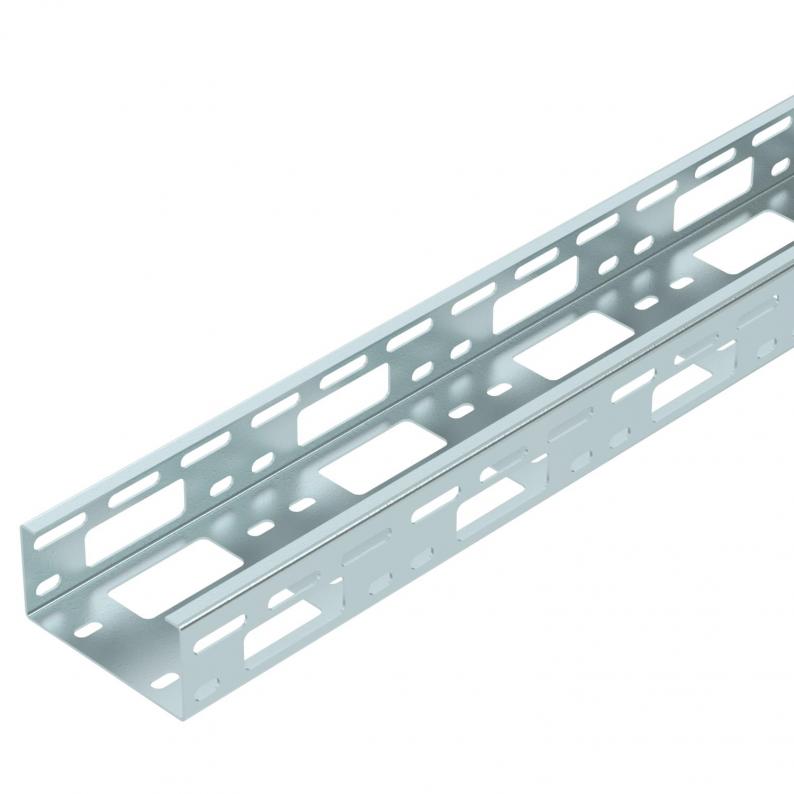

Luminaire support channel 100 FS

Luminaire support channel 100 FS

Type LTS 100 FS
|
Item no. 6075024
|
EAN 4012195247135
Show all variants
Item no. / Type
6075024 / LTS 100 FS
Length
6000 mm
Width
100 mm
Plate thickness
1,5 mm

Smallest selling unit: 6 m

m

Description

Perforated luminaire support tray for cable routing and luminaire mounting.
Magnetic shield insulation without cover 20 dB, with cover 50 dB.
  • Manyetik ekranlama sönümlemesi
  • Communautés Européennes, AB Yönetmelikleri uyarınca AB Uygunluk Beyanı
  • AZ küçük kanal, kenar yüksekliği 50 mm
  • Environmental Product Declaration (EPD)
  • CO₂ footprint (PCF)

Technical data

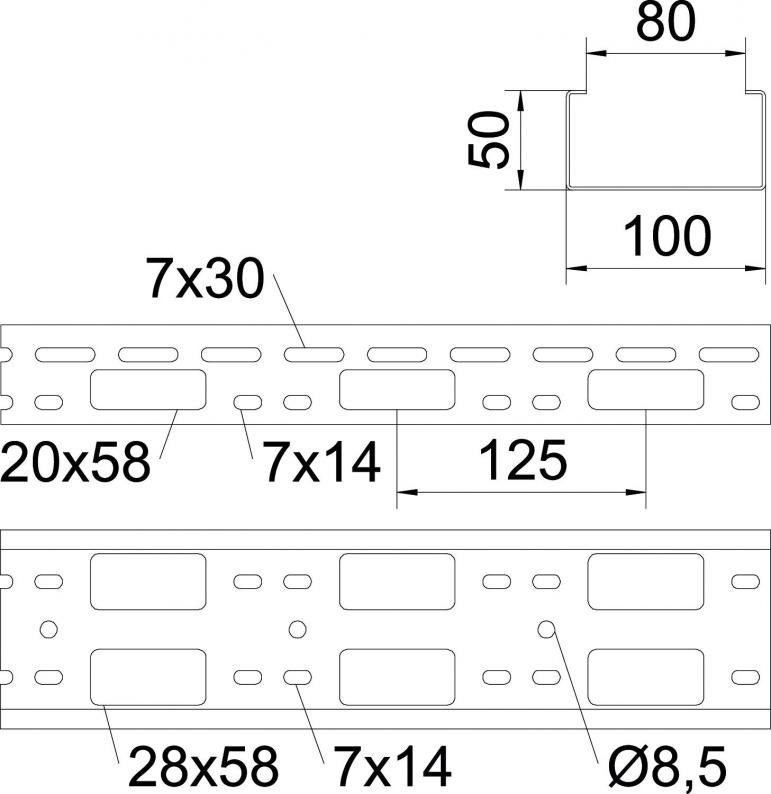

Dimensions

Length6000 mm
Width100 mm
Height50 mm

Technical data

Connector versionWithout connectors
Usable cross-section46 cm²
Plate thickness1,5 mm
Boyut50x100x6000
SurfaceStrip galvanized
MaterialSteel
Colourzinc

Loads

Destek aralığı 1,0m1,7 kN/m
Destek aralığı 1,5m1,5 kN/m
Destek aralığı 2,0m1 kN/m
Destek aralığı 2,5m0,6 kN/m
Destek aralığı 3,0m0,4 kN/m

Environmental Data

EPD-verifiedyes
Expiry date EPD10.07.2029
Declaration number EPD EPD-KTO-17.0
Unit base EPD1 running metre + mounting system
EPD GWP (outside of the system limits)18.83 kg CO₂e
EPD GWP (disposal phase)1.97 kg CO₂e
EPD GWP (manufacturing phase)81.32 kg CO₂e
EPD standard / LCA standard (norms)DIN EN ISO 14025,EN 15804 + A2
CO2 ayak izi (GWP) beşikten kapıya5,5598 kg CO2e / 1 Meter

Accessories

Mounting accessories
System accessories
Type
AHB 100 D5 FT

Smallest selling unit: 50 piece

piece

Downloads

0 selected

Data sheet (1)
Catalogues & Flyers (2)
Declarations (4)
Instructions and Aid (2)
Product images (3)
3D data downloads (2)
Tender specifications (1)

Variants

LTS 100 FS
Item no.
6075024
Length
6000
Width
100
Plate thickness
1,5
