Magic add-on tee 110 FS
Type RAAM 110 FS
|Item no. 6041920
|EAN 4012195882039
Item no. / Type
Width
This item is a discontinued product!
You can find the successor product here.
Smallest selling unit: 1 piece
1piece
piece
Description

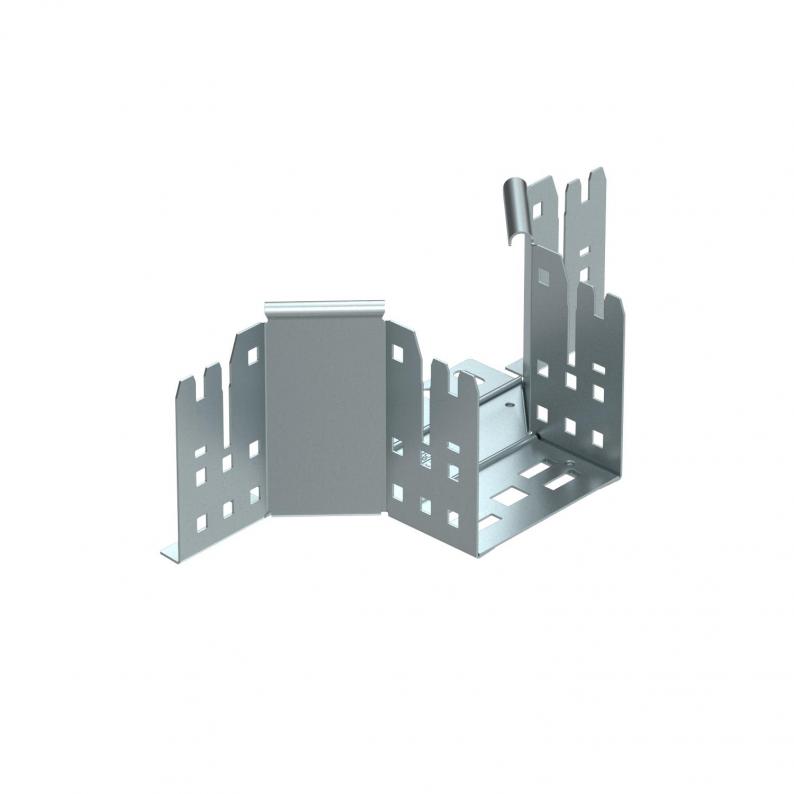

Add-on tee with quick connector system. For all cable tray types of 110 mm side height.
Technical data

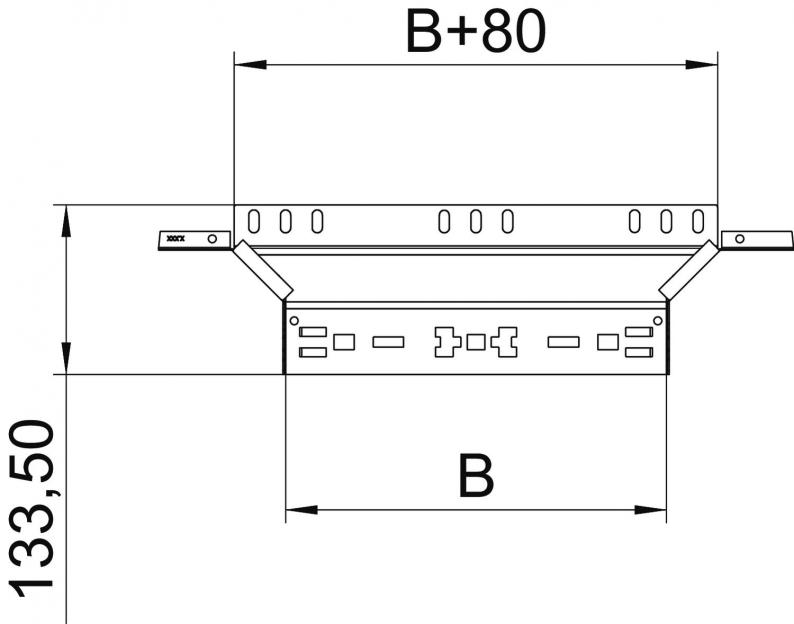

Dimensions
| Width | 100 mm |
|---|---|
| Height | 110 mm |
| Dimension B | 100 mm |
Technical data
| Maintain electrical functions | no |
|---|---|
| Connector version | Integrated connector |
| Wide-span version | no |
| Rustproof steel, pickled | no |
| Plate thickness | 1,25 mm |
| NATO hole pattern | no |
| Material thickness, floor plate | 1,25 mm |
| Bend (angle) | 90° |
| Change of direction | Horizontal |
| ROHS-conformant | yes |
| Rail thickness | 1,25 mm |
| Dimension | 110x100 |
| Surface | Strip galvanised |
| Material | Steel |
| Type of connector, cable support system | Click fastening |
Downloads
0 selected
Data sheet (1)
Catalogues & Flyers (2)
Declarations (4)
Instructions and Aid (1)
Product images (2)
3D data downloads (1)
Tender specifications (1)
Variants
Type
Width
Item no.
RAAM 110 FS
100
6041920
RAAM 130 FS
300
6041924
Width
RAAM 110 FS
Item no.
6041920
Width
100
RAAM 130 FS
Item no.
6041924
Width
300
