Modul 45connect® connector
Type VB-SKS S
|Item no. 6117198
|EAN 4012195438113
Item no. / Type
6117198 / VB-SKS S
Smallest selling unit: 10 piece
10piece
piece
Description

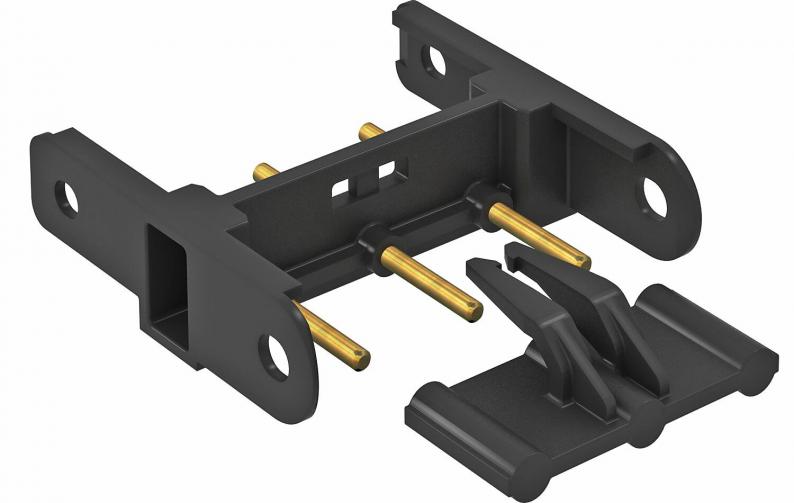

Connection adapter for combining STD-D0C / STD-D3C or STD-F0C / STD-F3C sockets.
Note: Socket combinations with two connection adapters at most are permitted.
Note: Socket combinations with two connection adapters at most are permitted.
Technical data

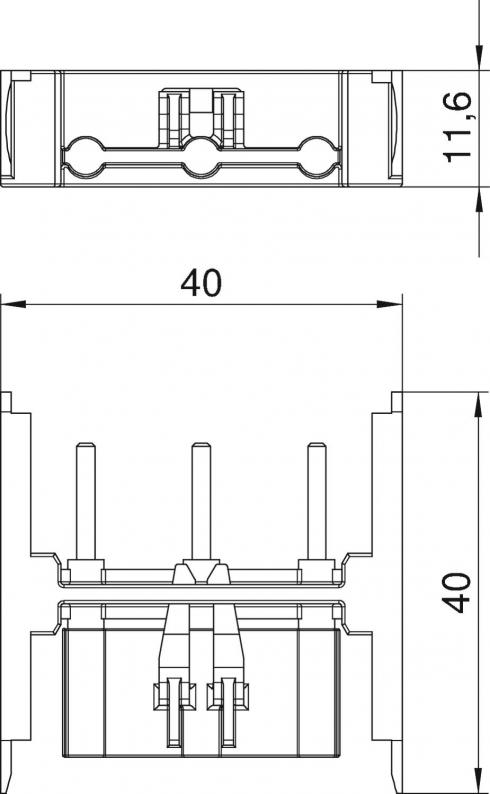

Dimensions
| Width | 40 mm |
|---|---|
| Height | 11,6 mm |
Technical data
| Hinged cover | no |
|---|---|
| Astro Programı | no |
| Jeneratör | no |
| Halojen İçermez | yes |
| Nominal current | 16 A |
| Anma gerilimi | 250 V |
| Closable | no |
| Ejection mechanism | no |
| Surge protection | no |
| With fine-wire fuse | no |
| With on/off switch | no |
| Depth | 40 mm |
| Transparent | no |
| With functional lighting | no |
| With orientation lighting | no |
| With integrated USB power supply | no |
| Insulated installation | no |
| Material | Polyamide |
| Colour | Black |
Environmental Data
| Packaging made completely from recycled cardboard. | yes |
|---|
| CO2 ayak izi (GWP) beşikten kapıya | 0,0307 kg CO2e / 1 Piece |
|---|
