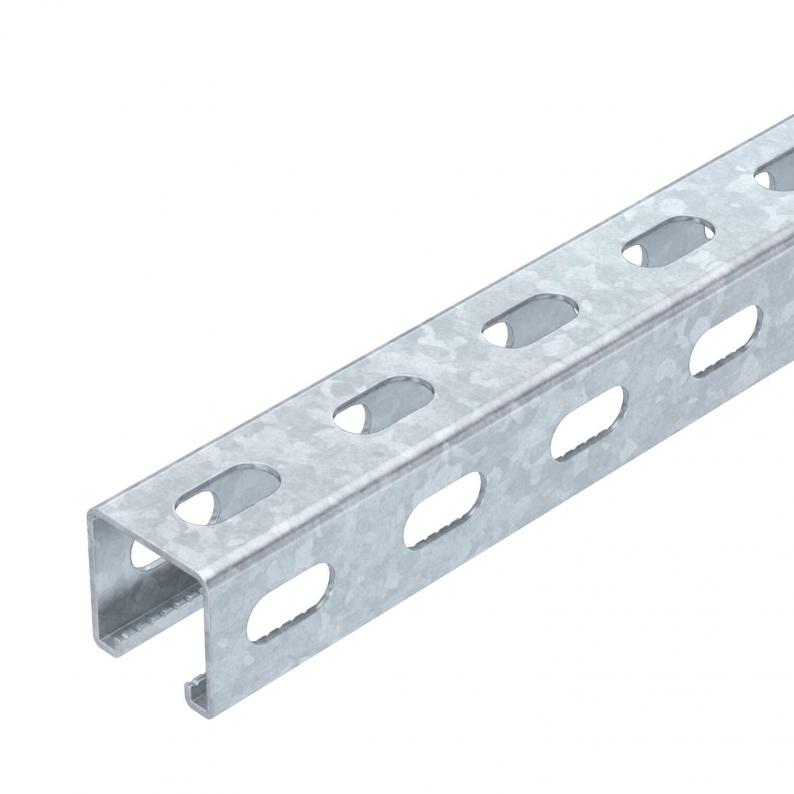

MS4141 mounting rail, slot width 22 mm, FT, side perforation

MS4141 mounting rail, slot width 22 mm, FT, side perforation

Type MSL4141PP1000FT
|
Item no. 1123001
|
EAN 4012195697862
Show all variants
Item no. / Type
Length
Width
Height
Material thickness

Smallest selling unit: 1 m

m

Description

Heavy-duty C profile rail for individual installation of support constructions, e.g. for cable trays or as a panel for switchgear cabinets. Can also be used for cable routing, in conjunction with clamp clips with a U foot.
  • Communautés Européennes, AB Yönetmelikleri uyarınca AB Uygunluk Beyanı
  • Clamp clip for C profile rail, slot width 18–22 mm
  • Yarık uzunluğu 22 mm
  • Fonksiyon koruma sınıfı E30
  • Fonksiyon koruma sınıfı E90
  • CO₂ footprint (PCF)

Technical data

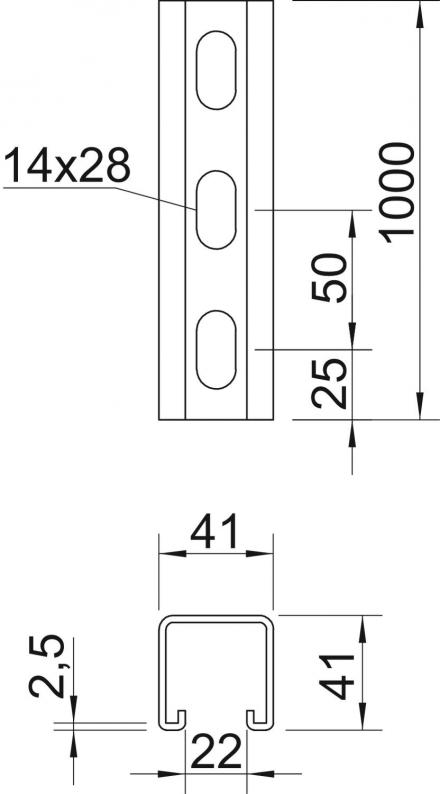

Dimensions

Length1000 mm
Width41 mm
Height41 mm
Dimension L1000 mm

Technical data

Maintain electrical functionsevet
Yarık uzunluğu22 mm
Material thickness2 mm
Statik değer A2,01 cm²
Statik değer Iy5,13 cm⁴
Statik değer Iz5,88 cm⁴
Statik değer Wy2,49 cm³
Statik değer Wz2,88 cm³
Hole size14x28
Profile shapeC profil
Delik türü3 tarafı delikli
Drill hole spacing, centre50 mm
With perforationevet
Breakablehayır
With toothingevet
Version forTekli profil
Boyut1000x41x41
SurfaceHot-dip galvanised
MaterialSteel

Environmental Data

CO2 ayak izi (GWP) beşikten kapıya4,355 kg CO2e / 1 Metre

Accessories

System accessories

Item no. 1147214

Slide nut ZL
Type
MS41SN M10 ZL

Smallest selling unit: 50 piece

piece

Item no. 1148322

Hammer-head bolt ZL
Type
MS41HB M10x30 ZL

Smallest selling unit: 50 piece

piece

Type
2056U 22 FT

Smallest selling unit: 100 piece

piece

Downloads

0 selected

Data sheet (1)
Catalogues & Flyers (1)
Declarations (4)
Product images (3)
3D data downloads (1)
Tender specifications (1)

Variants

Length
MSL4141PP1000FT
Item no.
1123001
Length
1000
Width
41
Height
41
Material thickness
2
Surface
Hot-dip galvanised
MSL4141PP3000FT
Item no.
1123003
Length
3000
Width
41
Height
41
Material thickness
2
Surface
Hot-dip galvanised
MSL4141PP6000FT
Item no.
1123005
Length
6000
Width
41
Height
41
Material thickness
2
Surface
Hot-dip galvanised
