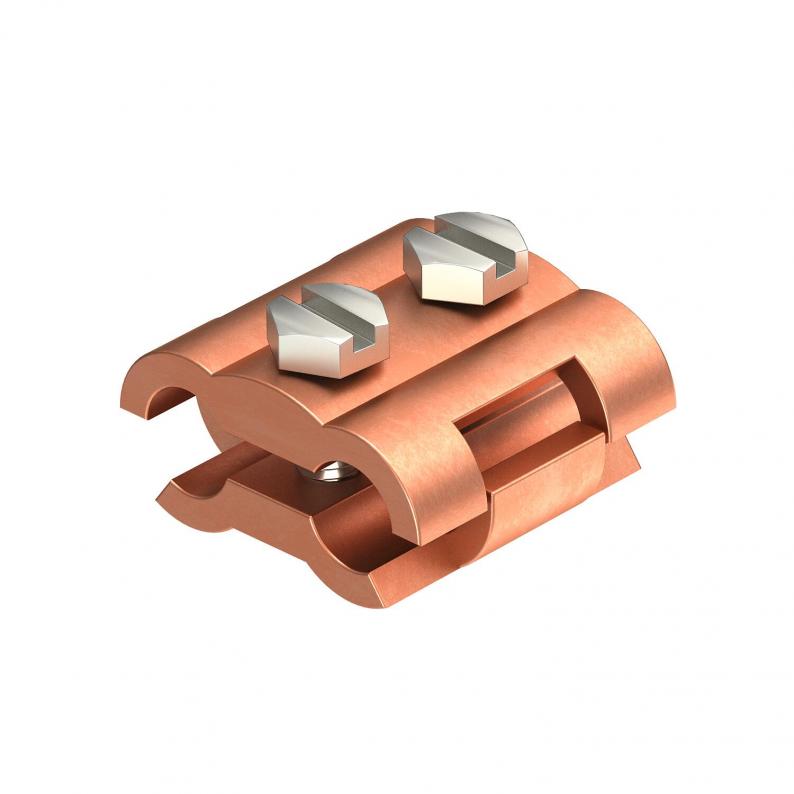

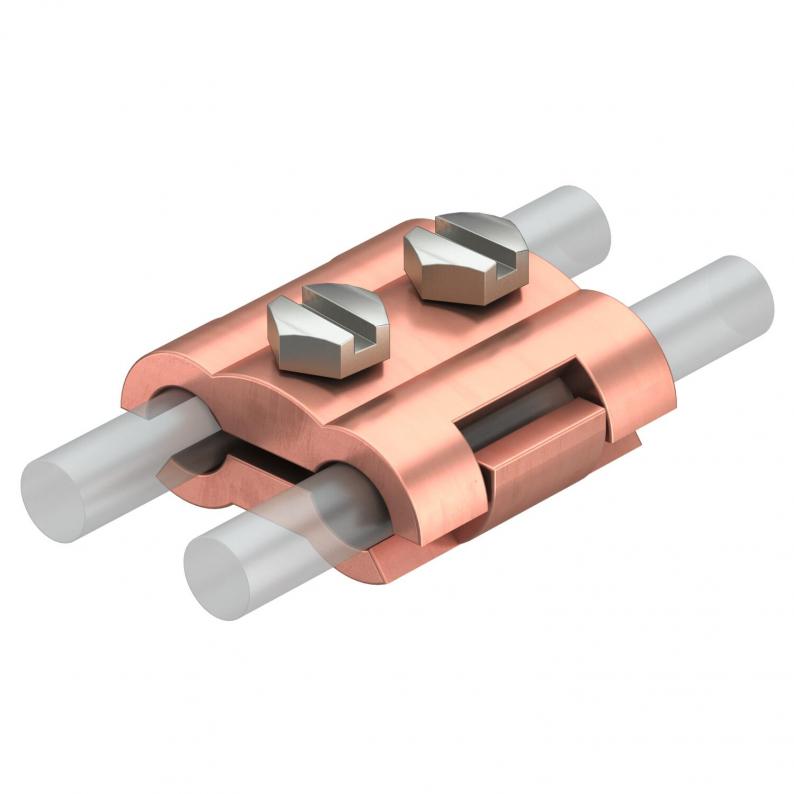

Parallel connector Rd 6−10 mm, M6 x 20
Type 260 8-10 MS
|Item no. 5315654
|EAN 4012195419778
Item no. / Type
5315654 / 260 8-10 MS
Uyumluluk
Rd 6-10 mm
Smallest selling unit: 50 piece
50piece
piece
Description
• With 2 hexagonal bolts M6 x 20 made of stainless steel (V2A)
Technical data
Technical data
| Ayırma plakası | no |
|---|---|
| Type of fastening screw | Hexagonal bolt |
| Type of connector | Parallel connector |
| Suitable for connection | Round conductor Rd 6–10 / Rd 6–10 |
| Lightning current carrying capacity | N/50 kA |
| Round conductor diameter, conductor 1, min. | 6 mm |
| Round conductor diameter, conductor 1, max. | 10 mm |
| Round conductor diameter, conductor 2, min. | 6 mm |
| Round conductor diameter, conductor 2, max. | 10 mm |
| Uyumluluk | Rd 6-10 mm |
| Boyut | 8/8mm |
| Surface | Copper-plated |
| Material | Brass |
Environmental Data
| CO2 ayak izi (GWP) beşikten kapıya | 0,0666 kg CO2e / 1 Piece |
|---|
