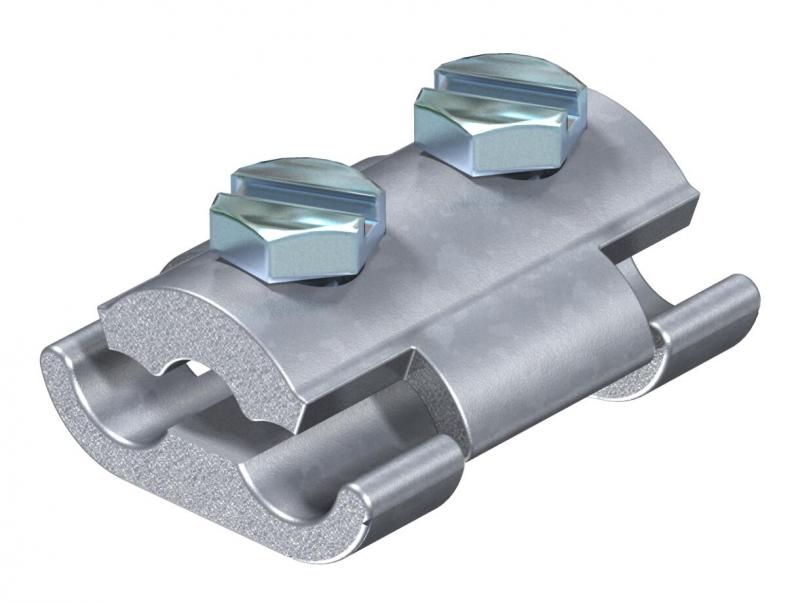

Parallel connector Rd 8−10 mm, M8 x 25
Type 259 8-10
|Item no. 5315506
|EAN 4012195419716
Item no. / Type
5315506 / 259 8-10
Uyumluluk
Rd 8-10 mm
Smallest selling unit: 25 piece
25piece
piece
Description
• With two M8 x 25 hexagonal screws made of steel, zinc/nickel-coated
Technical data
Technical data
| Ayırma plakası | no |
|---|---|
| Type of fastening screw | Hexagonal bolt |
| Type of connector | Parallel connector |
| Suitable for connection | Round conductor Rd 8–10 / Rd 8–10 |
| Lightning current carrying capacity | N/50 kA |
| Round conductor diameter, conductor 1, min. | 8 mm |
| Round conductor diameter, conductor 1, max. | 10 mm |
| Round conductor diameter, conductor 2, min. | 8 mm |
| Round conductor diameter, conductor 2, max. | 10 mm |
| Uyumluluk | Rd 8-10 mm |
| Boyut | 8-10mm |
| Surface | Zinc / nickel coated |
| Material | Cast steel |
Environmental Data
| CO2 ayak izi (GWP) beşikten kapıya | 0,0597 kg CO2e / 1 Piece |
|---|
