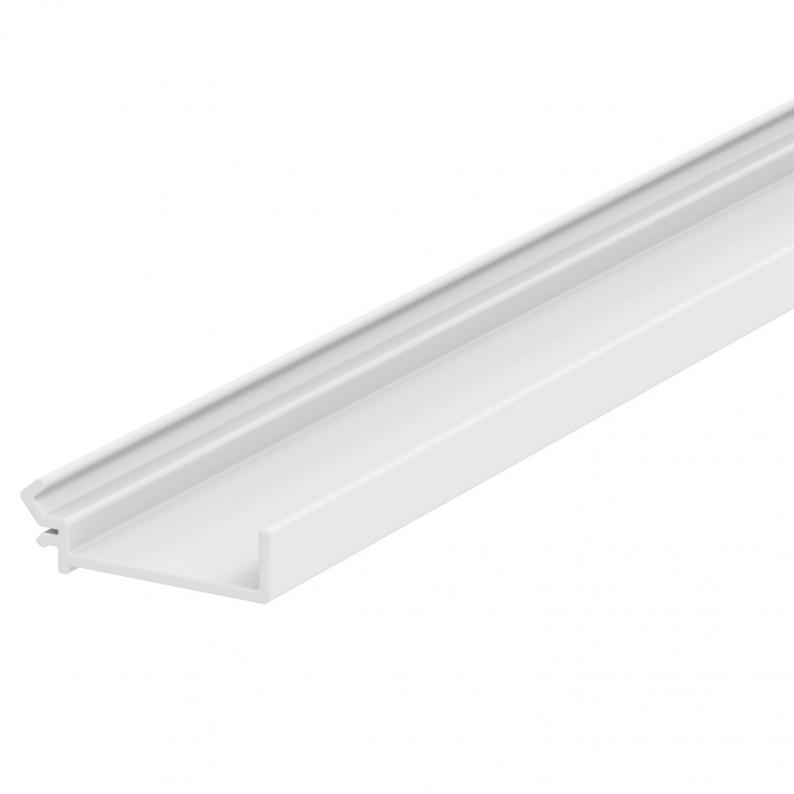

Partition GK-TW53
Type GK-TW53
|Item no. 6113290
|EAN 4012196419685
Item no. / Type
6113290 / GK-TW53
Length
2000 mm
Uygun kanal derinliği
53
Smallest selling unit: 2 m
2m
m
Description
Partition for mounting in Rapid 45-2 GK and GA device installation trunking for installing cables of different voltage levels.
Technical data

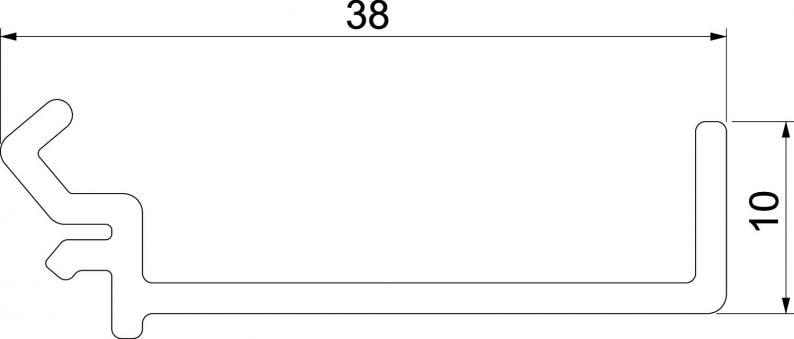

Dimensions
| Length | 2000 mm |
|---|---|
| Width | 10 mm |
| Height | 38 mm |
Technical data
| Halojen İçermez | no |
|---|---|
| Uygun kanal derinliği | 53 |
| Koruma sınıfı | IP40 |
| Protection rating IK code | IK08 |
| Fastening type | Plug-in |
| Version for | Single |
| Kullanılabilir sıcaklık aralığı min. | -15 °C |
| Kullanılabilir sıcaklık aralığı maks. | 60 °C |
| Boyut | 38x13x2000 |
| Material | Polyvinylchloride |
| Colour | Light grey; RAL 7035 |
Environmental Data
| Packaging made completely from recycled cardboard. | yes |
|---|---|
| Packaging without plastic | yes |
| CO2 ayak izi (GWP) beşikten kapıya | 0,302 kg CO2e / 1 Meter |
|---|
